Magnetic Clutch Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the illustration.

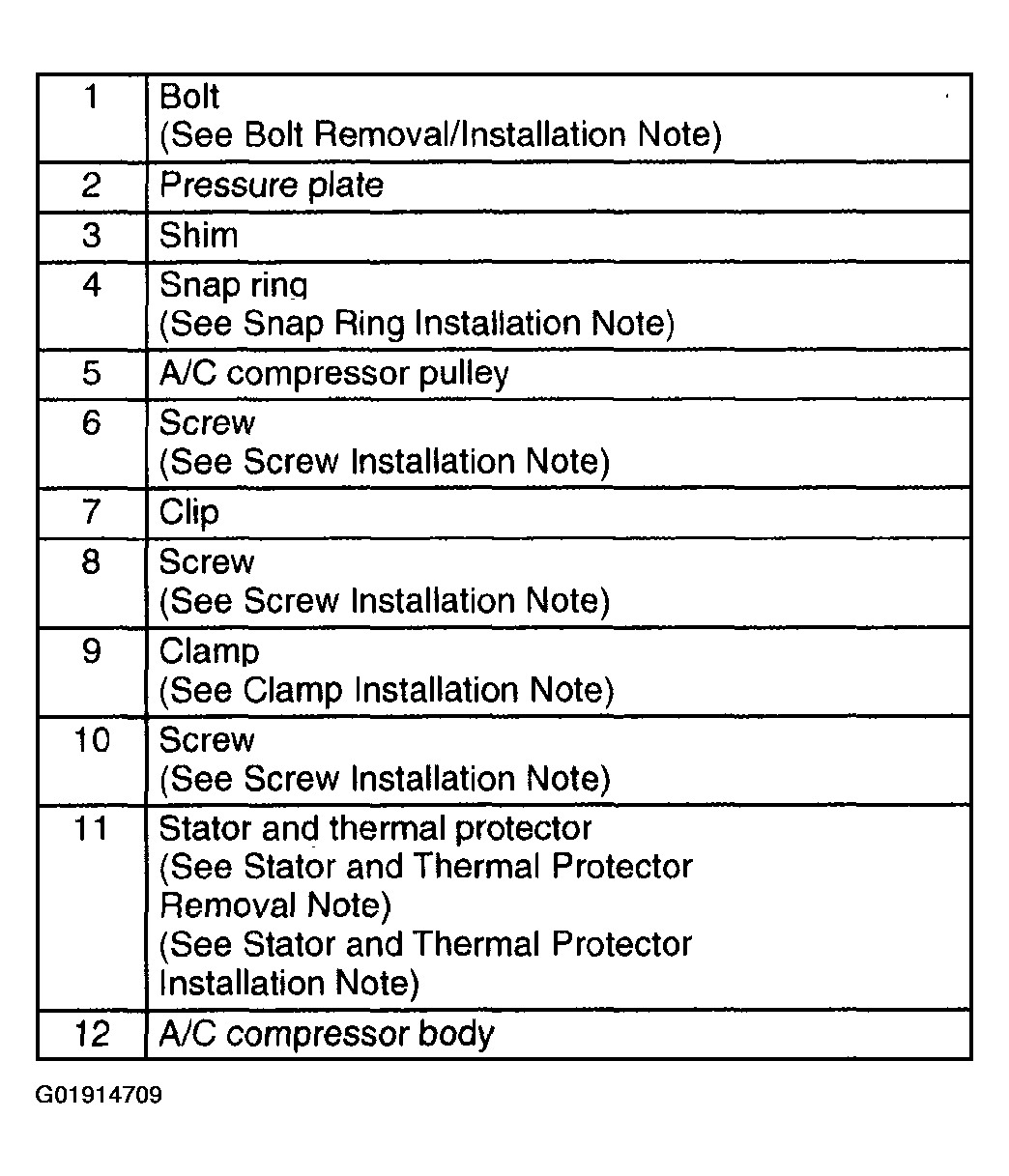

Fig 1: Magnetic Clutch Disassembling Order Chart
Courtesy of MAZDA MOTORS CORP.

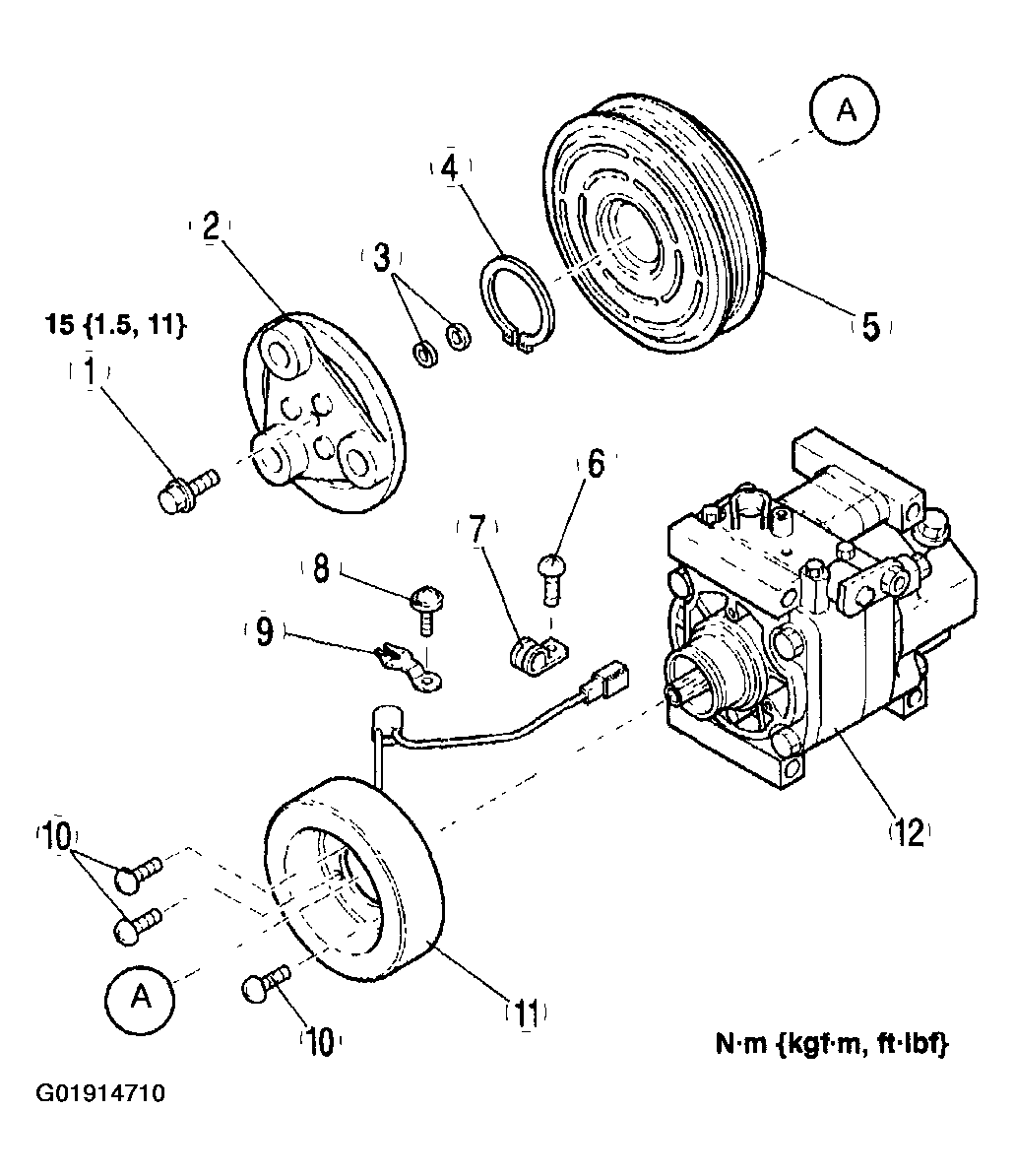

Fig 2: Disassembling Magnetic Clutch Components
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
