Mazda
›
2003
›
Tribute ES, FWD
›
Repair and Diagnosis
›
Suspension
›
Wheel Alignment
›
Technical Data (Suspension)
›
Specifications
›
Front Alignment Specifications
Front Alignment Specifications

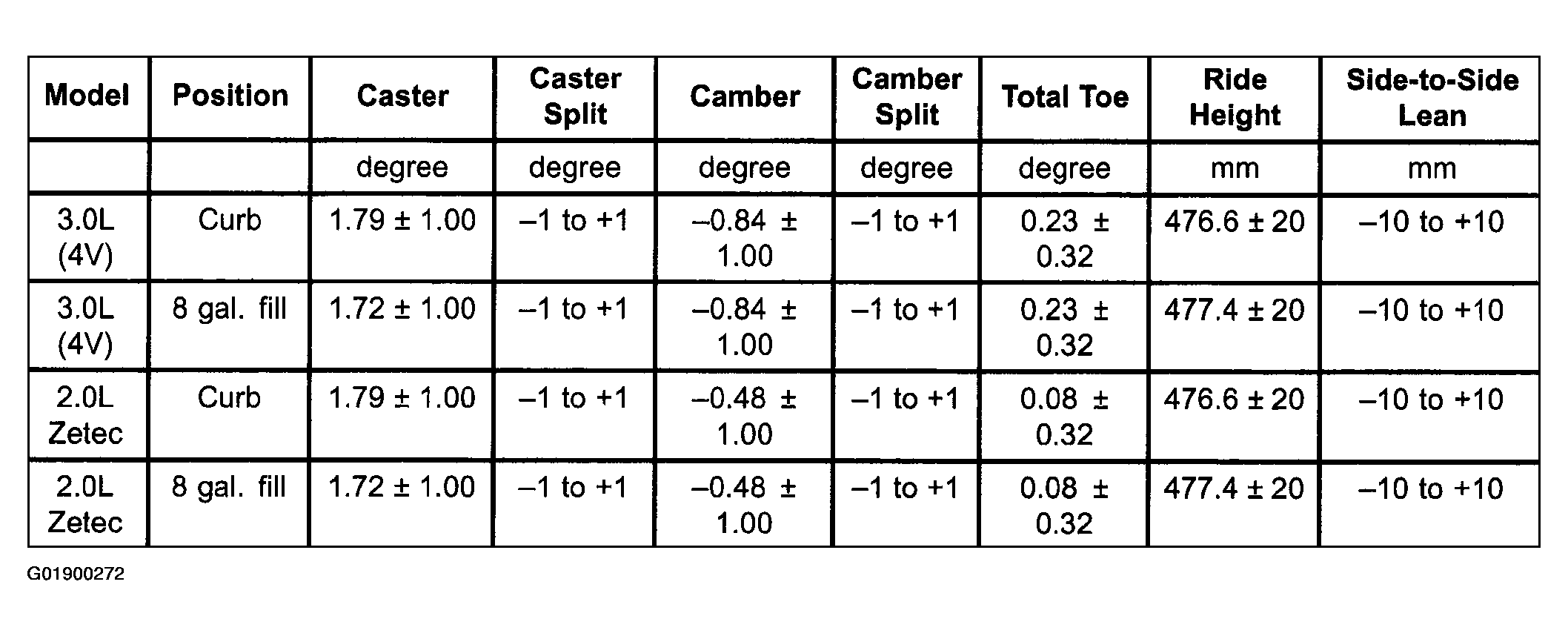

Fig 1: Front Alignment Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
