Specifications
›
Rear Alignment Specifications
Rear Alignment Specifications

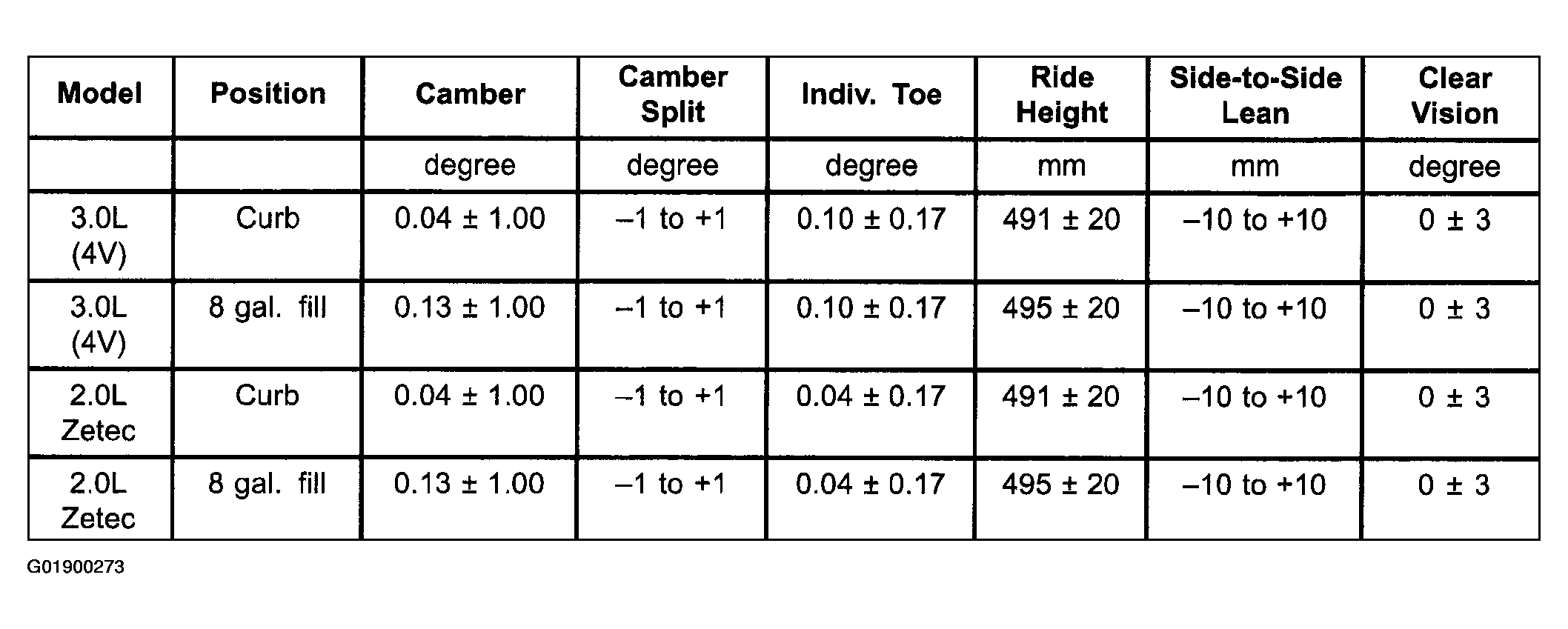

Fig 1: Rear Alignment Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
