Removal and Installation

Remove the air bag sliding contact (clockspring). Refer to AIR BAG RESTRAINT SYSTEMS
Remove the multifunction switch. Refer to STEERING COLUMN MULTIFUNCTION SWITCH .
Remove the windshield wiper/washer switch. Refer to WINDSHIELD WIPER/WASHER SWITCH .

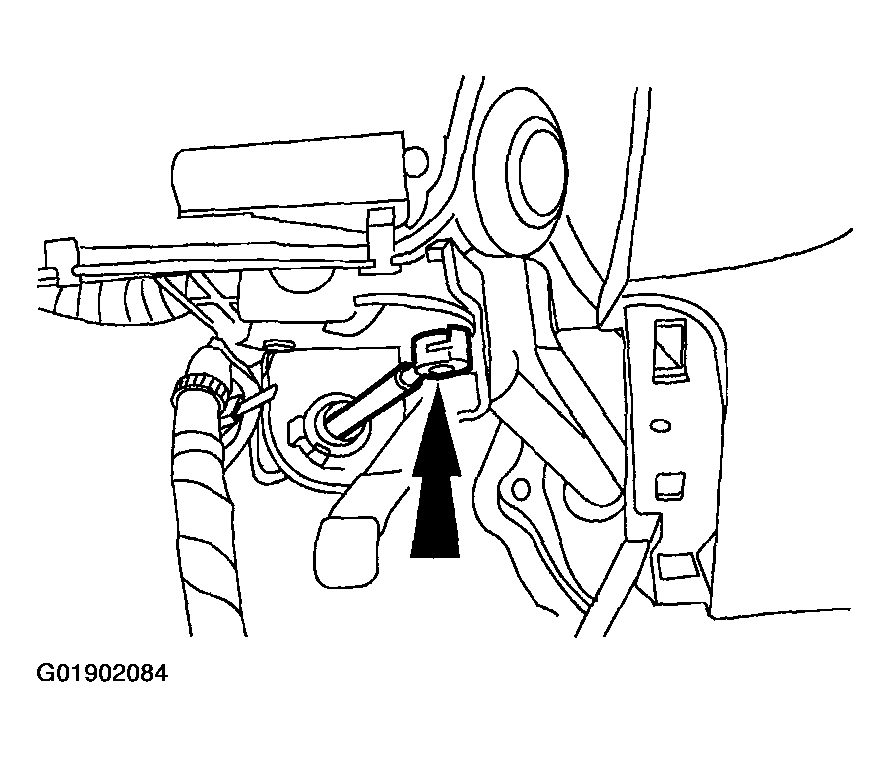

Fig 1: Disconnecting Gearshift Cable
Courtesy of MAZDA MOTORS CORP.
Disconnect the gearshift cable.

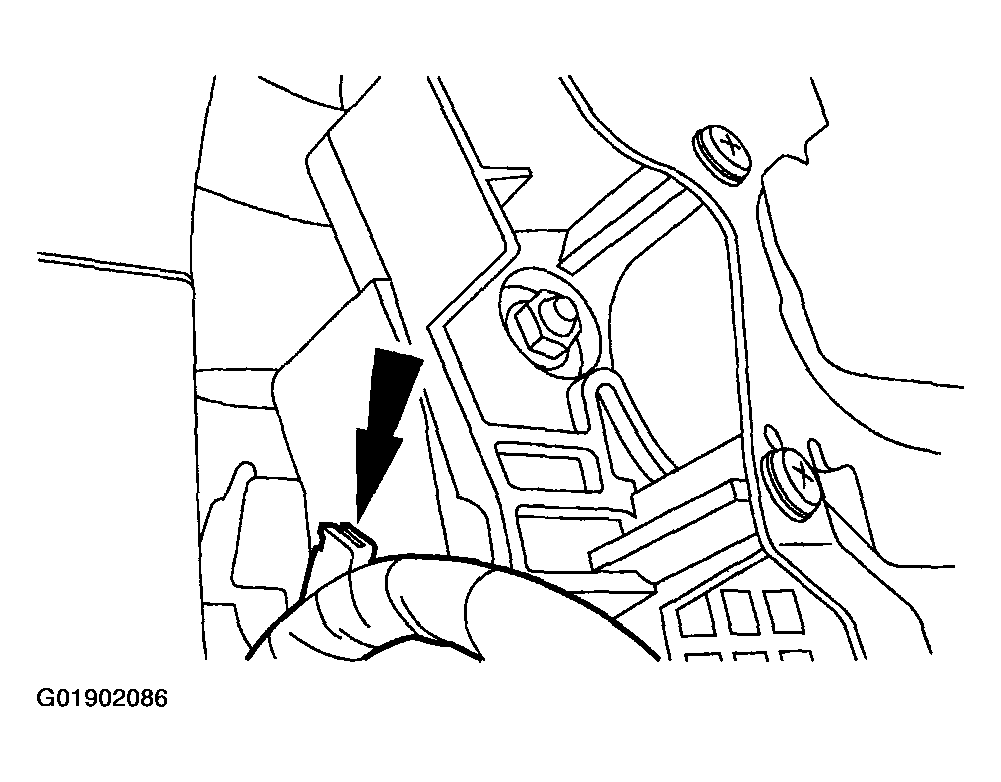

Fig 2: Disconnecting Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical connector.

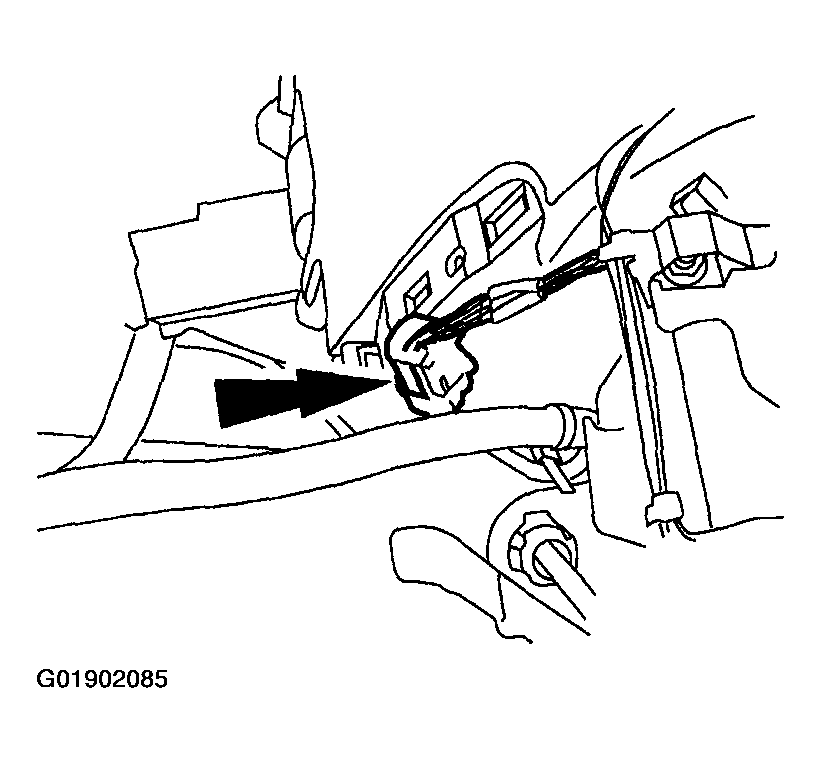

Fig 3: Removing Bolts And Gearshift Lever Assembly
Courtesy of MAZDA MOTORS CORP.
Disconnect the wiring harness from the gear shifter assembly.

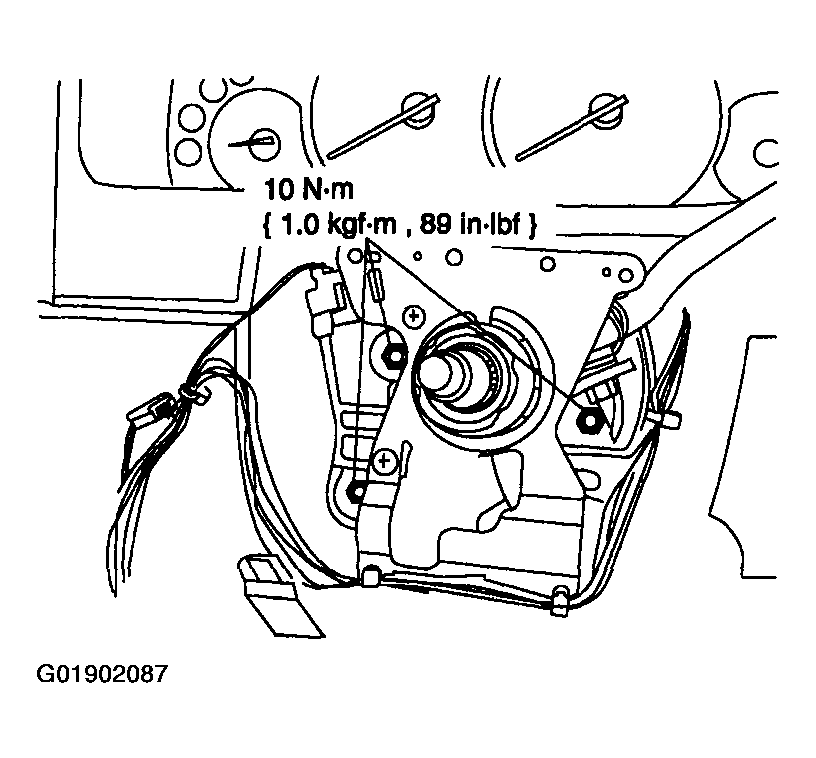

Fig 4: Removing Bolts And Gearshift Lever Assembly

Courtesy of MAZDA MOTORS CORP.
