Symptom Troubleshooting - Transmission
›
Symptom Troubleshooting Chart - Automatic Transaxle Cooling
Symptom Troubleshooting Chart - Automatic Transaxle Cooling

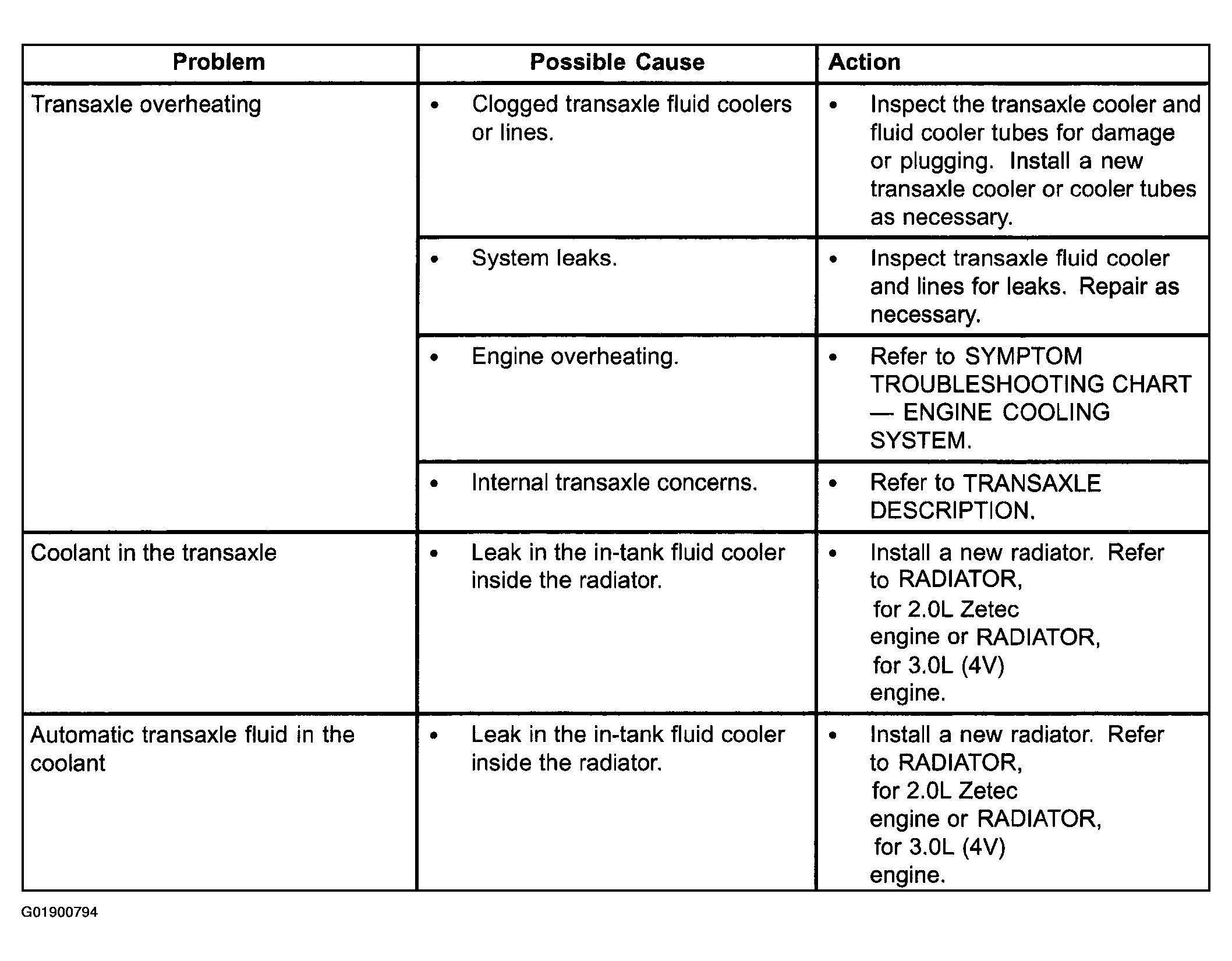

Fig 1: Symptom Troubleshooting Chart - Automatic Transaxle Cooling
Courtesy of MAZDA MOTORS CORP.
