Symptom Troubleshooting - Transmission
›
Symptom Troubleshooting Chart - Clutch
›
Notes
Symptom Troubleshooting Chart - Clutch: Notes

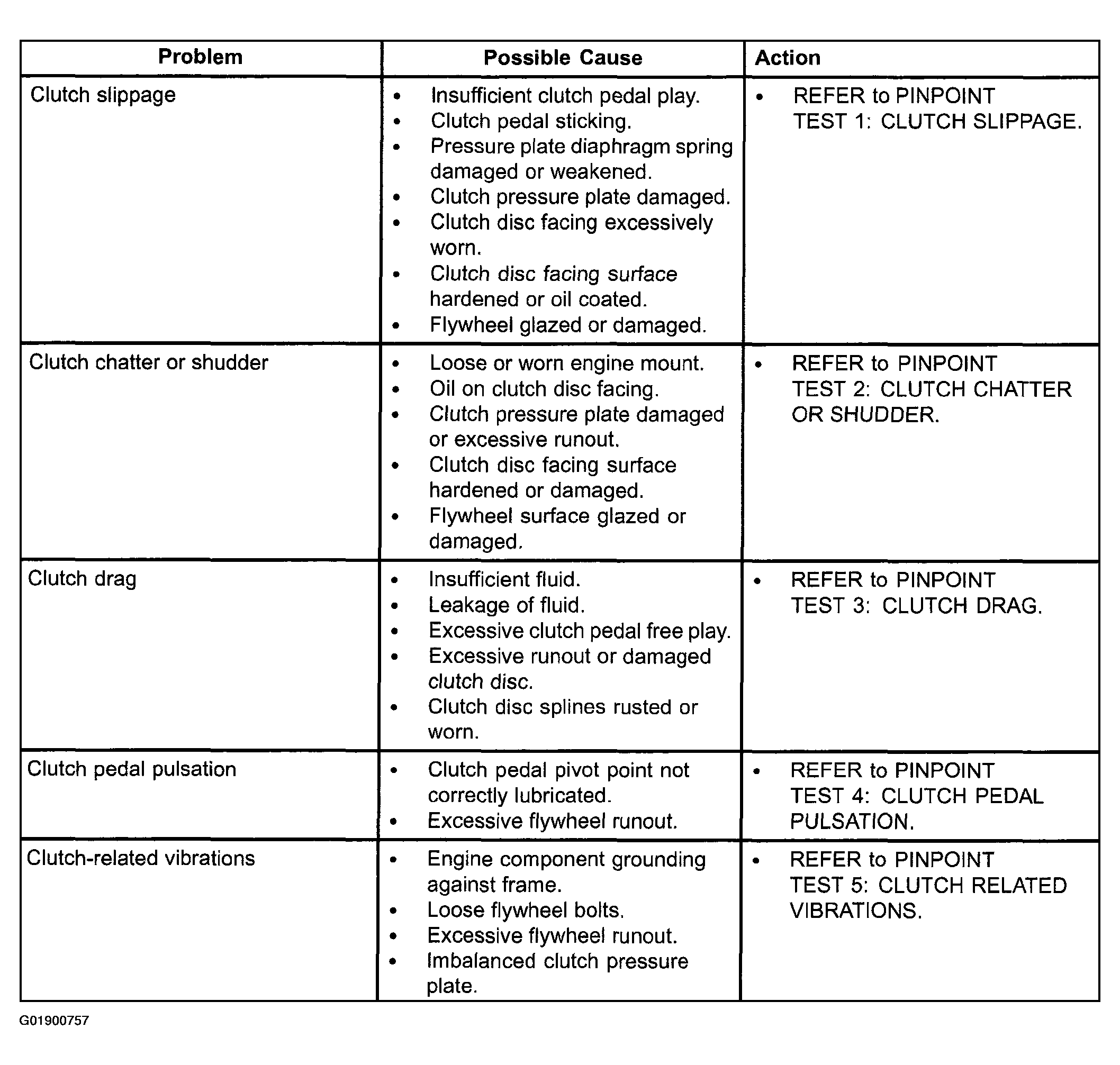

Fig 1: Symptom Troubleshooting Chart - Clutch (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

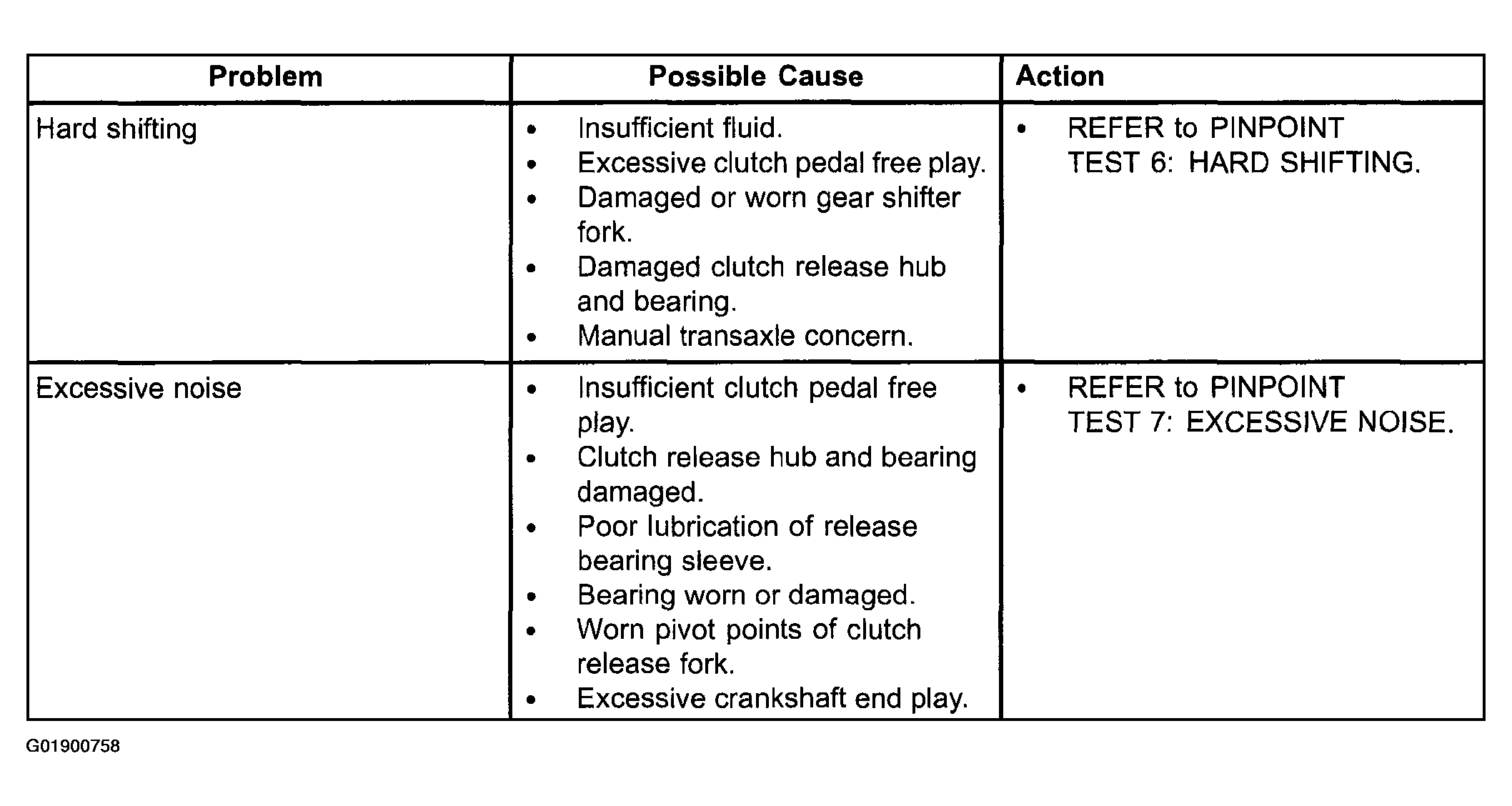

Fig 2: Symptom Troubleshooting Chart - Clutch (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
