Transaxle Fluid Temperature (TFT) Sensor

NOTE:

• Refer to DIAGNOSTIC STRATEGY  .

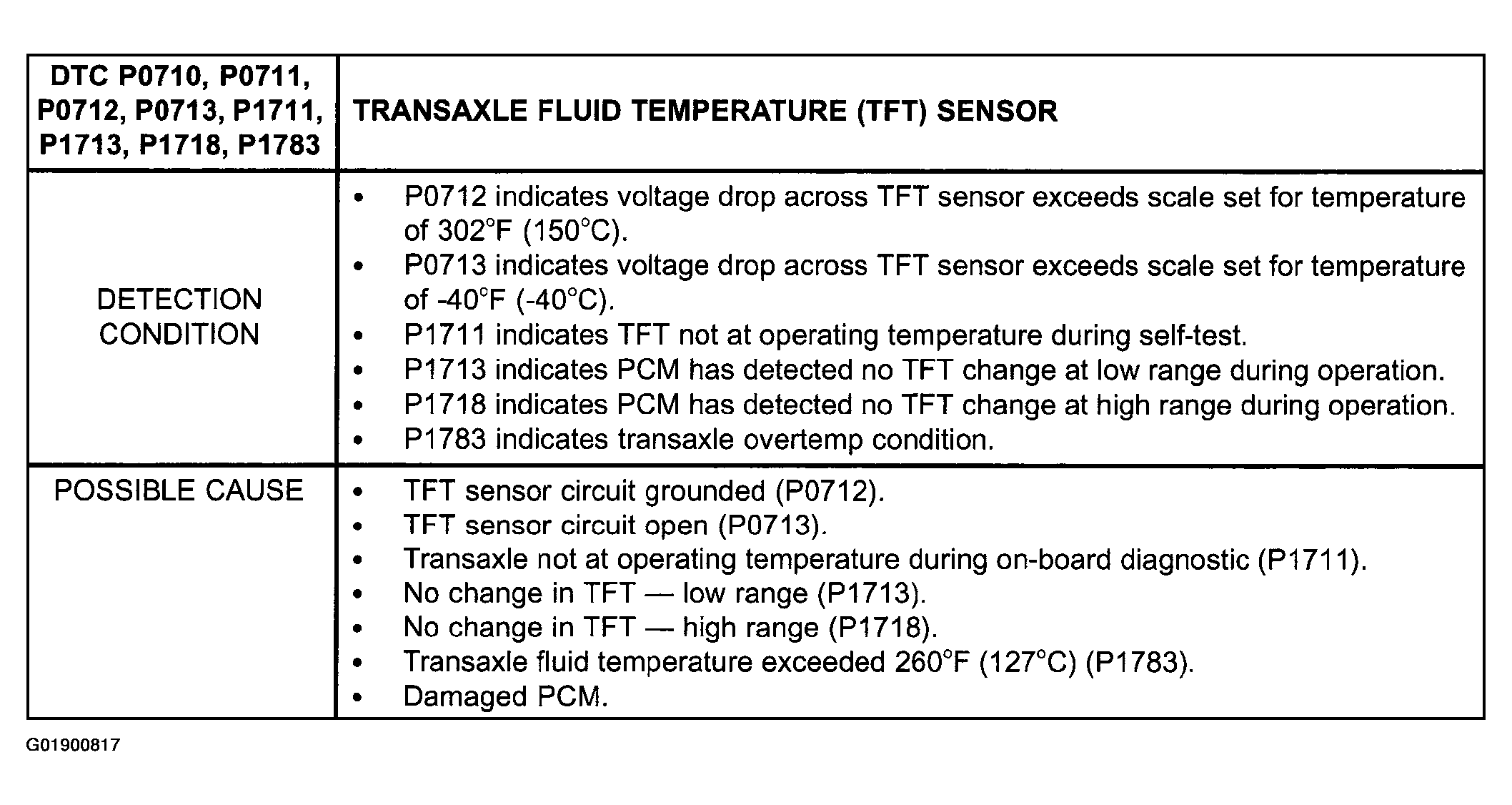

Fig 1: Transaxle Fluid Temperature (TFT) Sensor Possible Causes (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Transaxle Fluid Temperature (TFT) Sensor Test Procedure (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

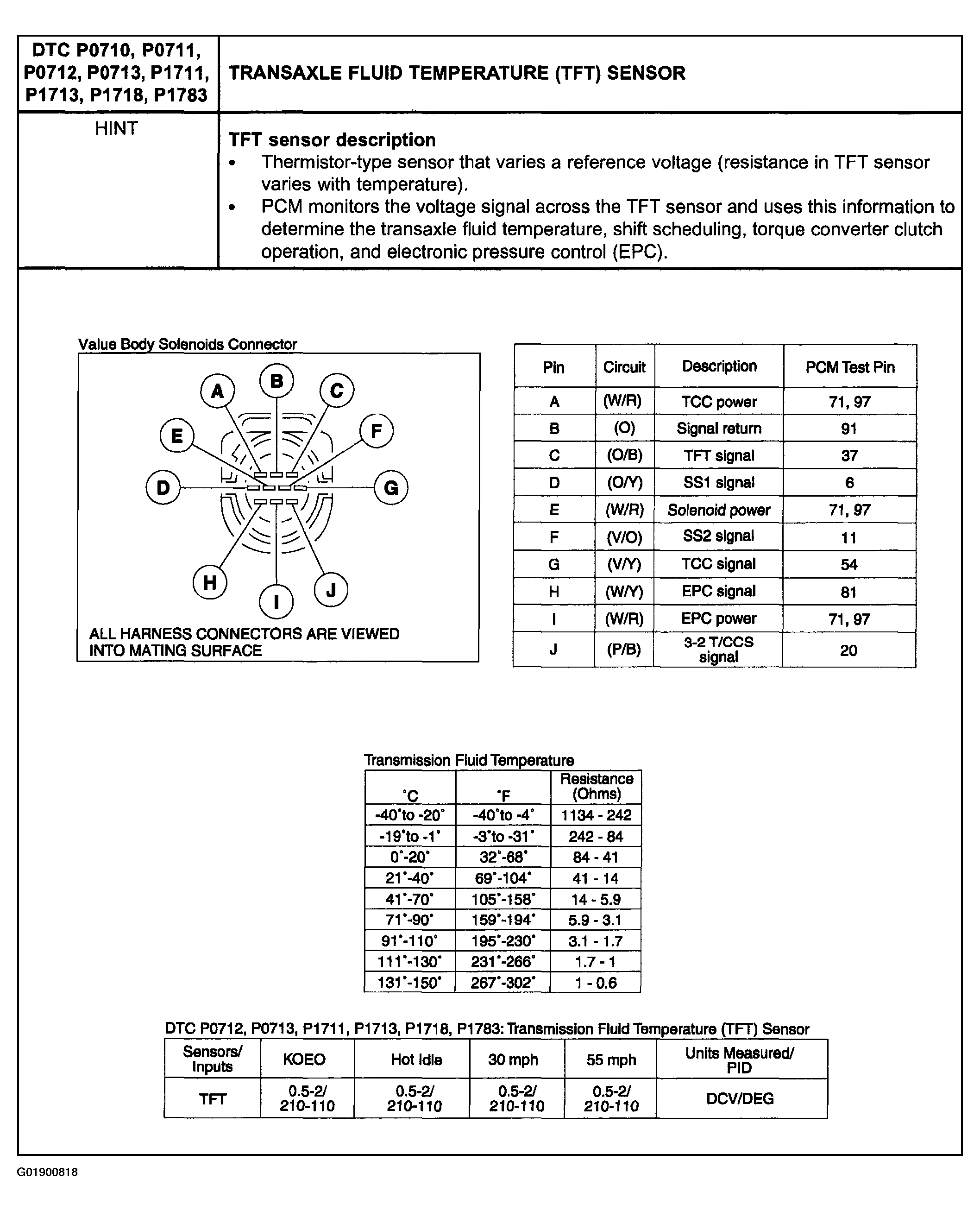

Fig 3: Transaxle Fluid Temperature (TFT) Sensor Test Procedure (Step 1)

Courtesy of MAZDA MOTORS CORP.

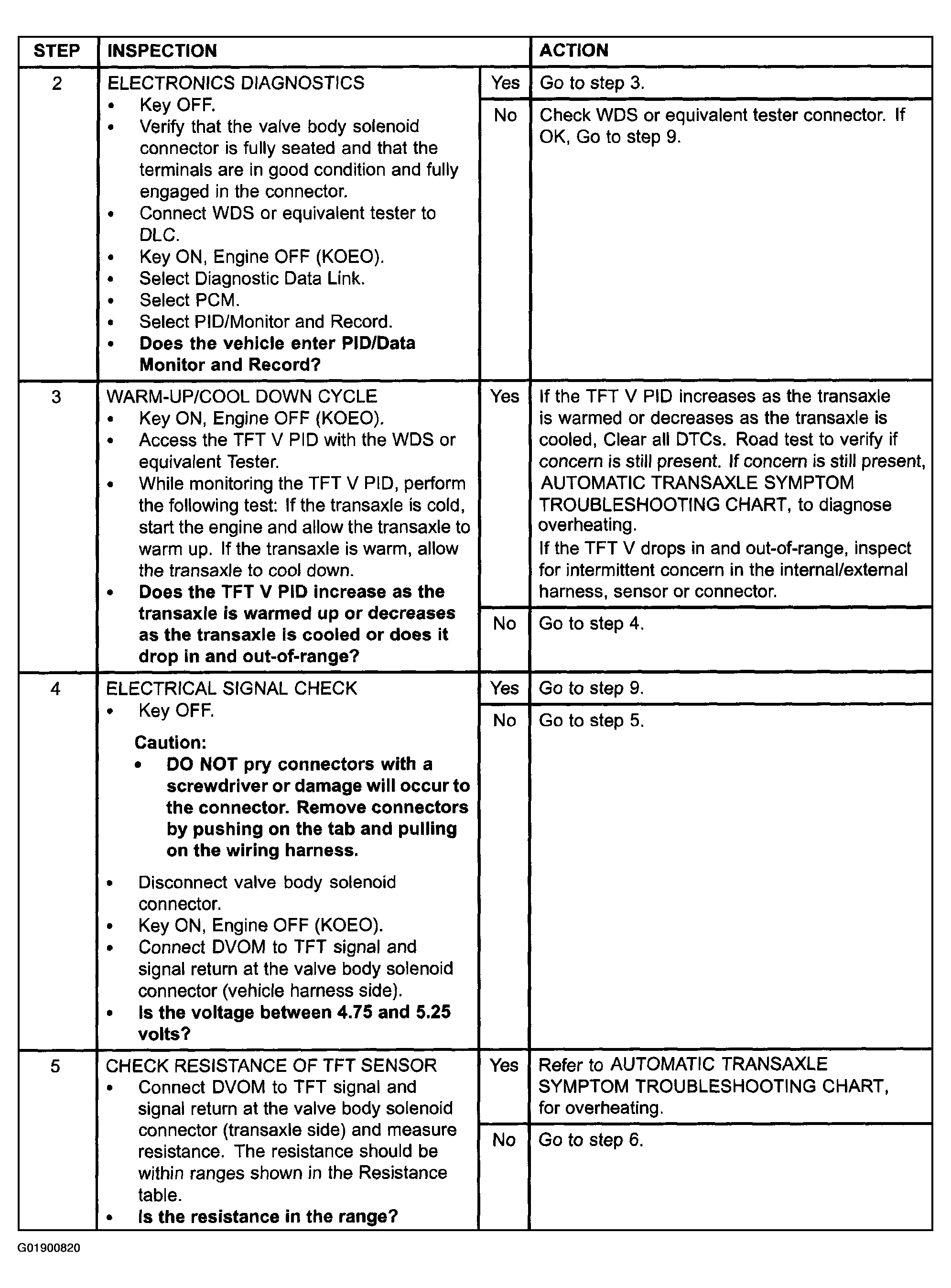

Fig 4: Transaxle Fluid Temperature (TFT) Sensor Test Procedure (Step 2-5)

Courtesy of MAZDA MOTORS CORP.

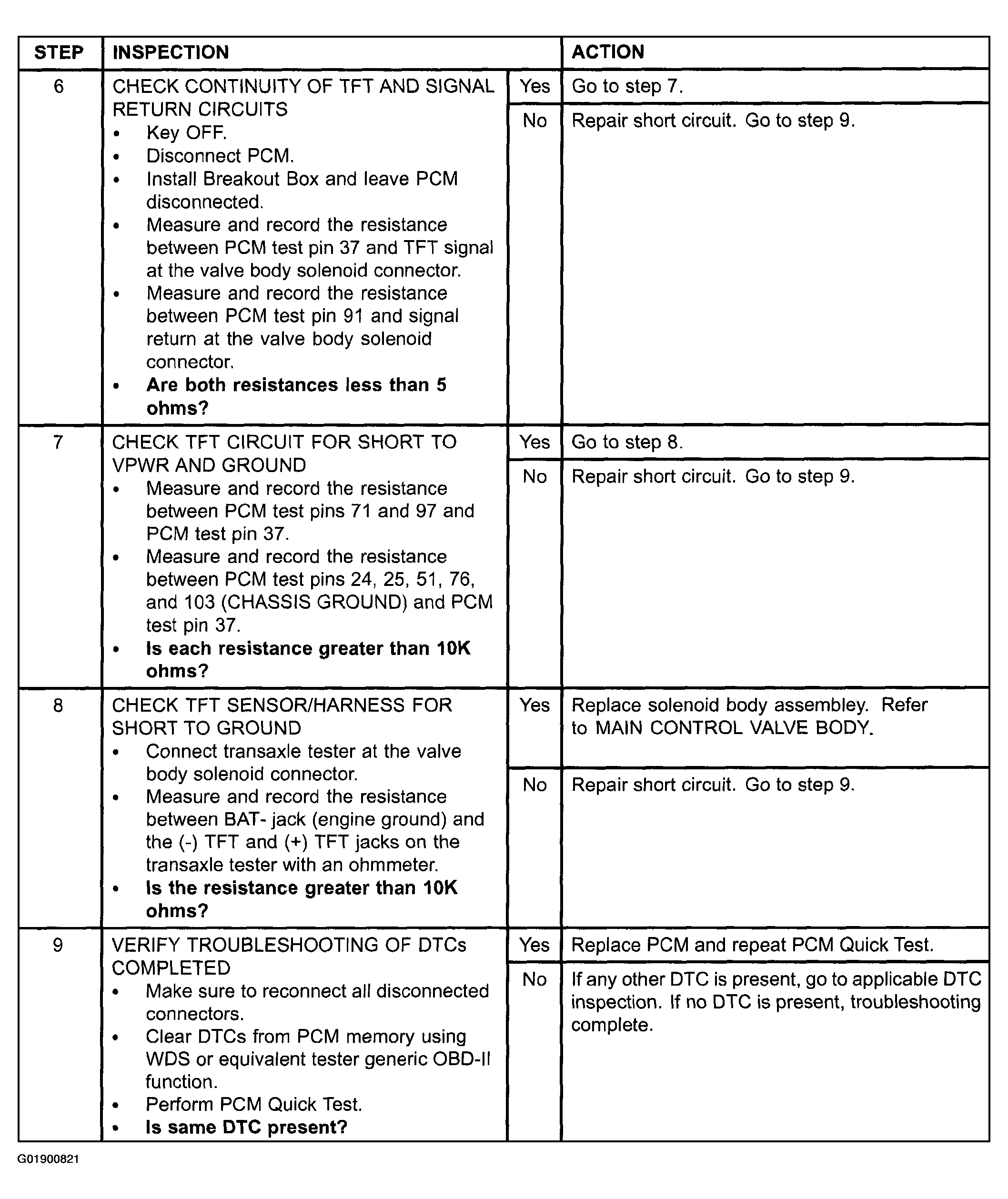

Fig 5: Transaxle Fluid Temperature (TFT) Sensor Test Procedure (Steps 6-9)

Courtesy of MAZDA MOTORS CORP.
