Diagnostic Flow Chart

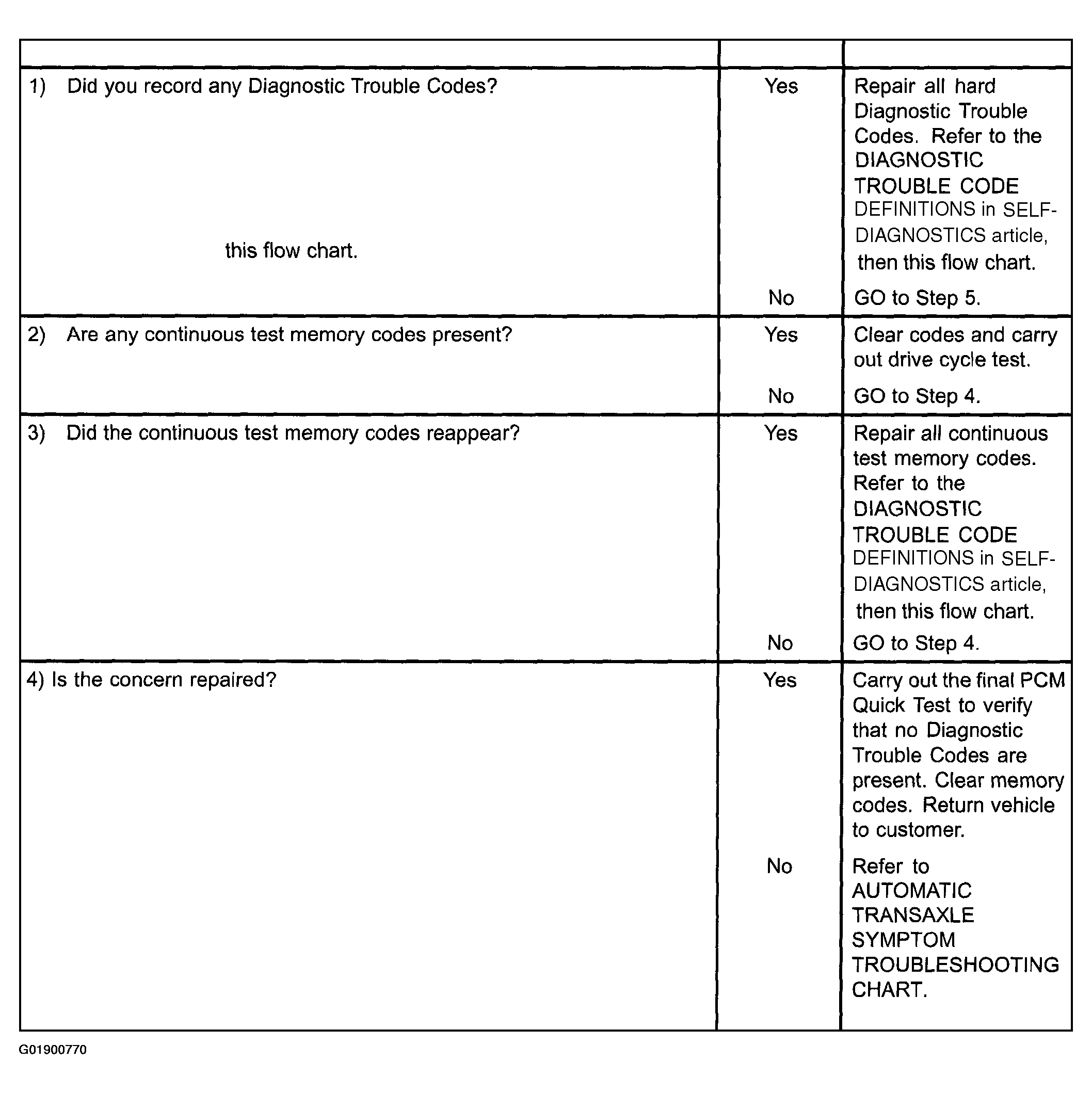

Fig 1: Diagnostic Chart (1 Of 2)
G01900770Courtesy of MAZDA MOTORS CORP.

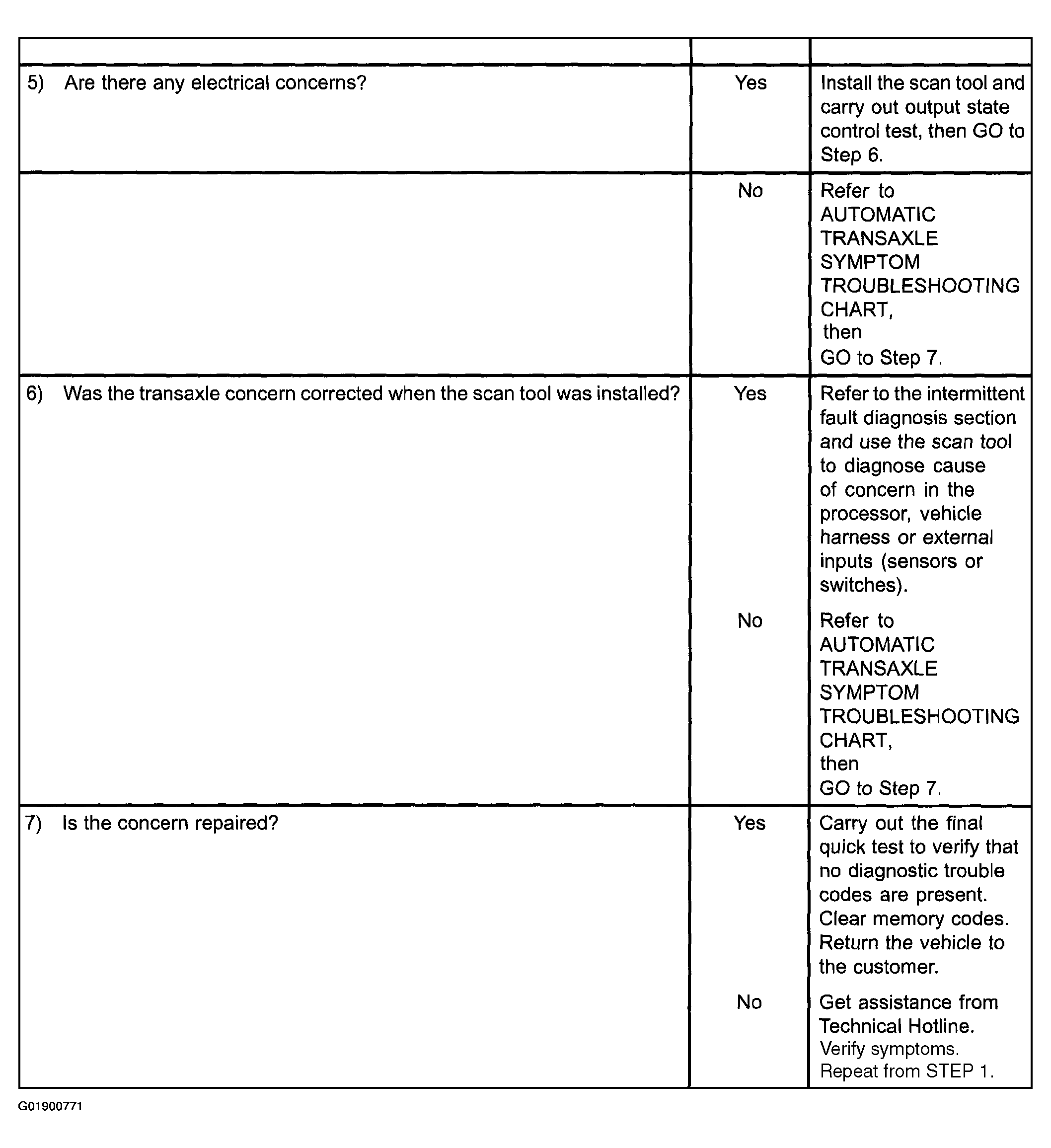

Fig 2: Diagnostic Chart (2 Of 2)
G01900771Courtesy of MAZDA MOTORS CORP.
