Diagnostic procedure

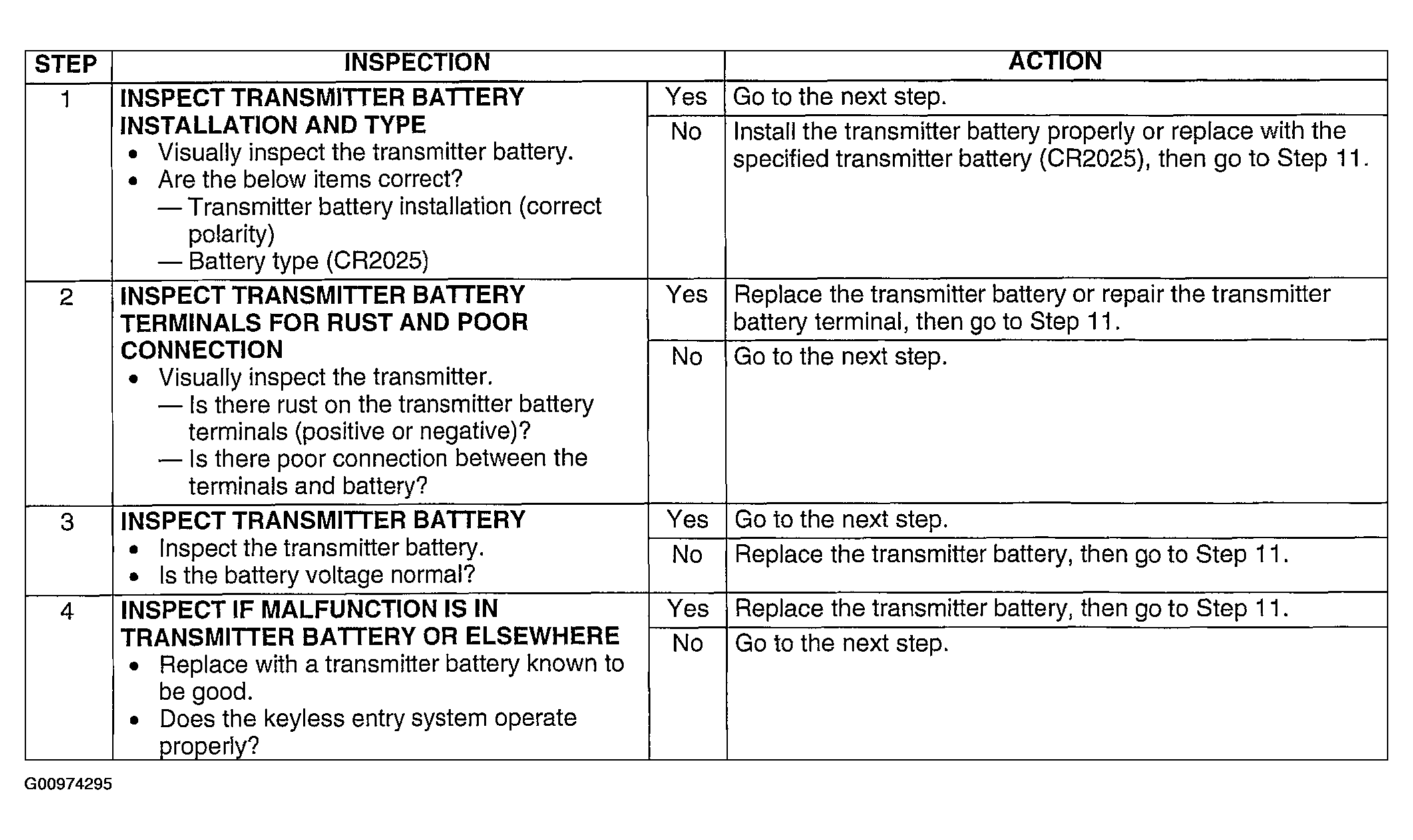

Fig 1: Diagnostic Procedure - Transmitter Id Code Cannot Be Reprogrammed (Steps 1-4)
G00974295Courtesy of MAZDA MOTORS CORP.

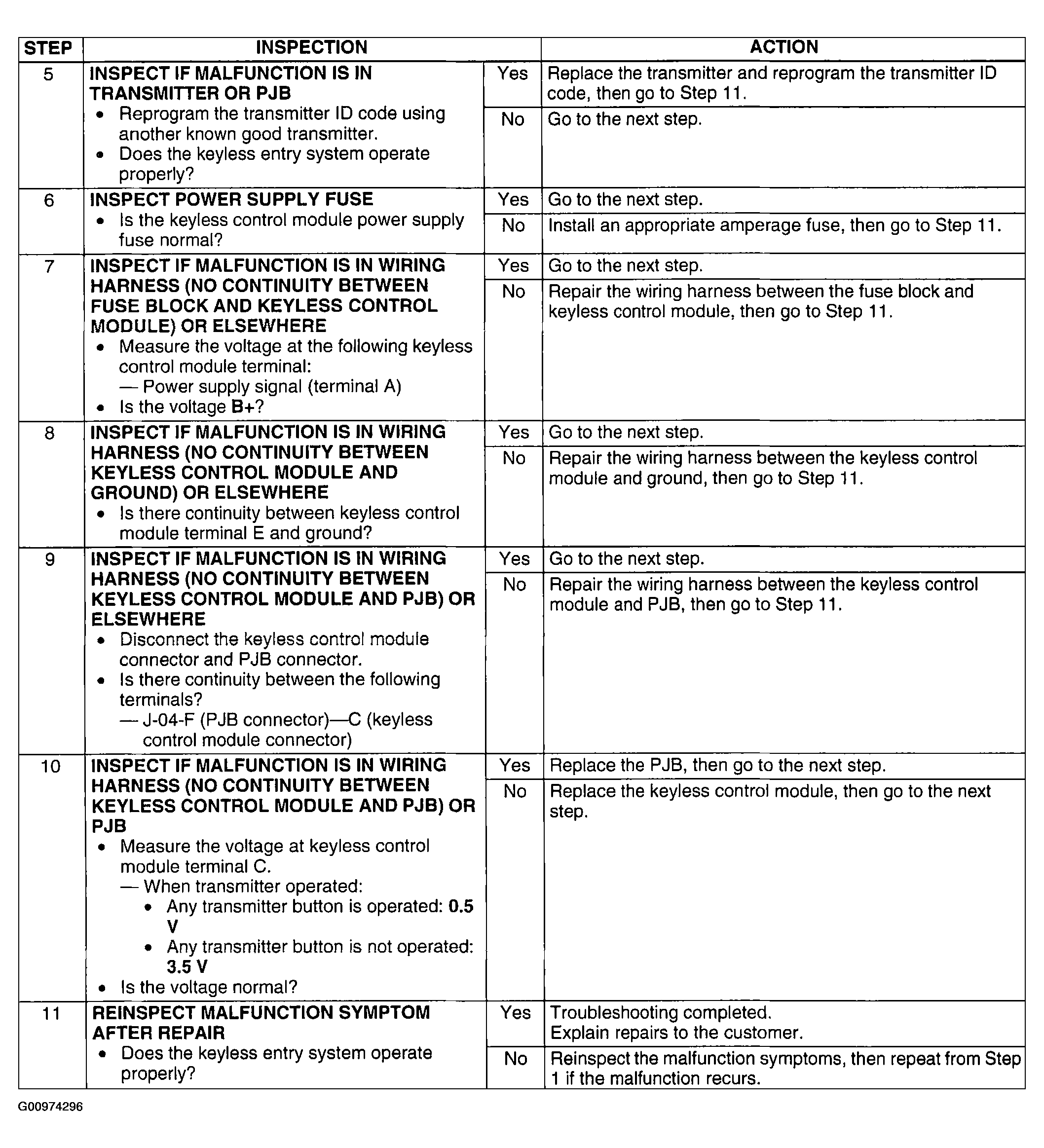

Fig 2: Diagnostic Procedure - Transmitter Id Code Cannot Be Reprogrammed (Steps 5-11)
G00974296Courtesy of MAZDA MOTORS CORP.
