Symptom Troubleshooting Chart [Keyless Entry System]

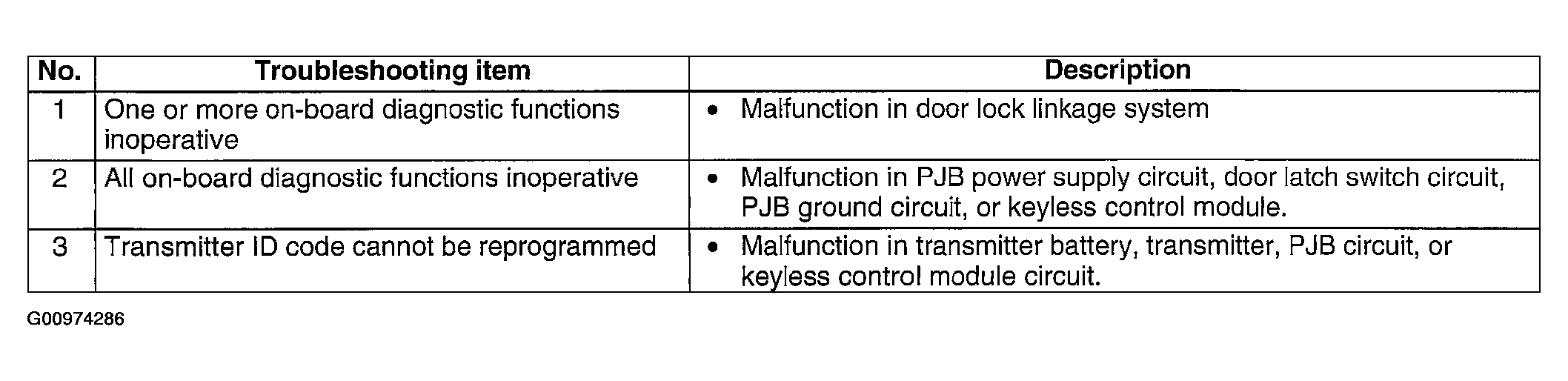

Fig 1: Symptom Troubleshooting - Keyless Entry System

Courtesy of MAZDA MOTORS CORP.

TROUBLESHOOTING CODES

TROUBLESHOOTING CODES	DESCRIPTION
NO. 1	ONE OR MORE ON-BOARD DIAGNOSTIC FUNCTIONS INOPERATIVE
NO. 2	ALL ON-BOARD DIAGNOSTIC FUNCTIONS INOPERATIVE
NO. 3	TRANSMITTER ID CODE CANNOT BE REPROGRAMMED
