Connector Removal Note

Pull the connector cover up in the direction of the arrow while pressing the tab of the connector cover.

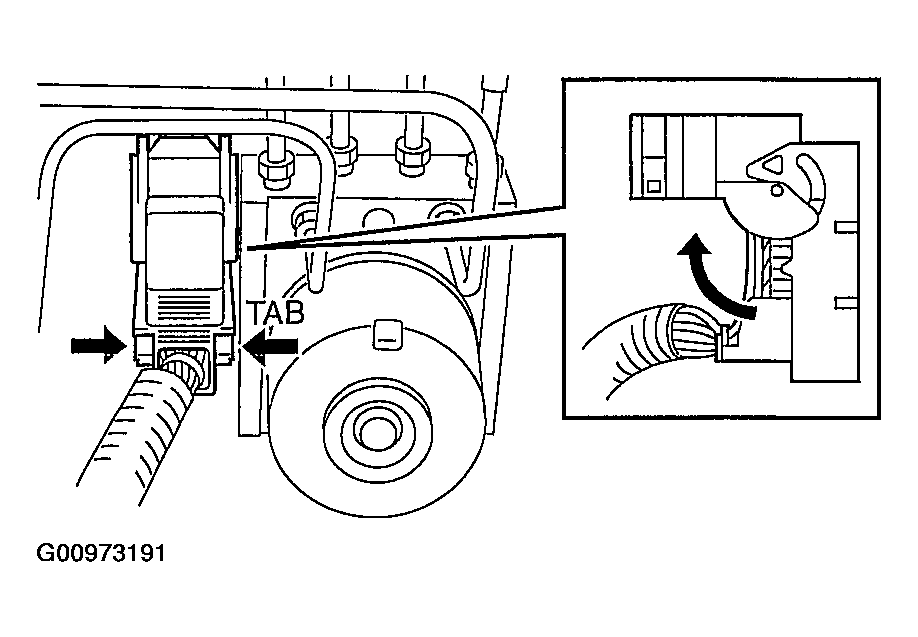

Fig 1: Removing Connector
Courtesy of MAZDA MOTORS CORP.
Pull the connector toward the vehicle front and remove it.
