Front Abs Wheel-Speed Sensor Removal/Installation

Remove the mudguard.
Remove in the order indicated in the table.

Fig 1: Front ABS Wheel-Speed Sensor Removal Sequence Table
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

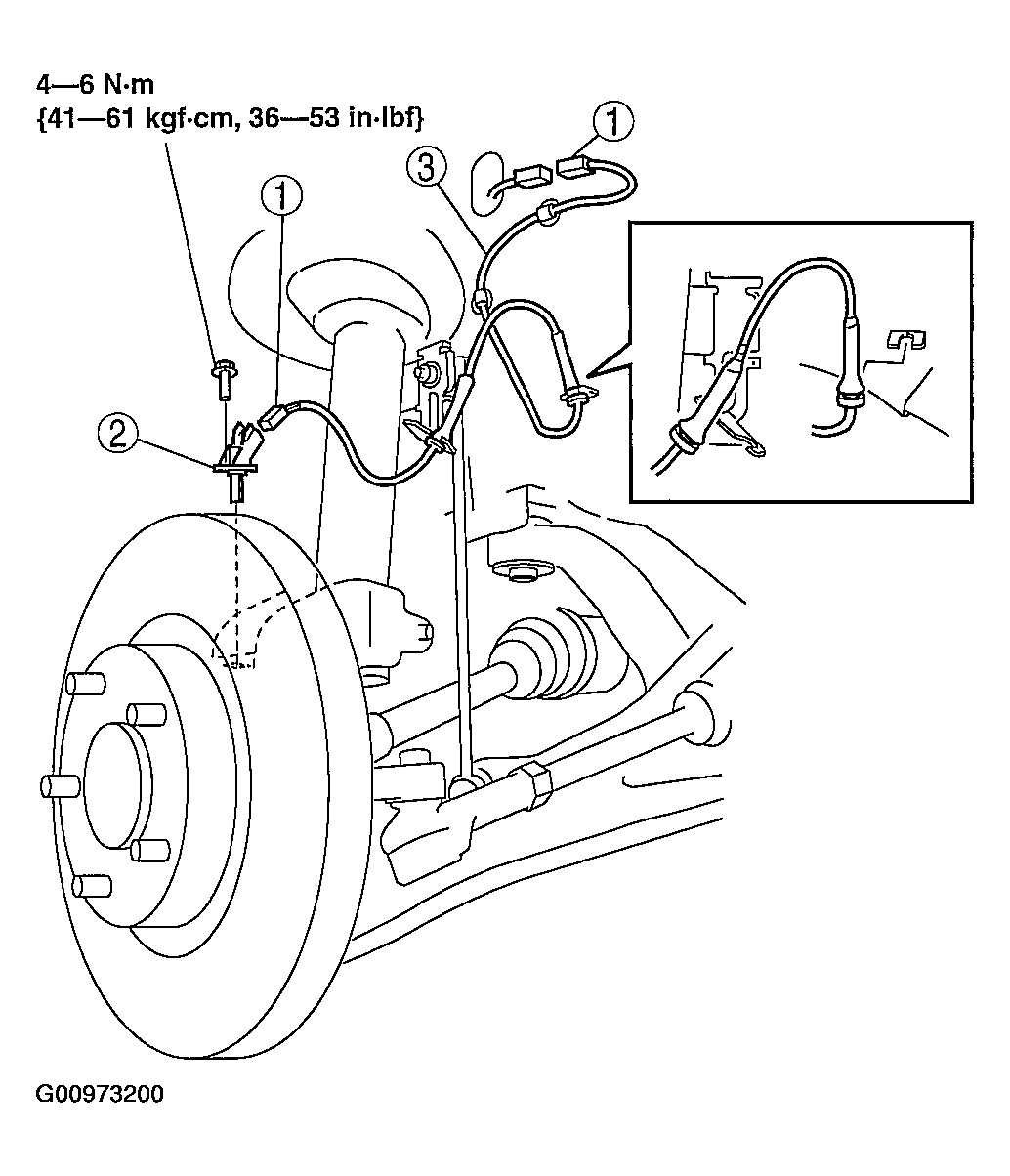

Fig 2: Front ABS Wheel-Speed Sensor With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
