Rear Abs Wheel-Speed Sensor Removal/Installation: Notes

Remove the under cover (rear).
Remove in the order indicated in the illustration.
Install in the reverse order of removal.

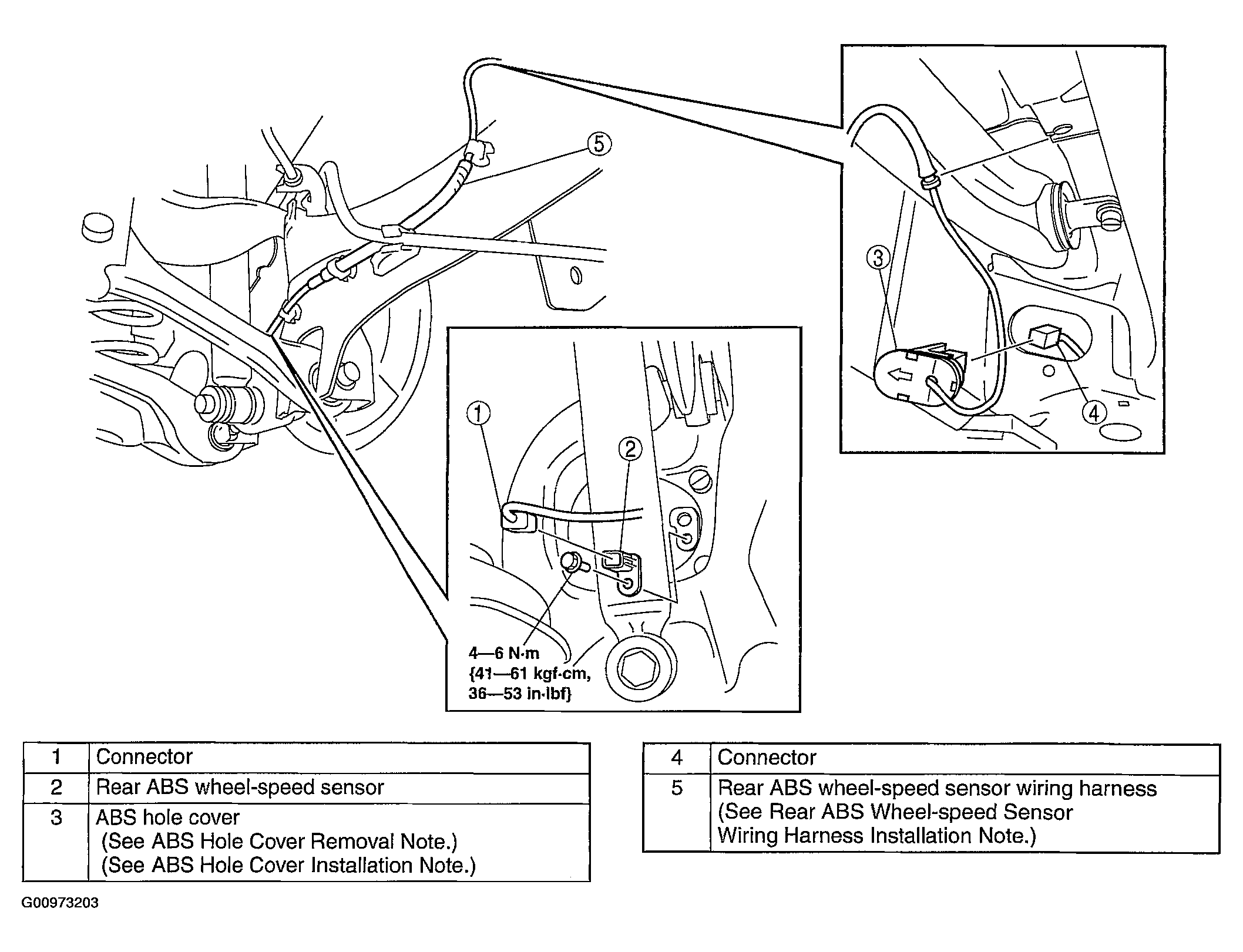

Fig 1: Rear ABS Wheel-Speed Sensor With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
