Brake Fluid Level Sensor Connector End View
Brake Fluid Level Sensor Connector End View

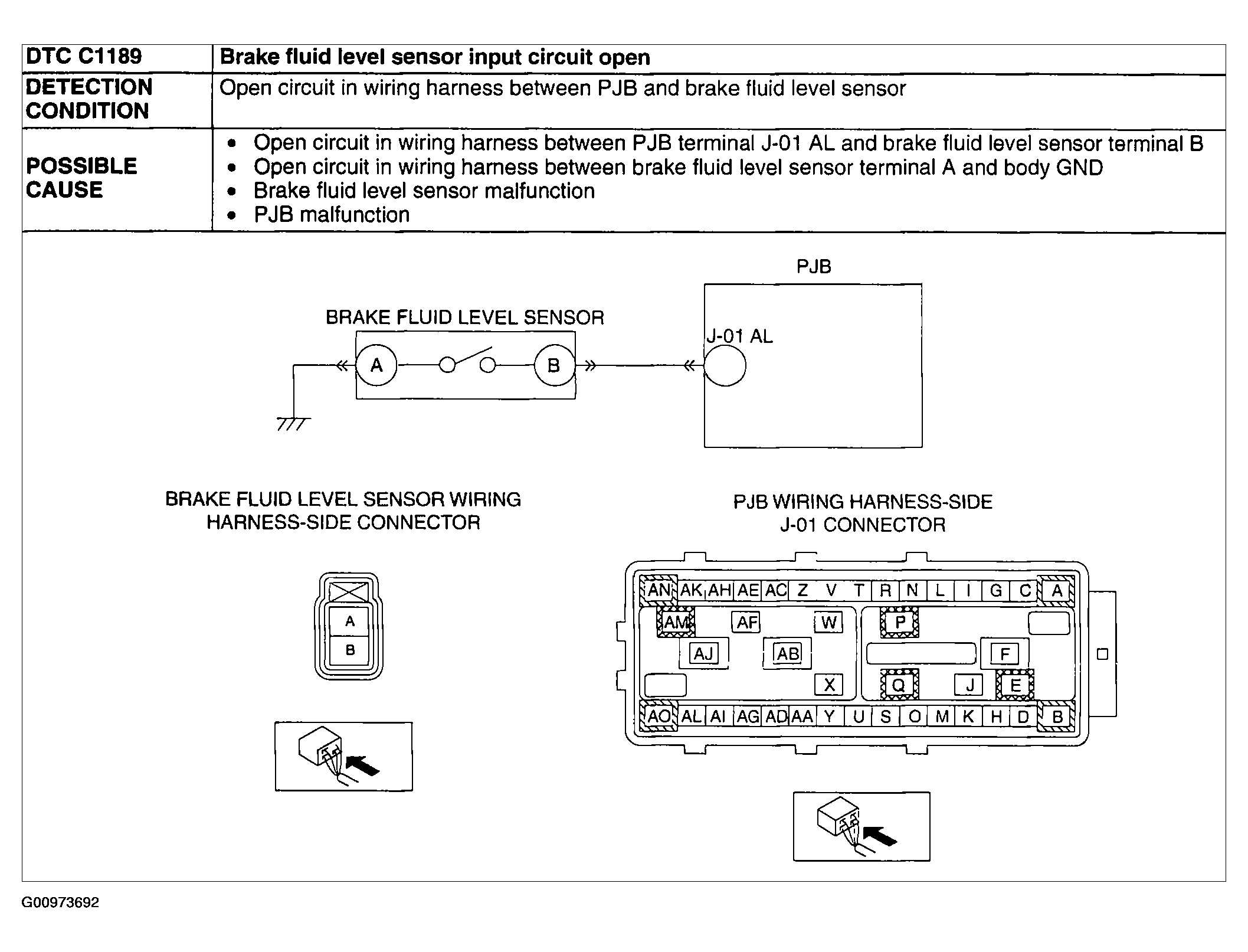

Fig 1: Brake Fluid Level Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
