Panel Light Control Switch Connector End View

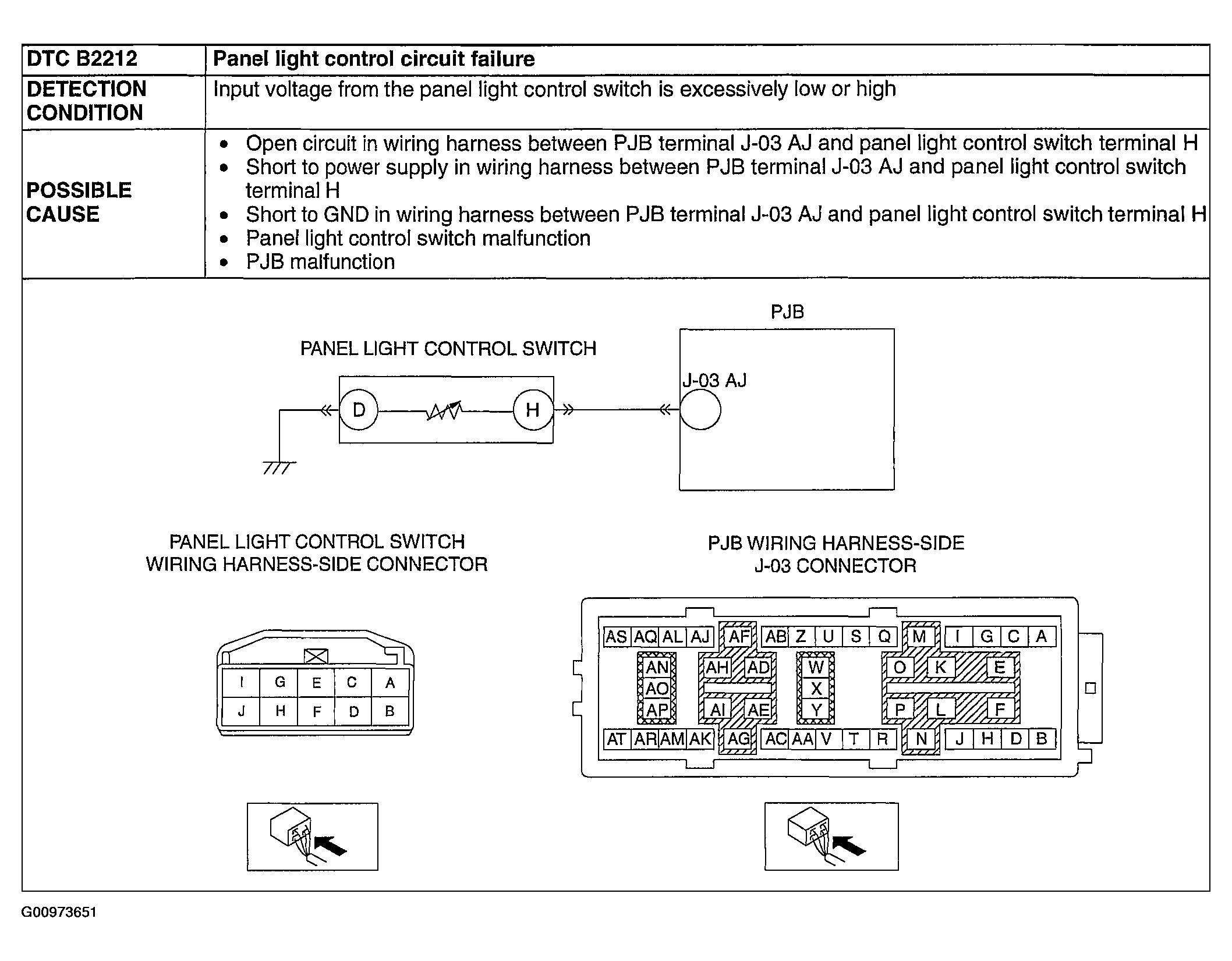

Fig 1: Panel Light Control Switch Connector End View
G00973651Courtesy of MAZDA MOTORS CORP.


Fig 1: Panel Light Control Switch Connector End View
G02567012Courtesy of MAZDA MOTORS CORP.
