Retainer ring installation note

Tap a retainer ring projection using a flathead screwdriver as shown in the figure and tighten the retainer until it is fixed in place.

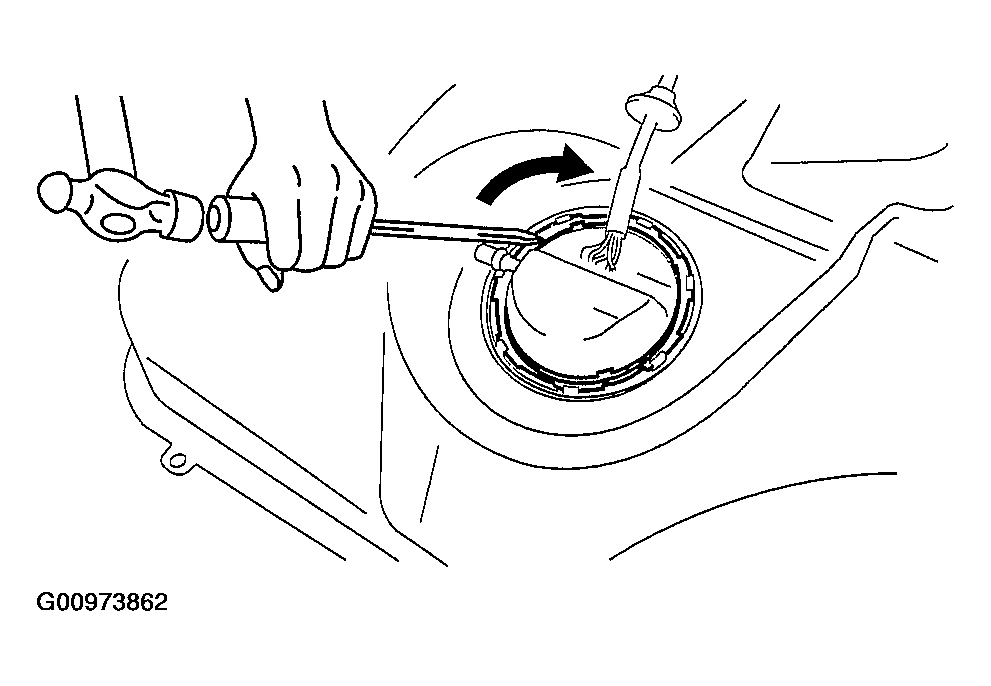

Fig 1: Installing Retainer Ring
Courtesy of MAZDA MOTORS CORP.
