Mazda
›
2004
›
3 i, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System
›
Control System Location Index
Control System Location Index

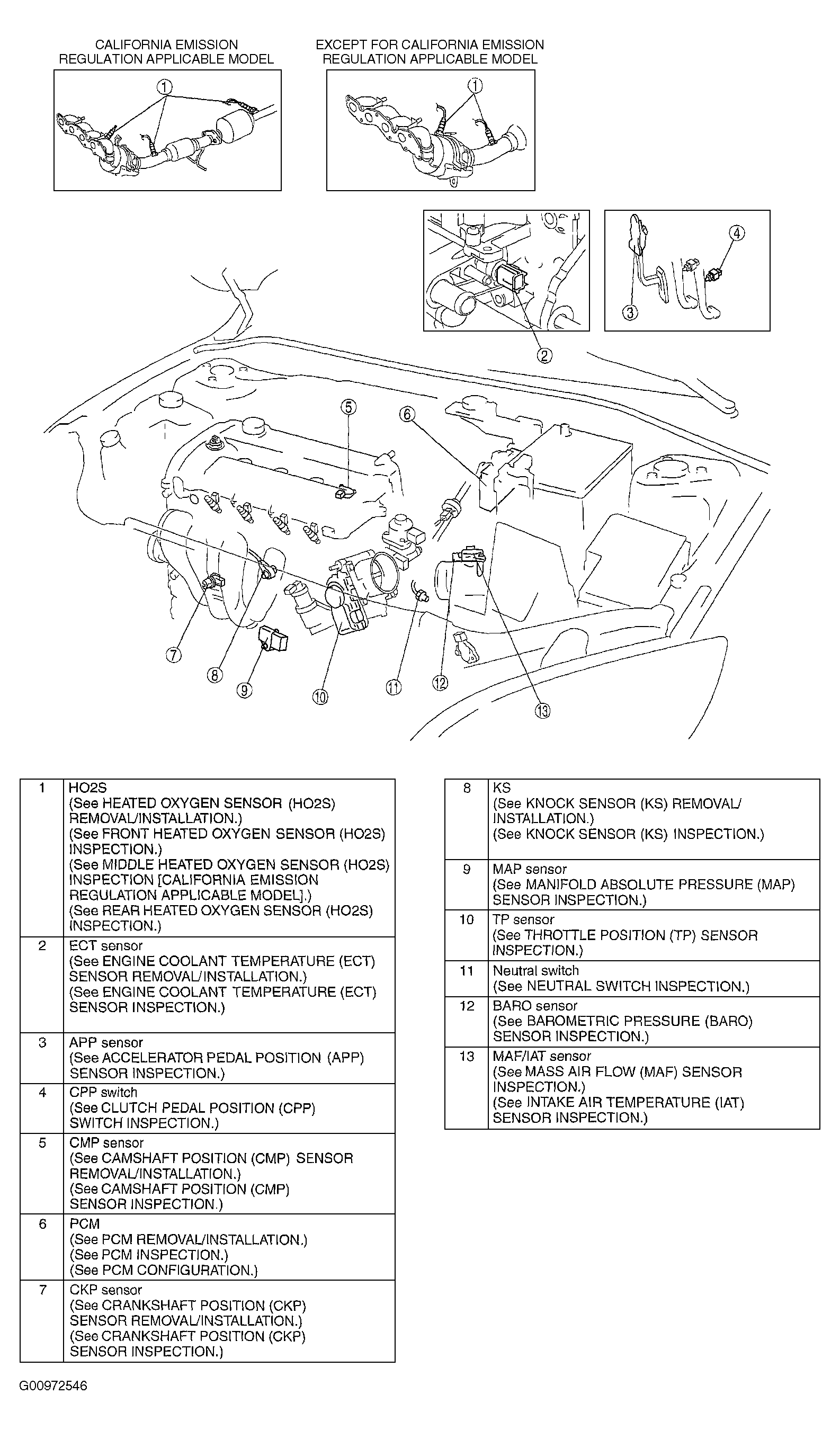

Fig 1: Control System Location Index
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
