California Emission Regulation Applicable Model

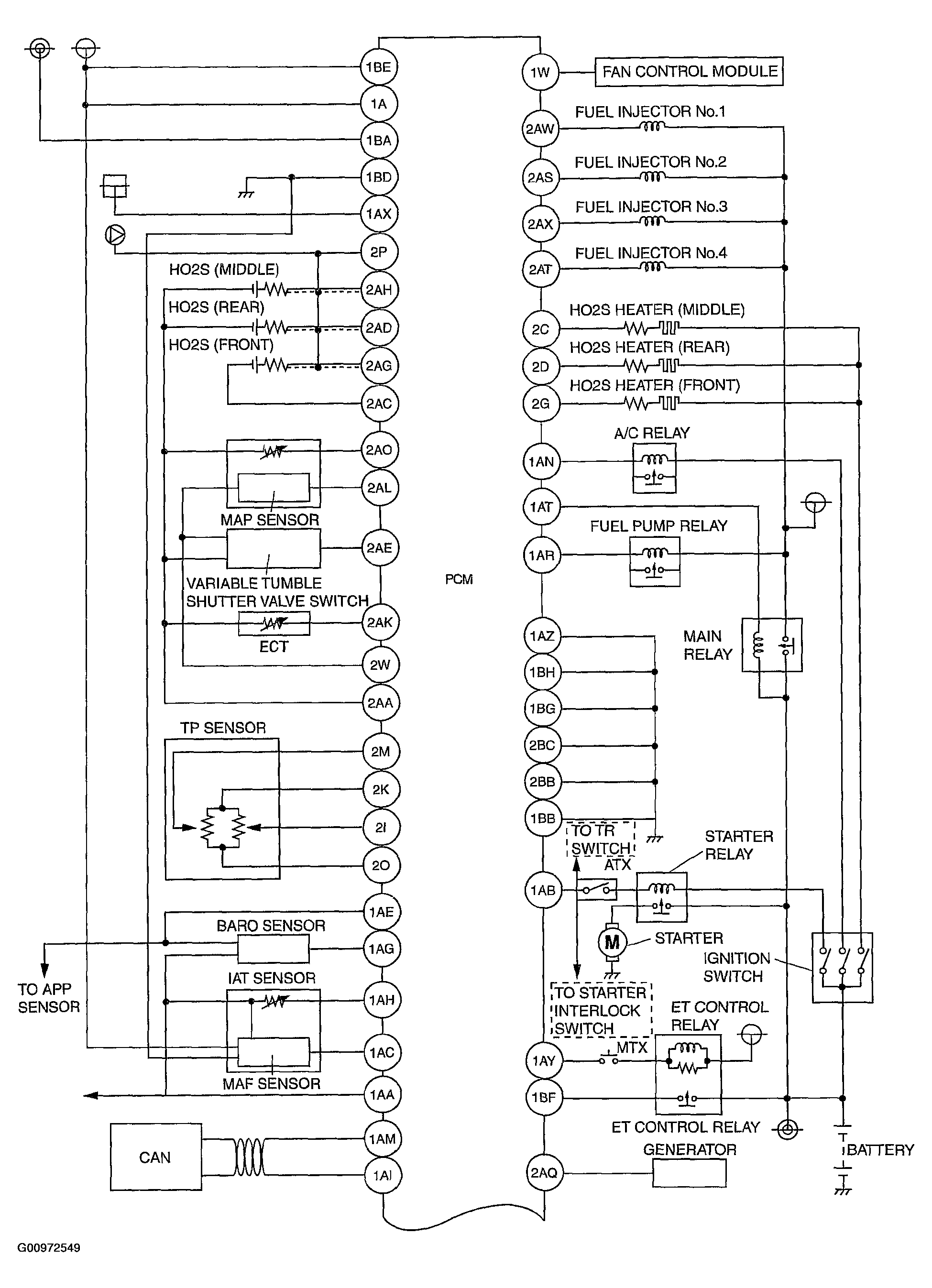

Fig 1: Control System Wiring Diagram-California Emission Regulation Applicable Model (1 Of 2)
G00972549Courtesy of MAZDA MOTORS CORP.

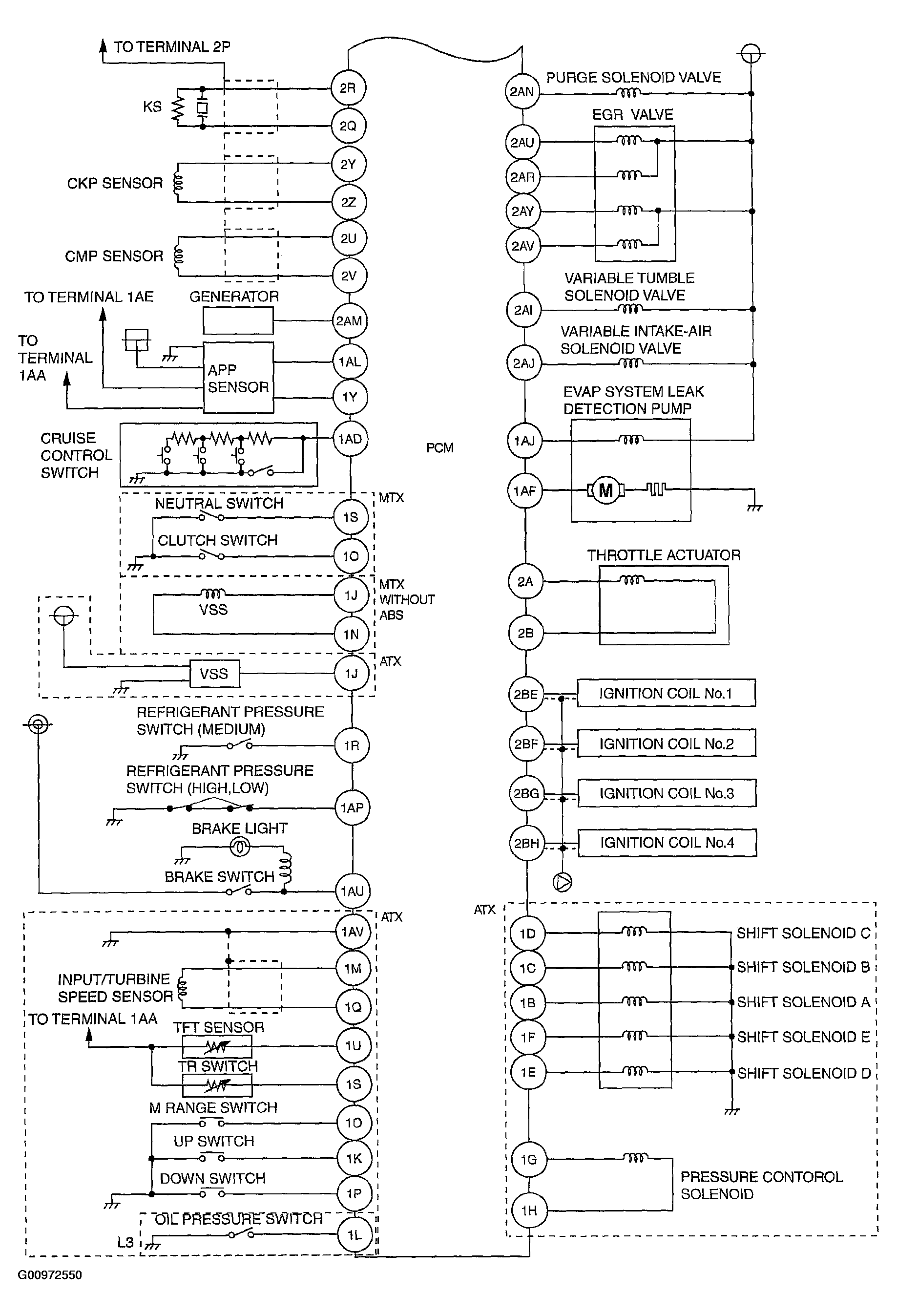

Fig 2: Control System Wiring Diagram-California Emission Regulation Applicable Model (2 Of 2)
G00972550Courtesy of MAZDA MOTORS CORP.
