California emission regulation applicable model

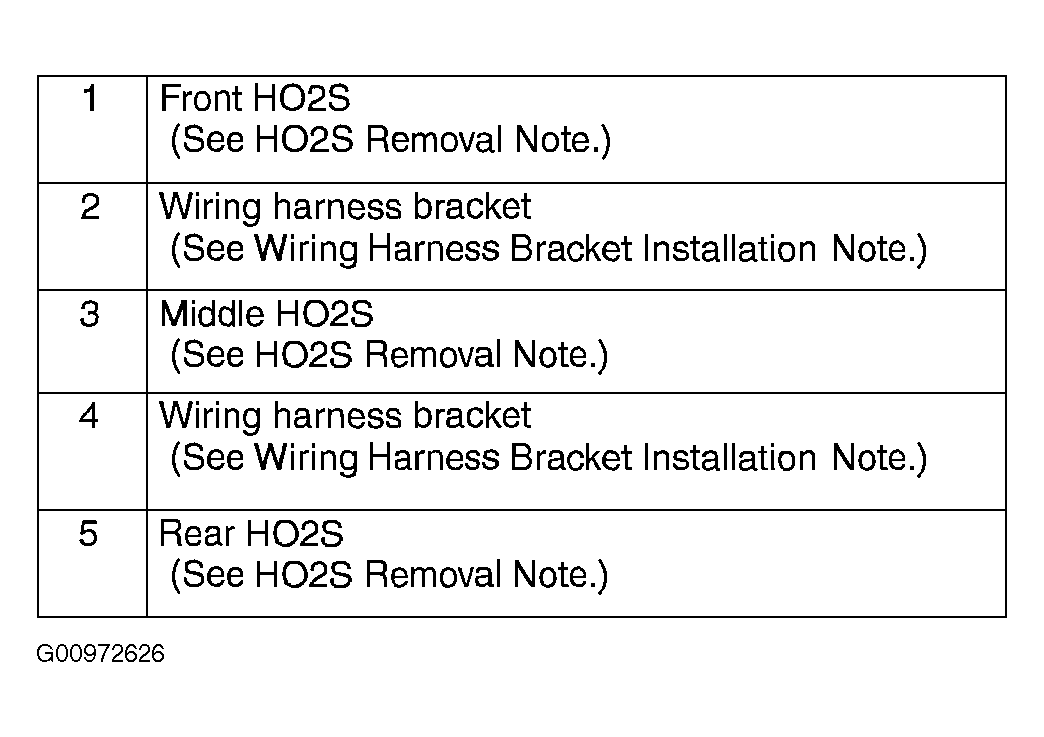

Fig 1: Heated Oxygen Sensor Removal/Installation Table-California Emission Regulation Applicable Model

Courtesy of MAZDA MOTORS CORP.

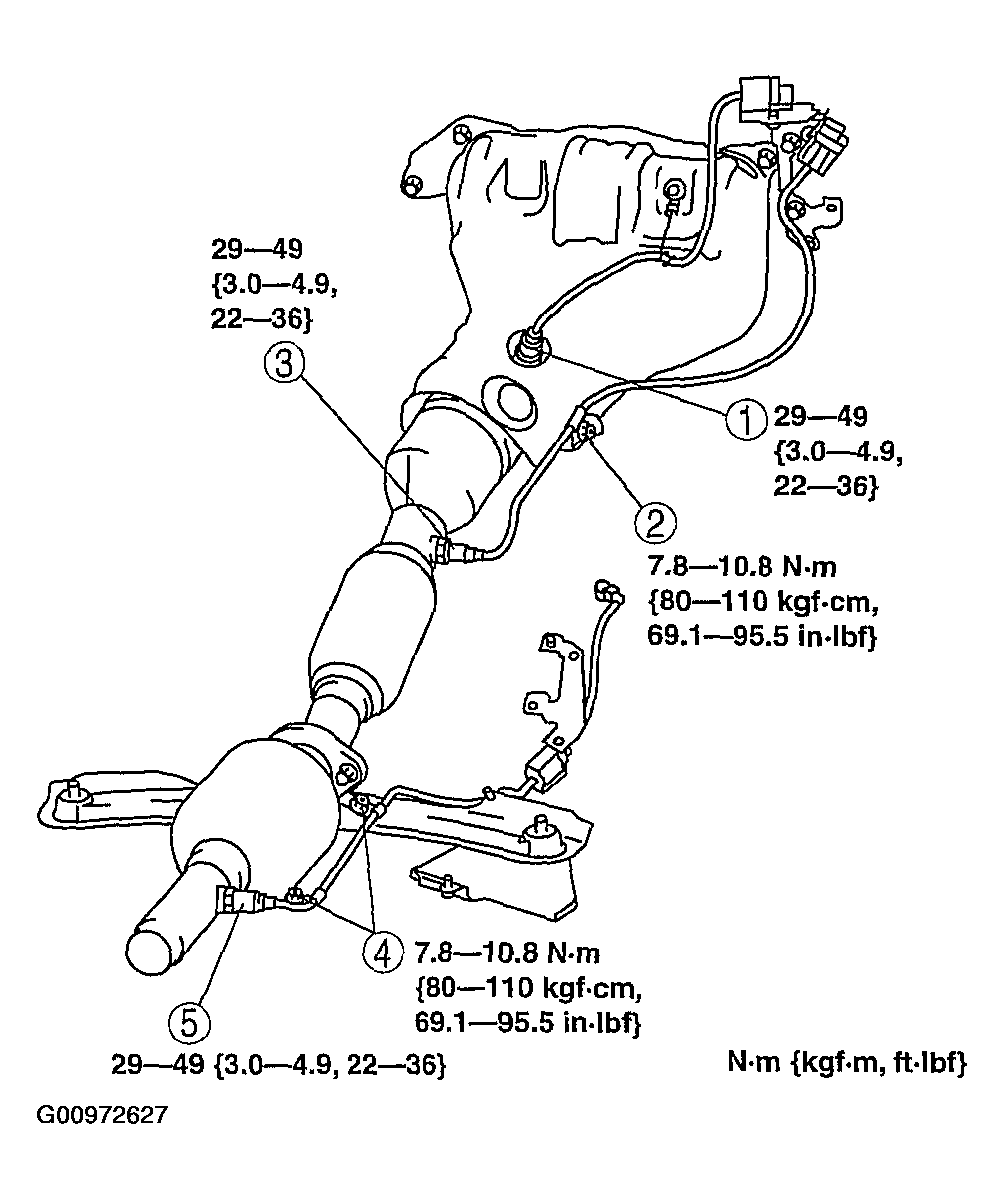

Fig 2: Heated Oxygen Sensor-California Emission Regulation Applicable Model With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
