CKP sensor signal

(+)

PCM terminals

2Y(+)-2AA(-)

Oscilloscope setting

• 2 V/DIV (Y), 10 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up (engine speed approx. 650 rpm, no load)

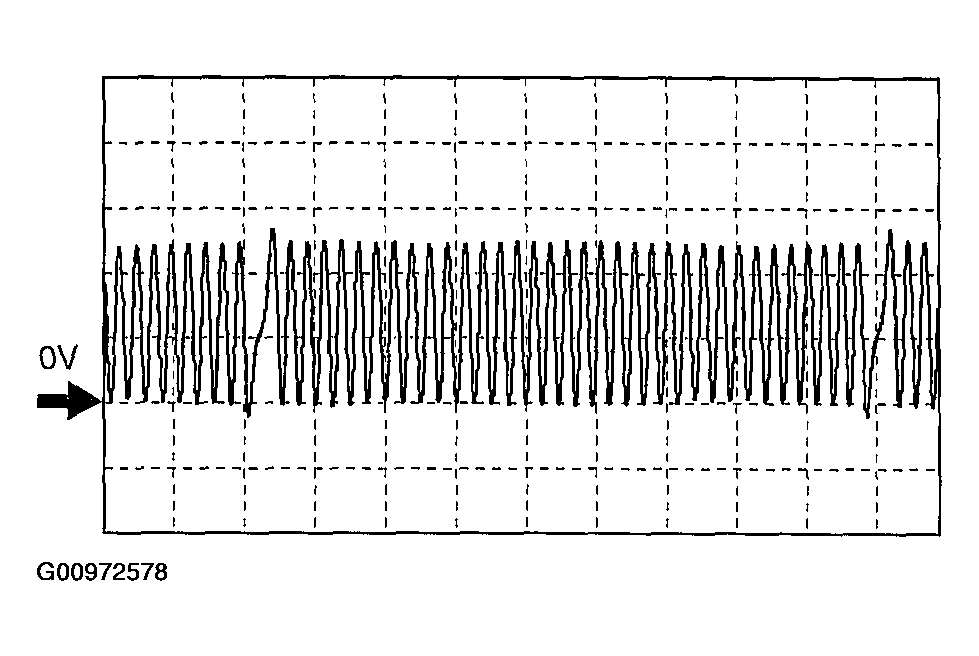

  Fig 1: Inspection Graph Of CKP Sensor (+) Signal Using Oscilloscope

  Courtesy of MAZDA MOTORS CORP.

(-)

PCM terminals

• 2Z(+)-2AA(-)

Oscilloscope setting

• 2 V/DIV (Y), 10 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up (engine speed approx. 650 rpm, no load)

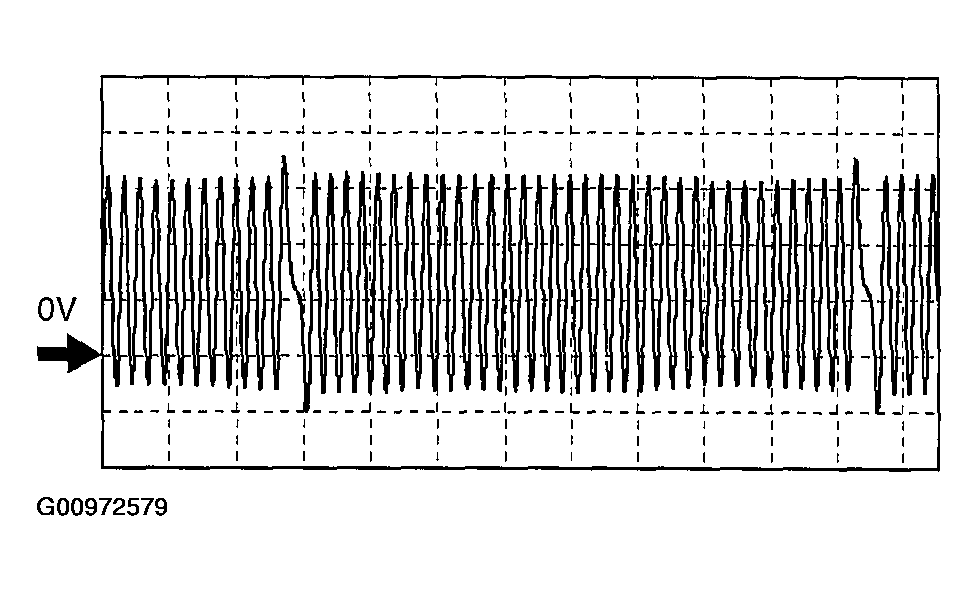

  Fig 2: Inspection Graph Of CKP Sensor (-) Signal Using Oscilloscope

  Courtesy of MAZDA MOTORS CORP.
