Input/turbine speed sensor (-) signal

PCM terminals

• 1Q (+)-Negative battery terminal (-)

Oscilloscope setting

• 500 mV/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Idle after warm-up

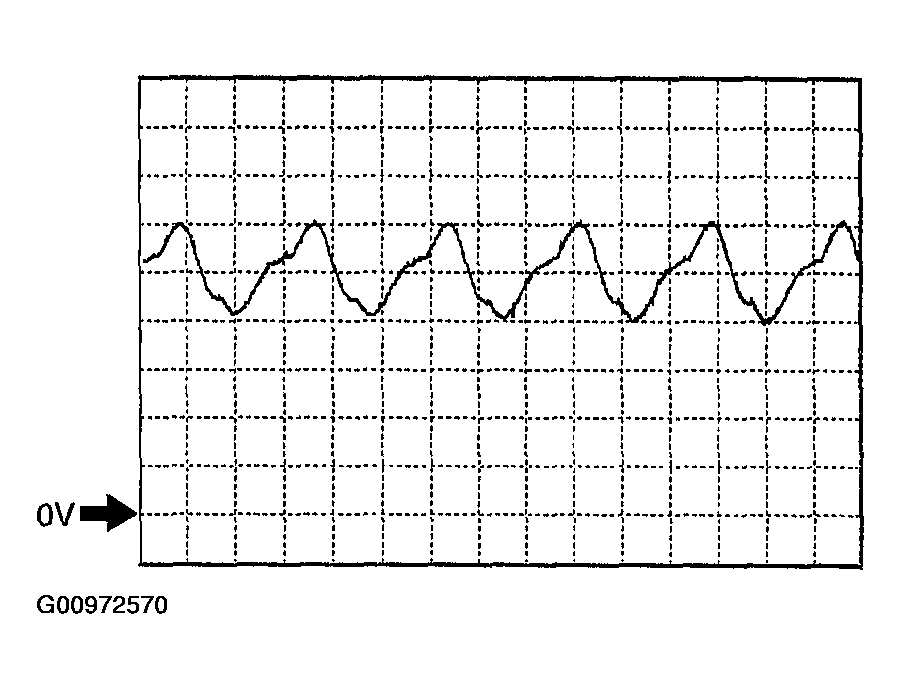

  Fig 1: Inspection Graph Of Input/Turbine Speed Sensor (-) Signal Using Oscilloscope

  Courtesy of MAZDA MOTORS CORP.
