Inspection Using An Oscilloscope (Reference)
›
Purge control signal
Purge control signal
PCM terminals
2AN (+)-Negative battery terminal (-)
Oscilloscope setting
2 V/DIV (Y), 0.1 s/DIV (X), DC range
Vehicle condition
Idle after warm-up

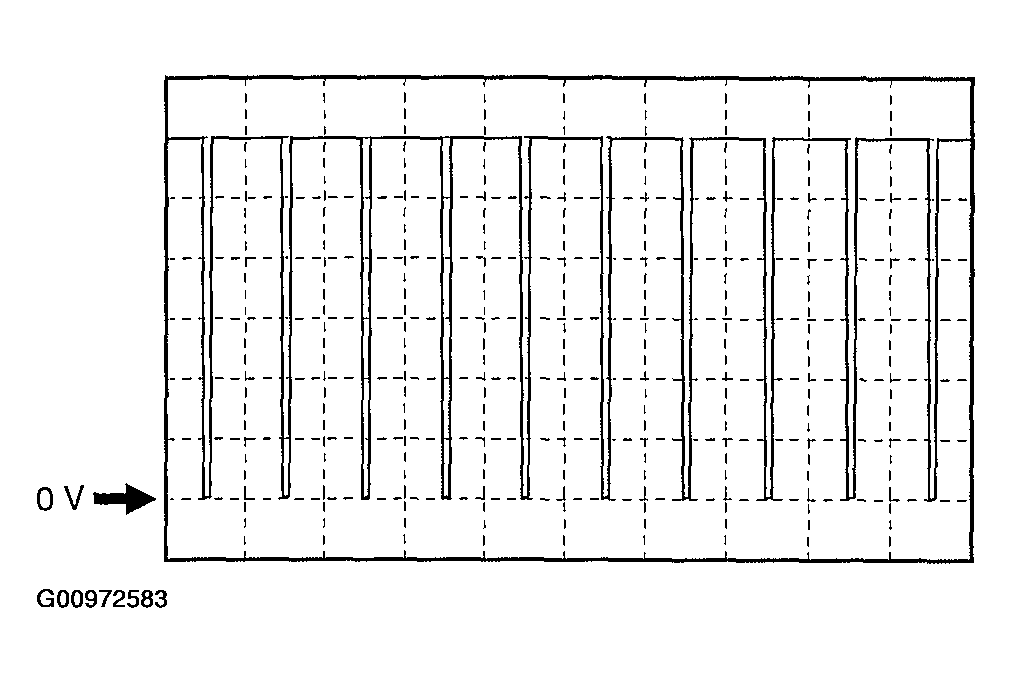

Fig 1: Inspection Graph Of Purge Control Signal Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
