Diagnostic procedure

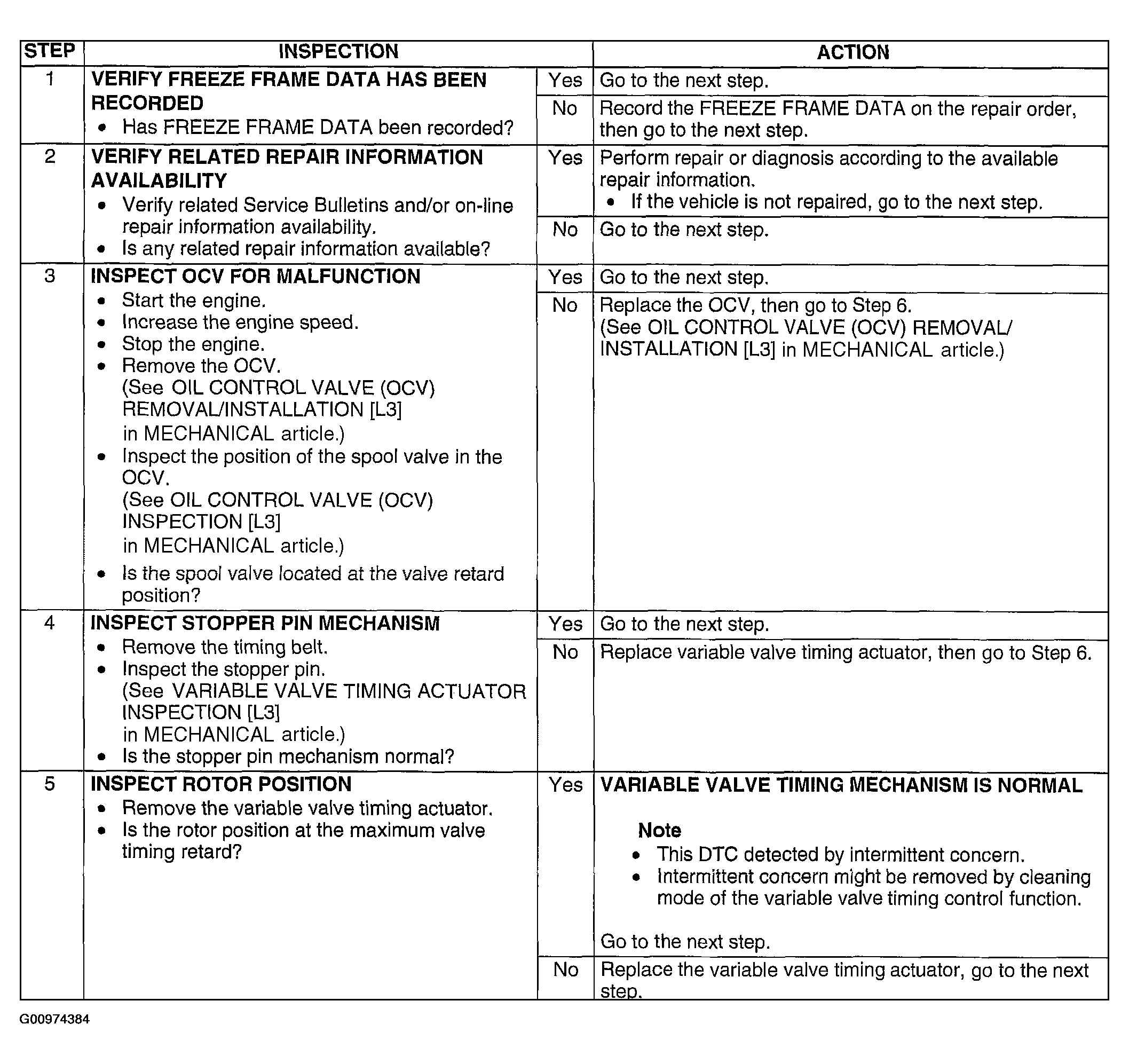

Fig 1: DTC P0011: Diagnostic Procedure Chart (Steps 1-5)
G00974384Courtesy of MAZDA MOTORS CORP.

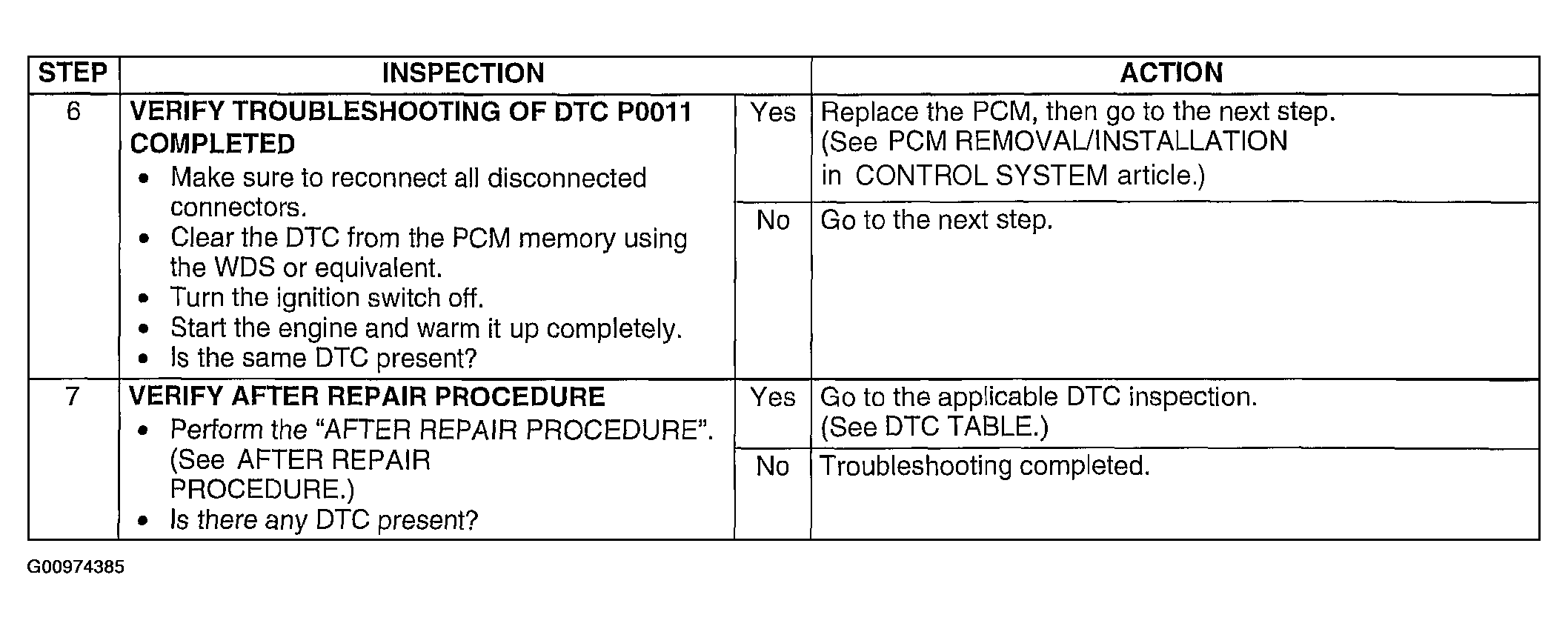

Fig 2: DTC P0011: Diagnostic Procedure Chart (Steps 6 & 7)
G00974385Courtesy of MAZDA MOTORS CORP.
