Diagnostic Procedure

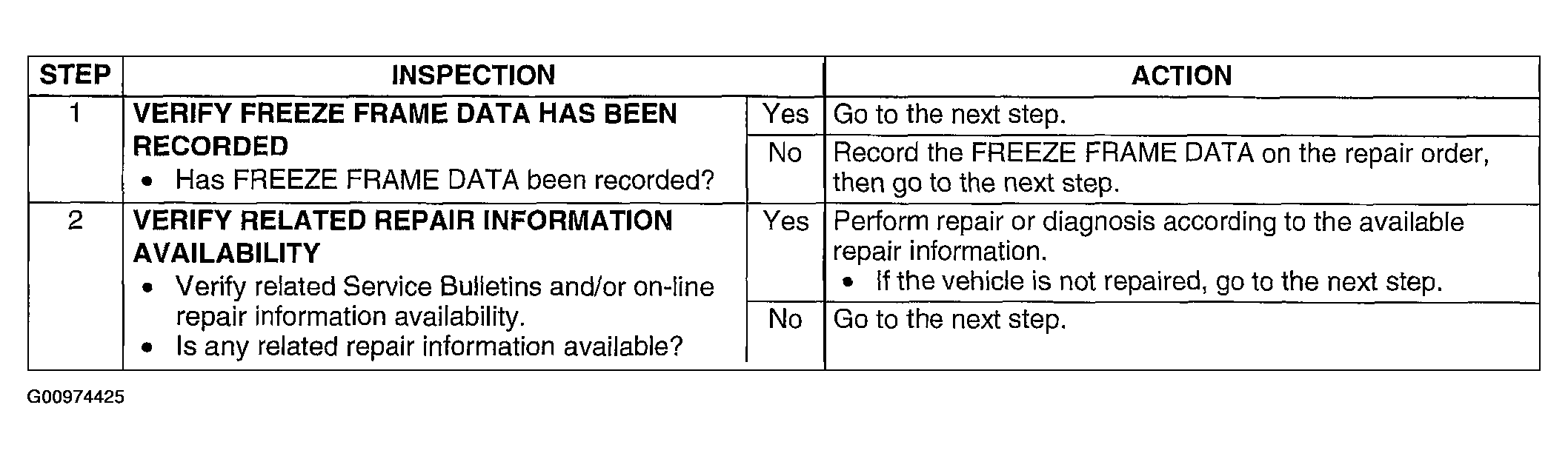

Fig 1: DTC P0044: Diagnostic Procedure Chart (Steps 1 & 2)
G00974425Courtesy of MAZDA MOTORS CORP.

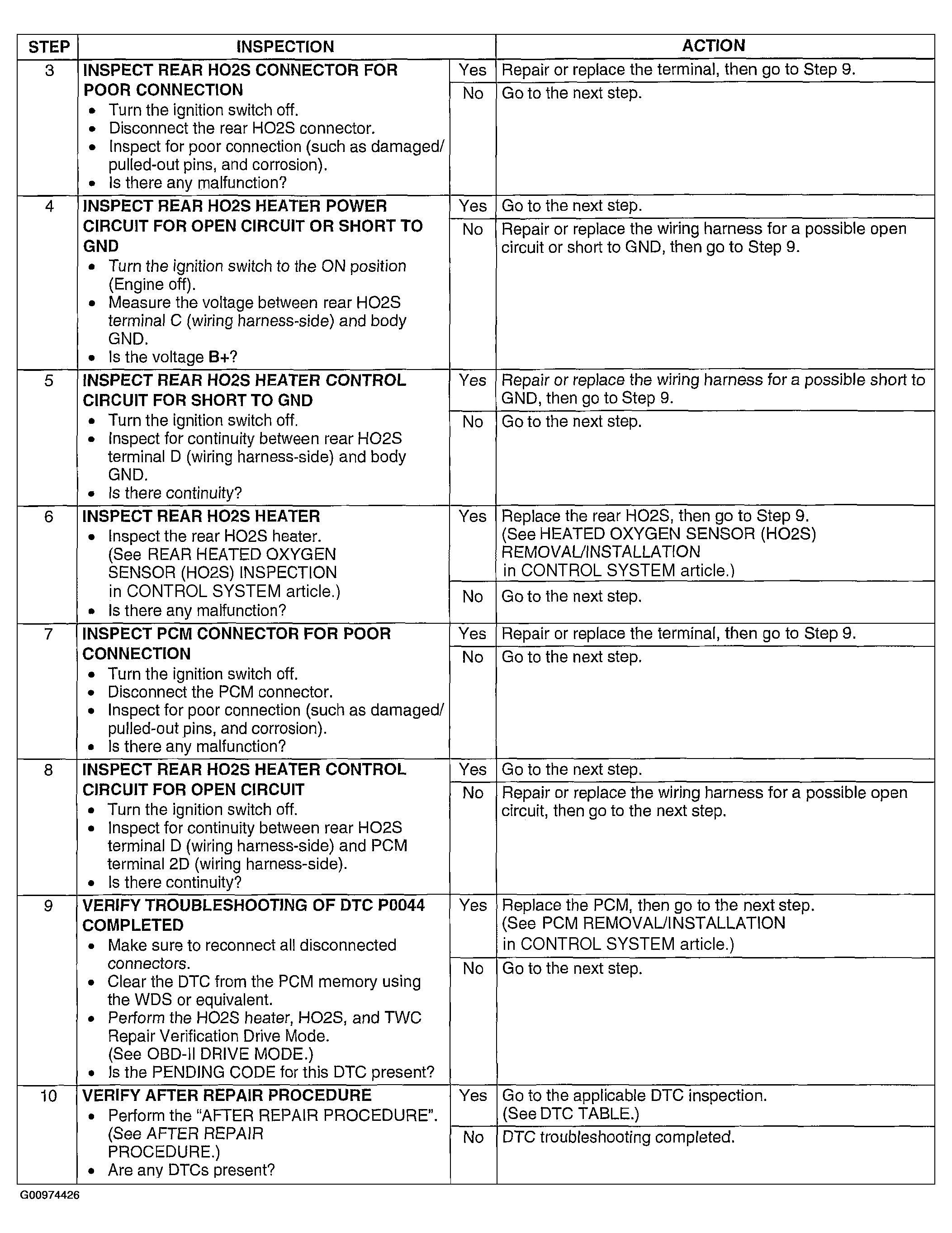

Fig 2: DTC P0044: Diagnostic Procedure Chart (Steps 3-10)
G00974426Courtesy of MAZDA MOTORS CORP.
