DTC P0106: Map Sensor Performance Problem
›
Diagnostic Procedure
Diagnostic Procedure

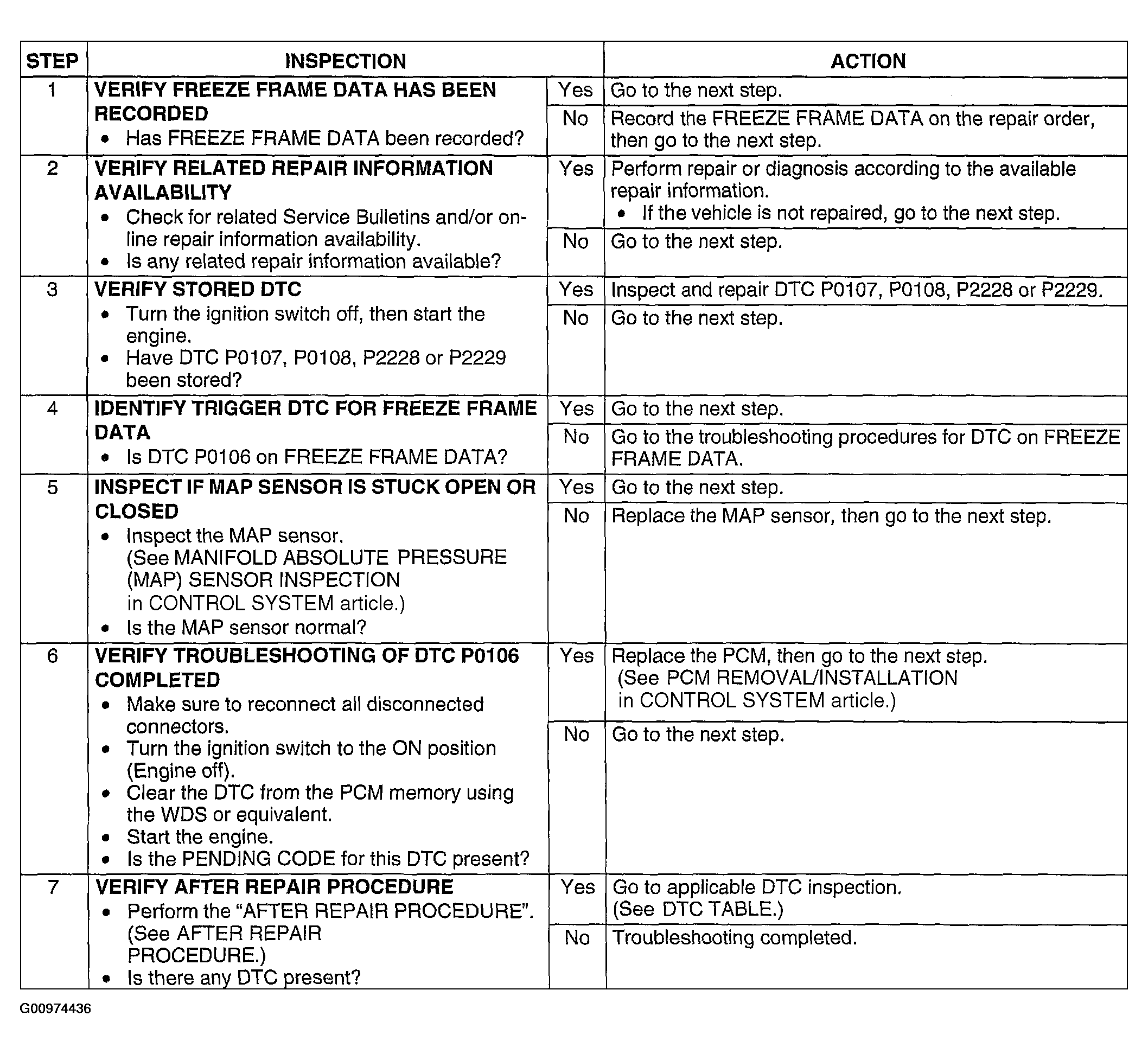

Fig 1: DTC P0106: Diagnostic Procedure Chart (Steps 1-7)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
