DTC P0112: IAT Sensor Circuit Low Input
›
Diagnostic Procedure
Diagnostic Procedure

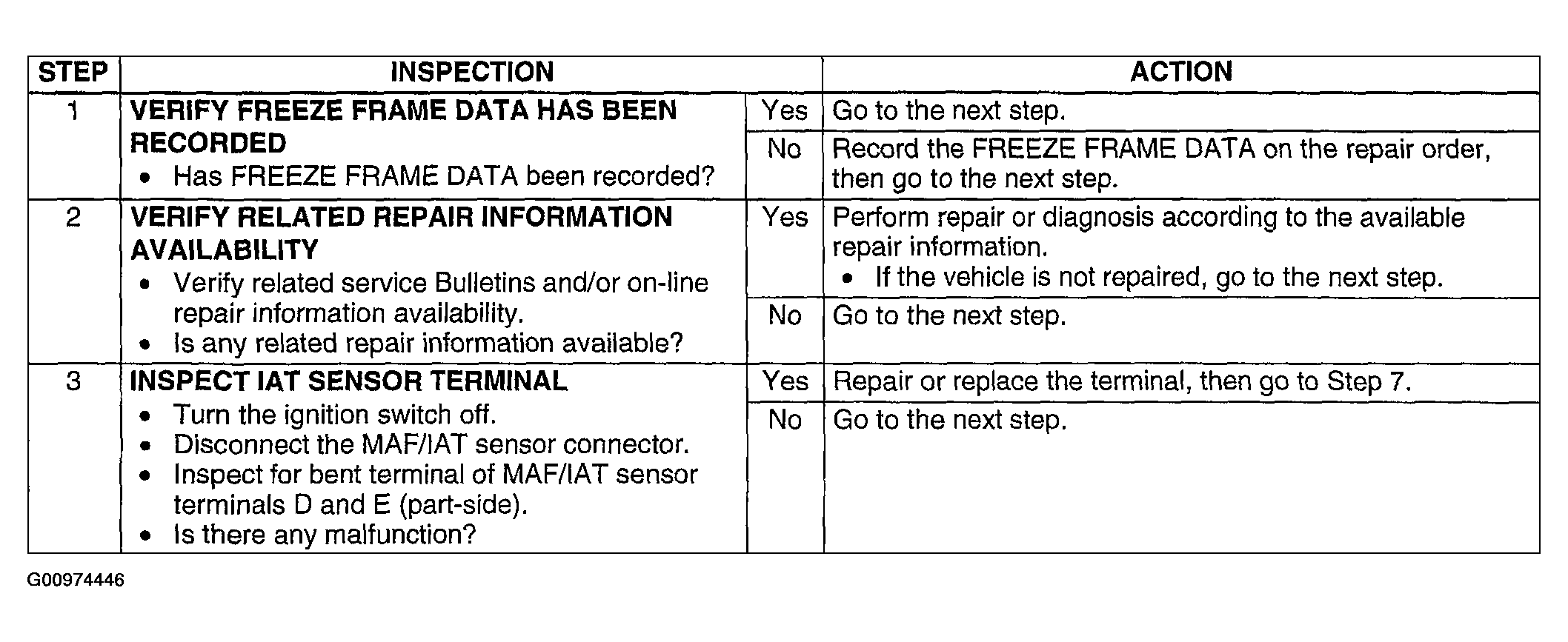

Fig 1: DTC P0112: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

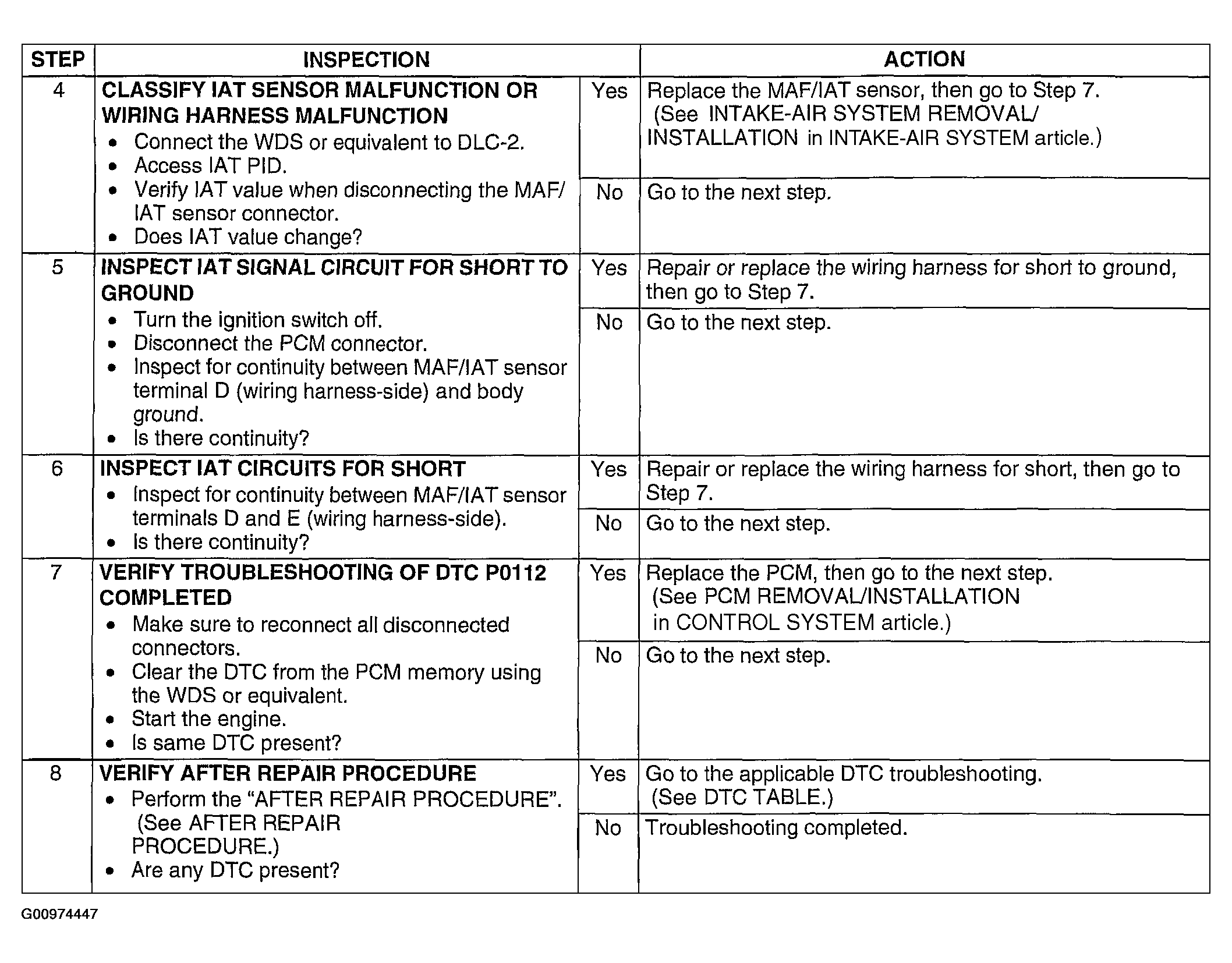

Fig 2: DTC P0112: Diagnostic Procedure Chart (Steps 4-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
