DTC P0117: ECT Sensor Circuit Low Input: Notes

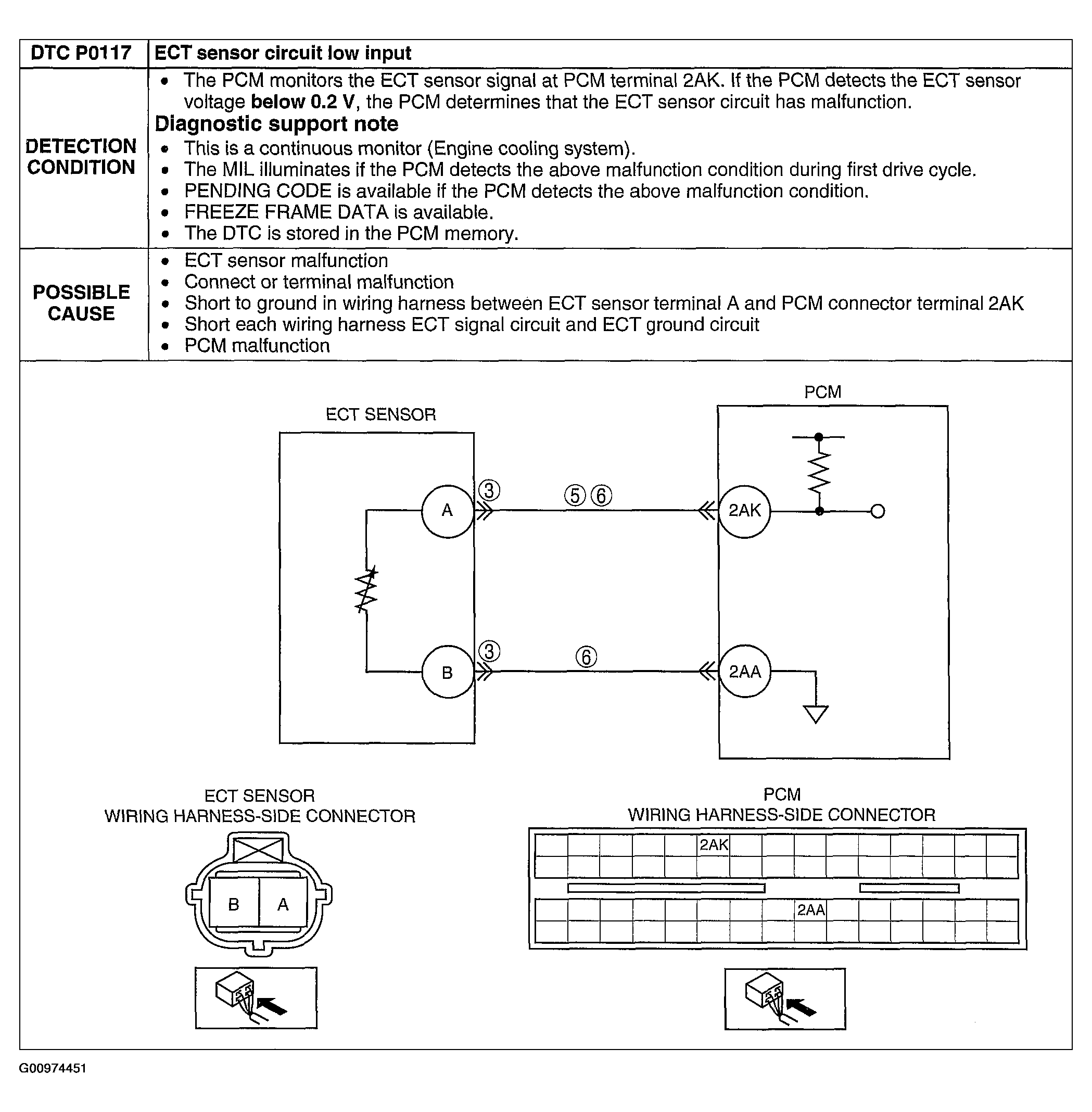

Fig 1: DTC P0117: Detection Condition & Possible Causes Chart
G00974451Courtesy of MAZDA MOTORS CORP.
