DTC P0123: TP Sensor No. 1 Circuit High Input: Notes

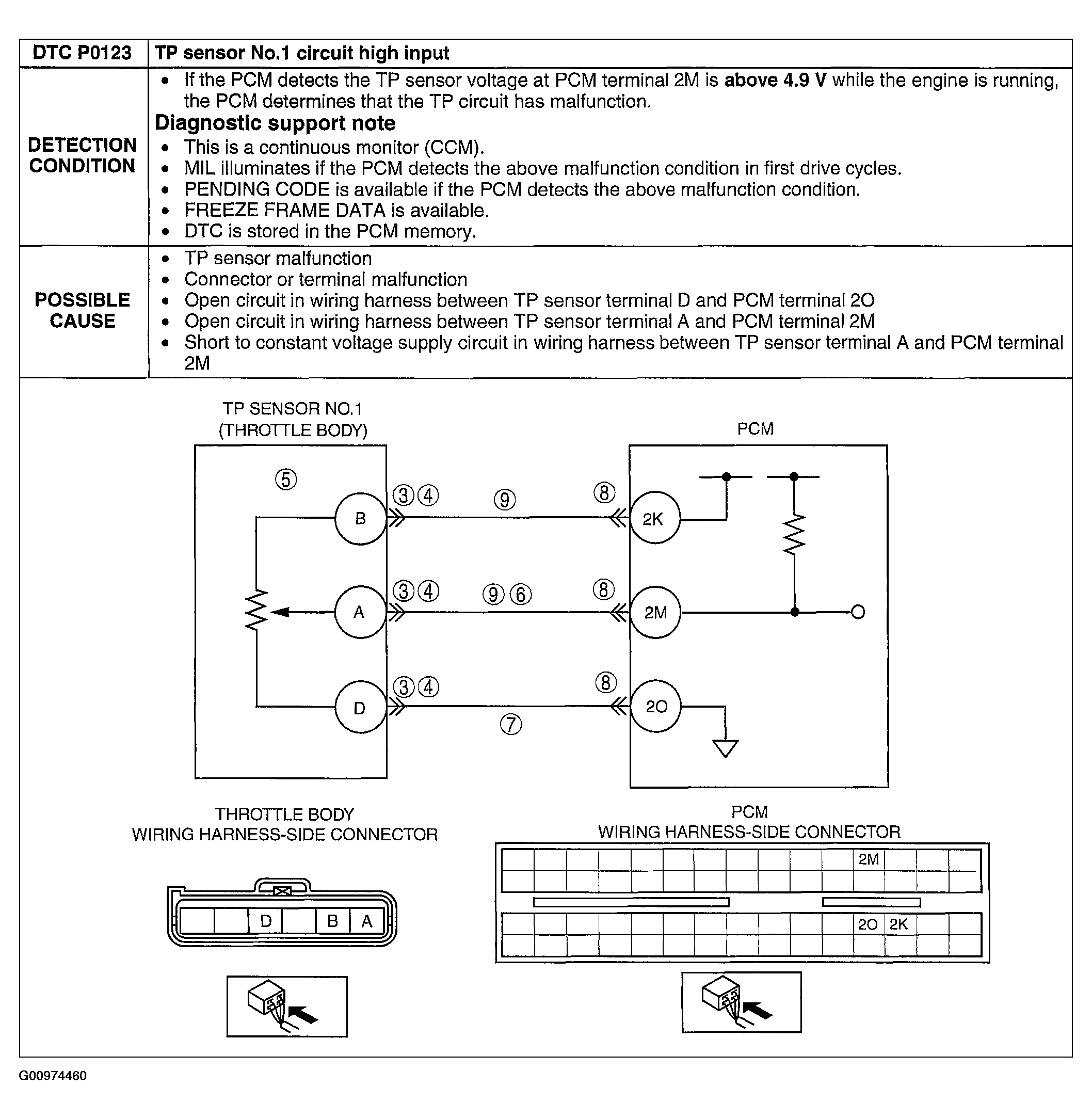

Fig 1: DTC P0123: Detection Condition & Possible Causes Chart
G00974460Courtesy of MAZDA MOTORS CORP.
