DTC P0131: Front Ho2S Circuit Low Input: Notes

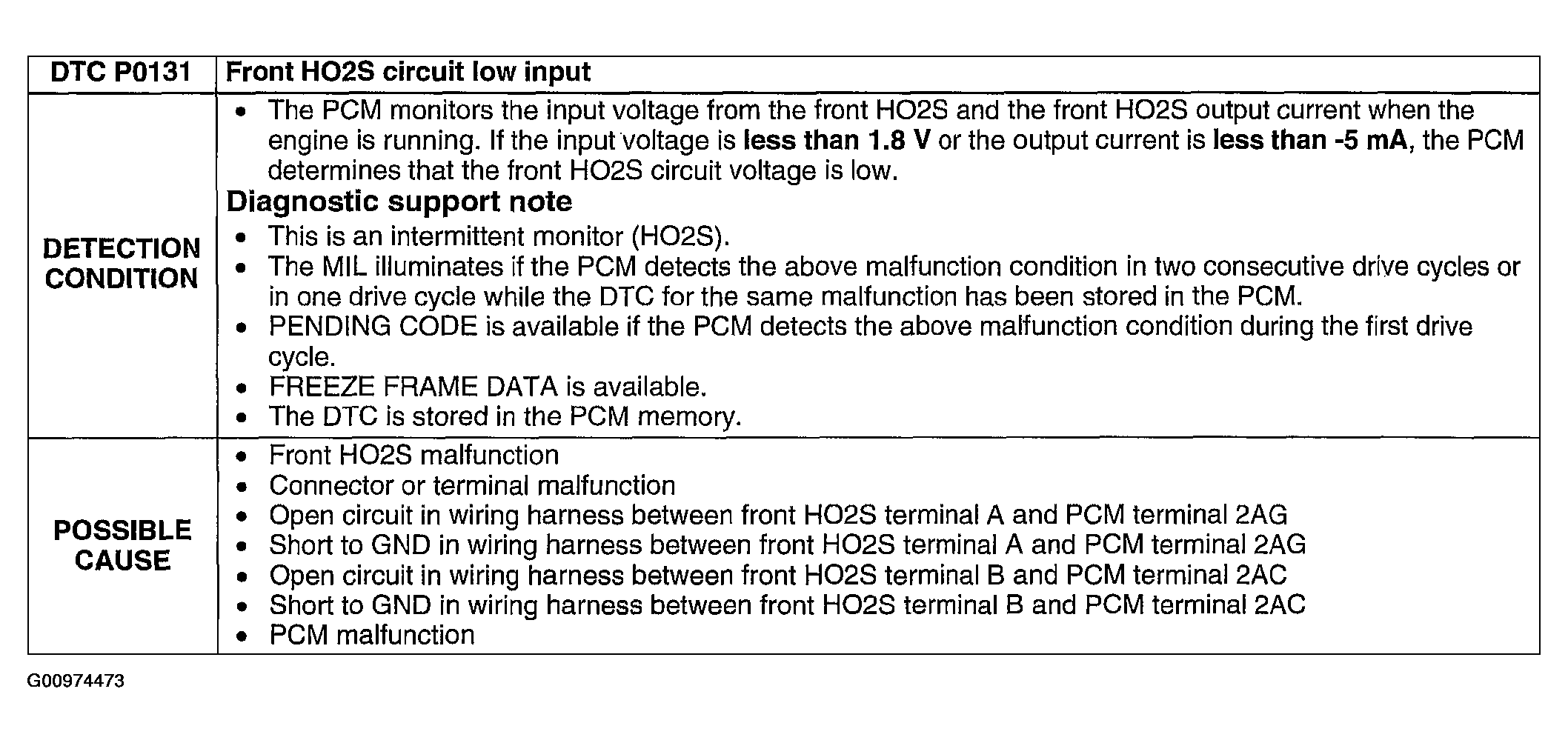

Fig 1: DTC P0131: Detection Condition & Possible Causes Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

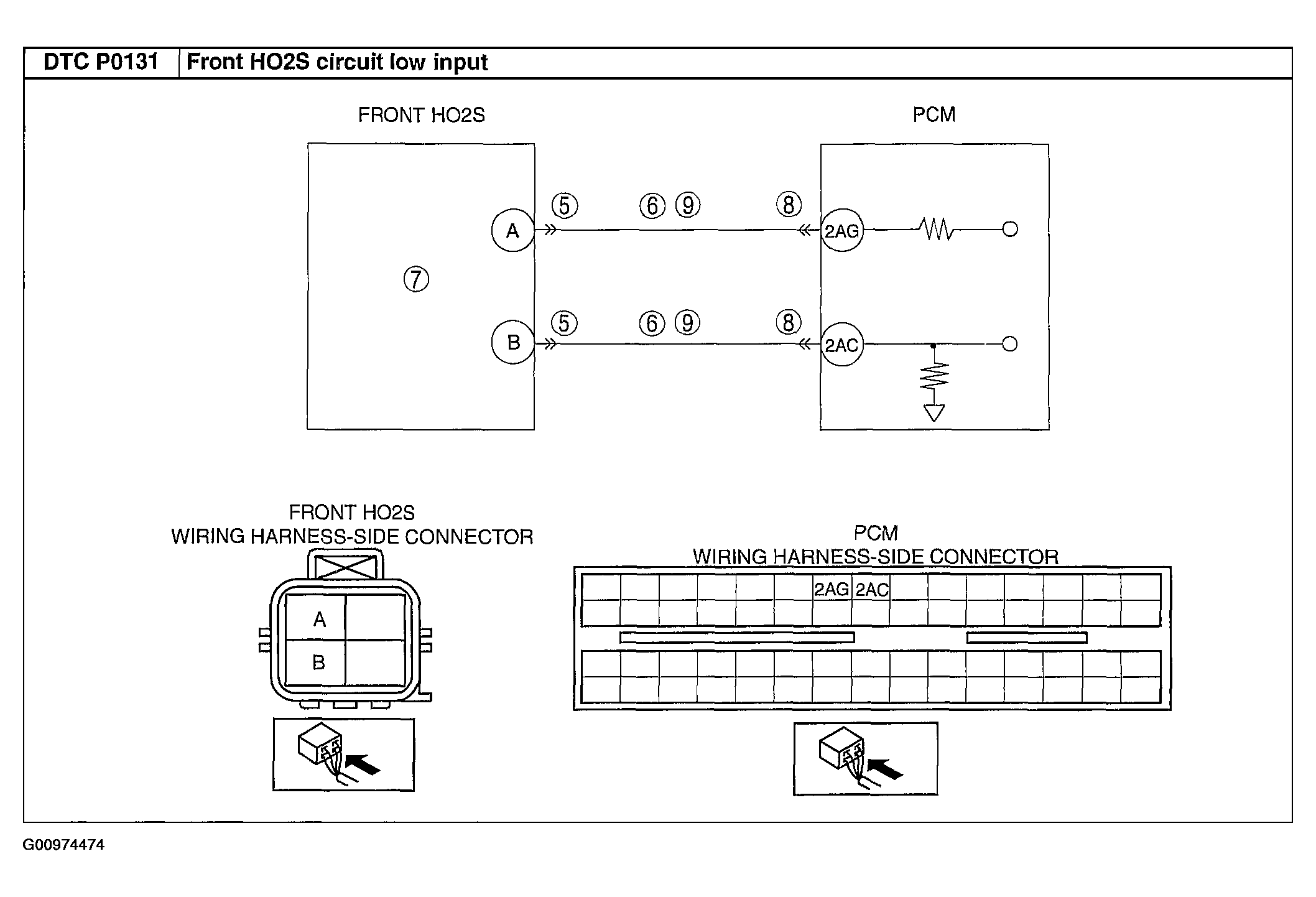

Fig 2: DTC P0131: Detection Condition & Possible Causes Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
