Diagnostic Procedure

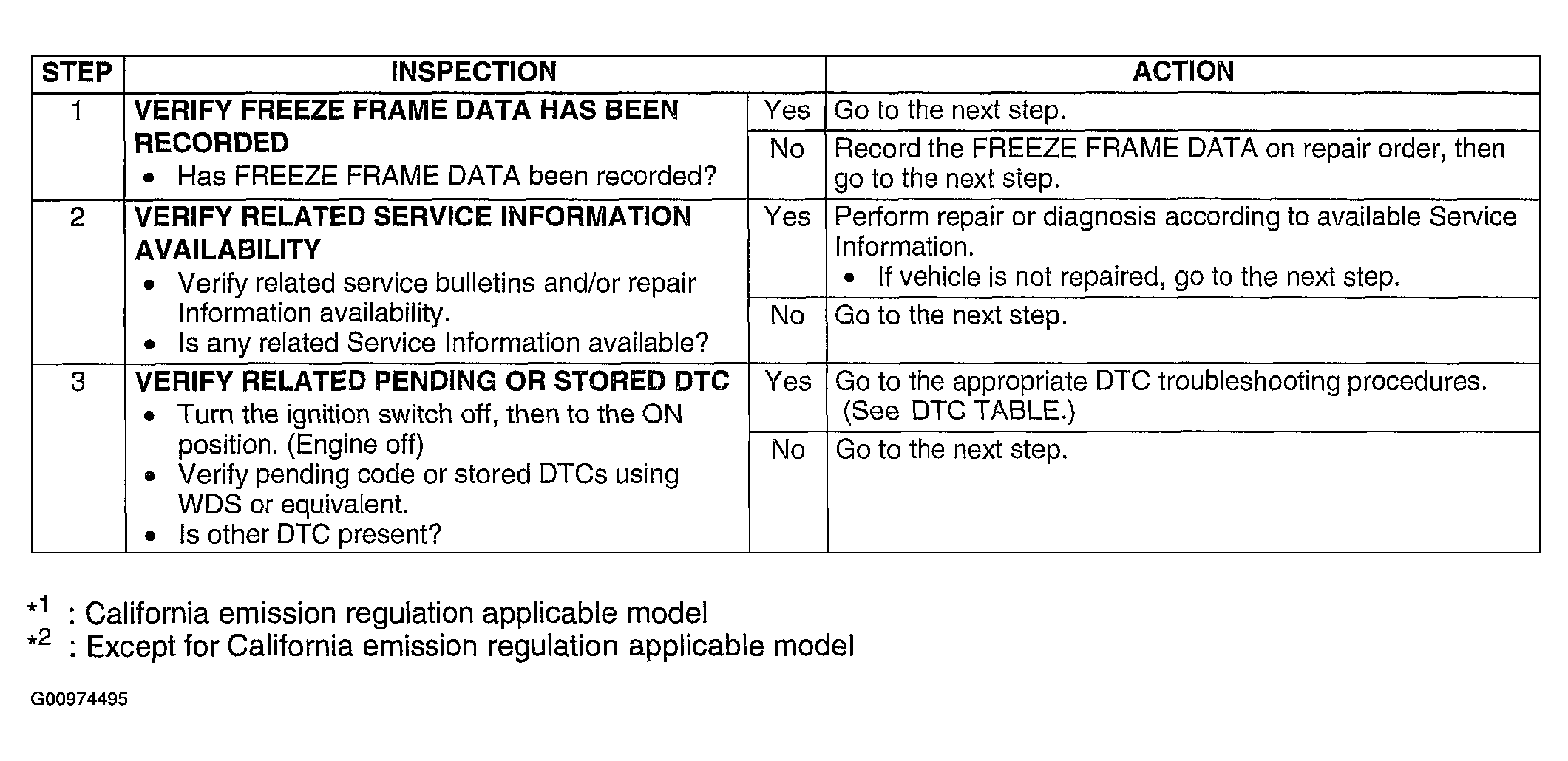

Fig 1: DTC P0138: Diagnostic Procedure Chart (Steps 1-3)
G00974495Courtesy of MAZDA MOTORS CORP.

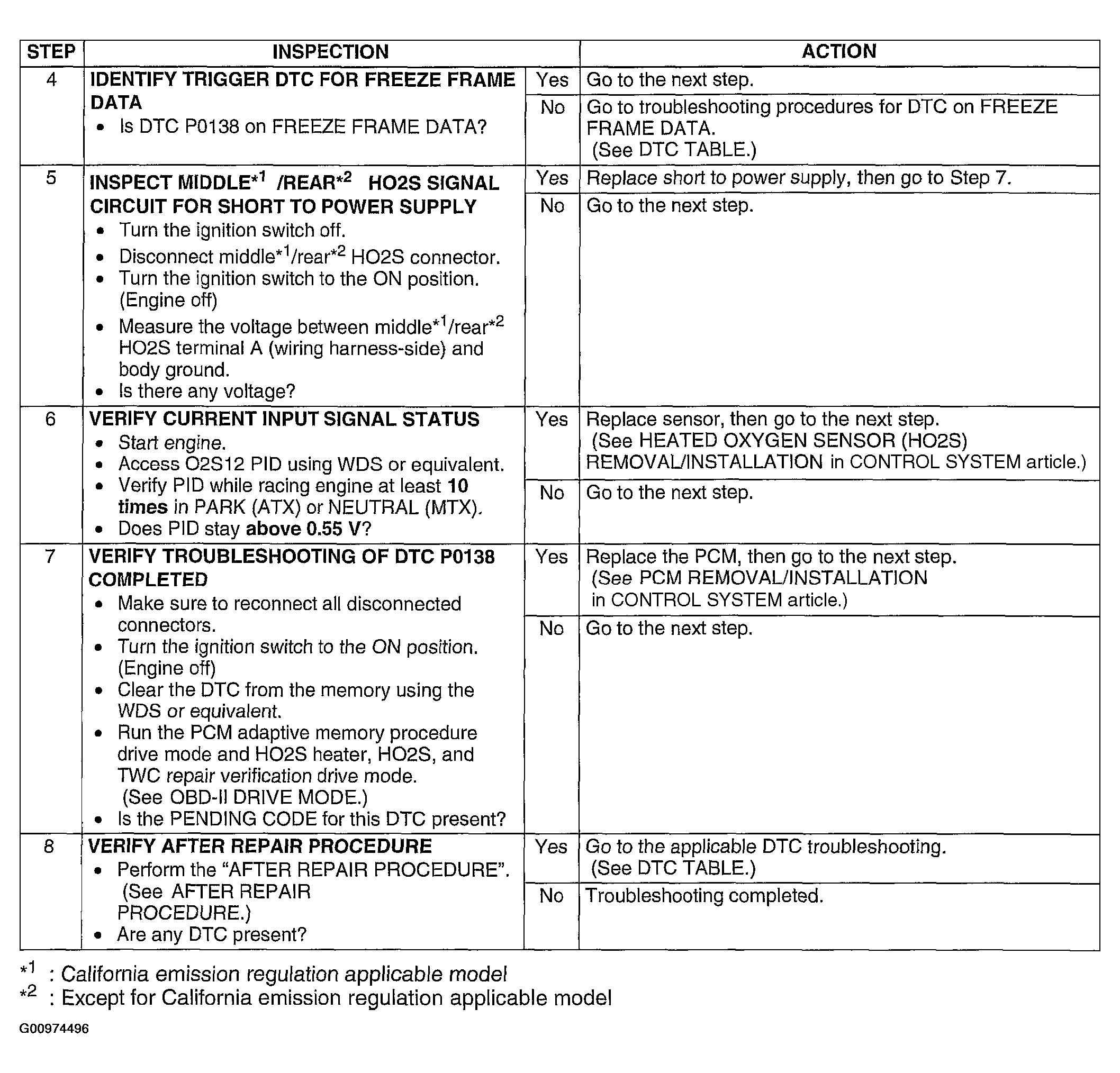

Fig 2: DTC P0138: Diagnostic Procedure Chart (Steps 4-8)
G00974496Courtesy of MAZDA MOTORS CORP.
