Diagnostic Procedure

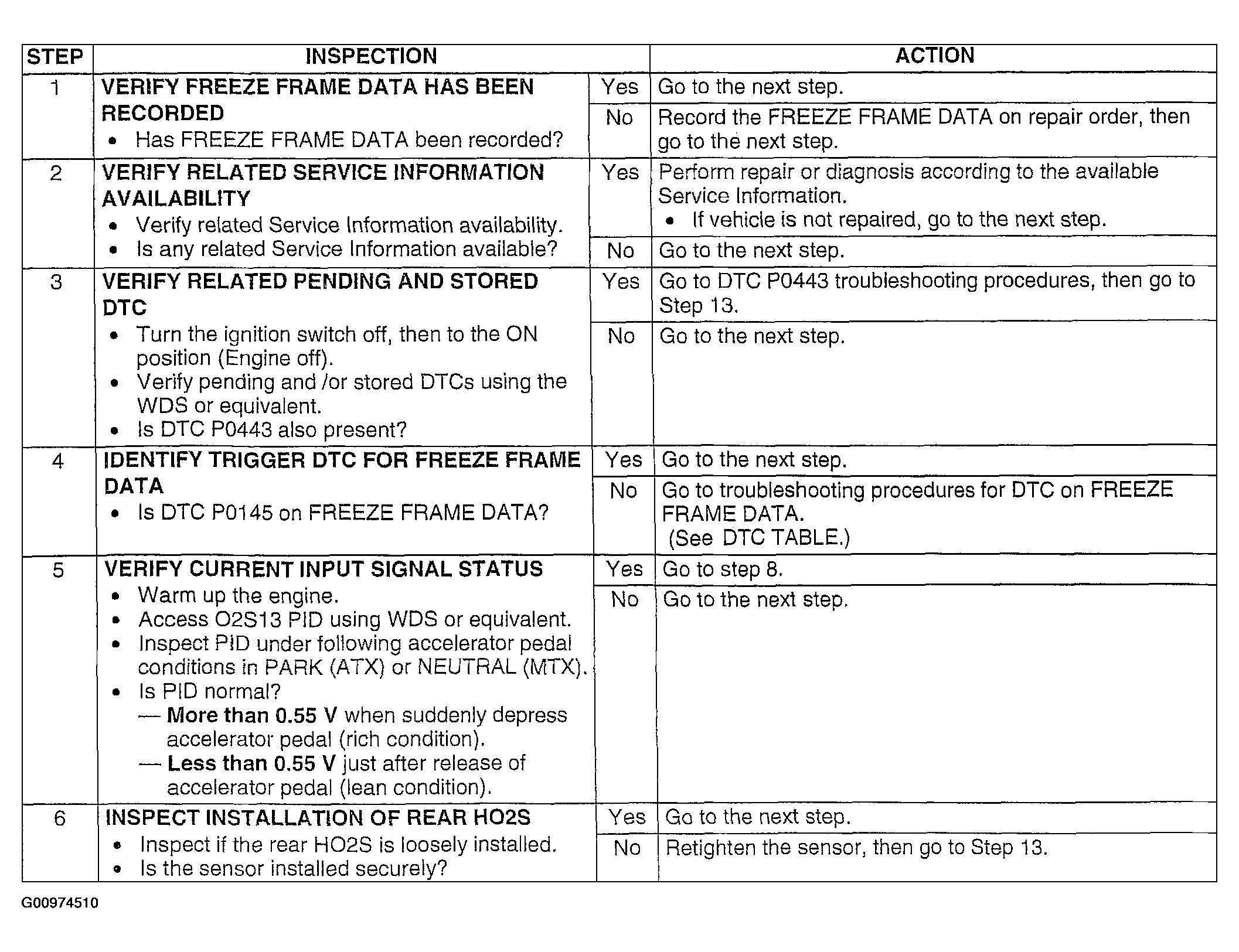

Fig 1: DTC P0145: Diagnostic Procedure Chart (Steps 1-6)
G00974510Courtesy of MAZDA MOTORS CORP.

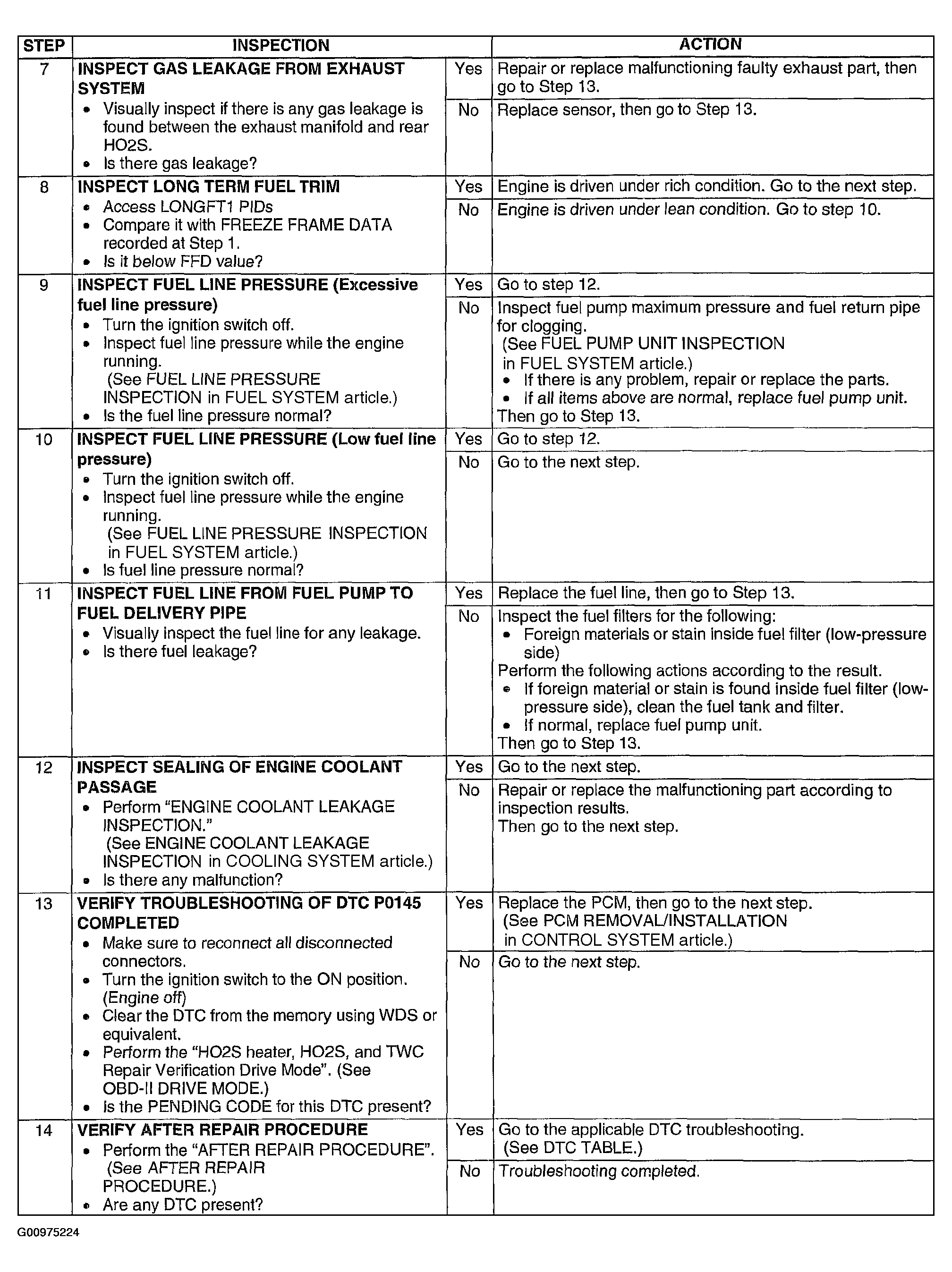

Fig 2: DTC P1045: Diagnostic Procedure Chart (Steps 7-14)
G00975224Courtesy of MAZDA MOTORS CORP.
