DTC P0223: TP Sensor No. 2 Circuit High Input: Notes

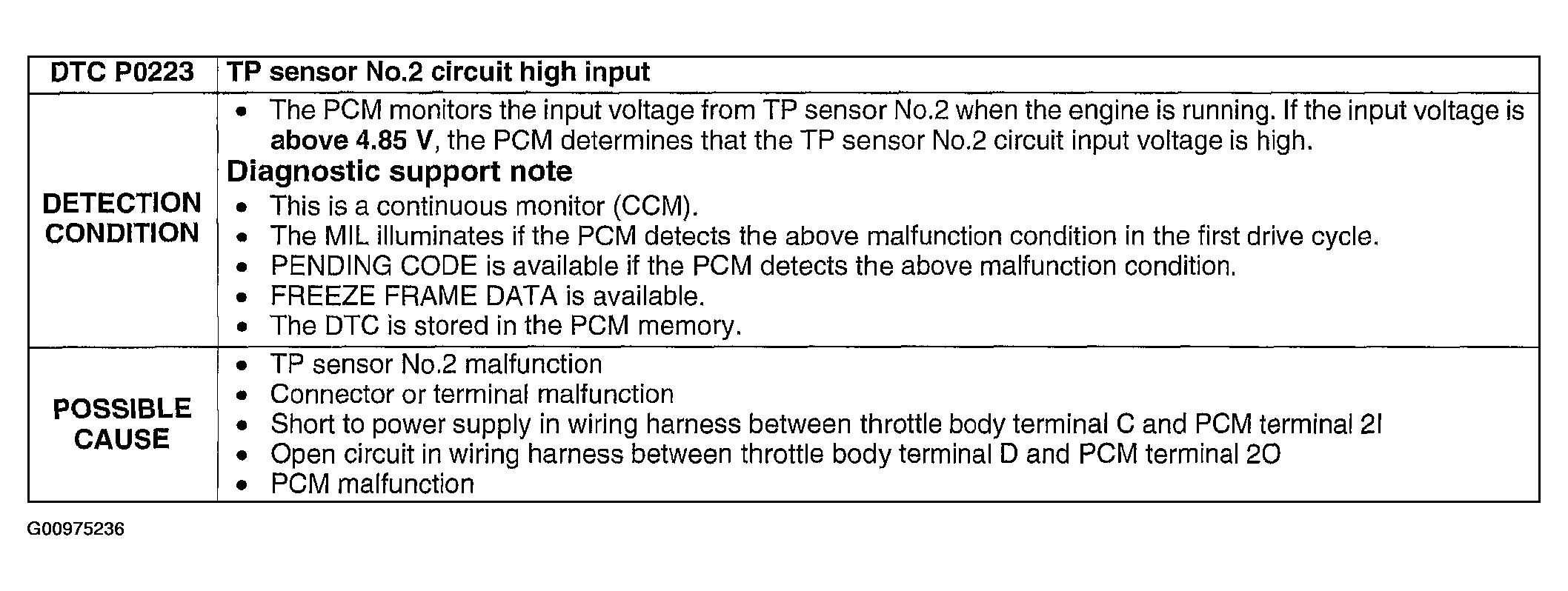

Fig 1: DTC P0223: Detection Condition & Possible Causes Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: DTC P0223: Detection Condition & Possible Causes Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
