DTC P0340: CMP Sensor Circuit Problem
›
Diagnostic procedure
Diagnostic procedure

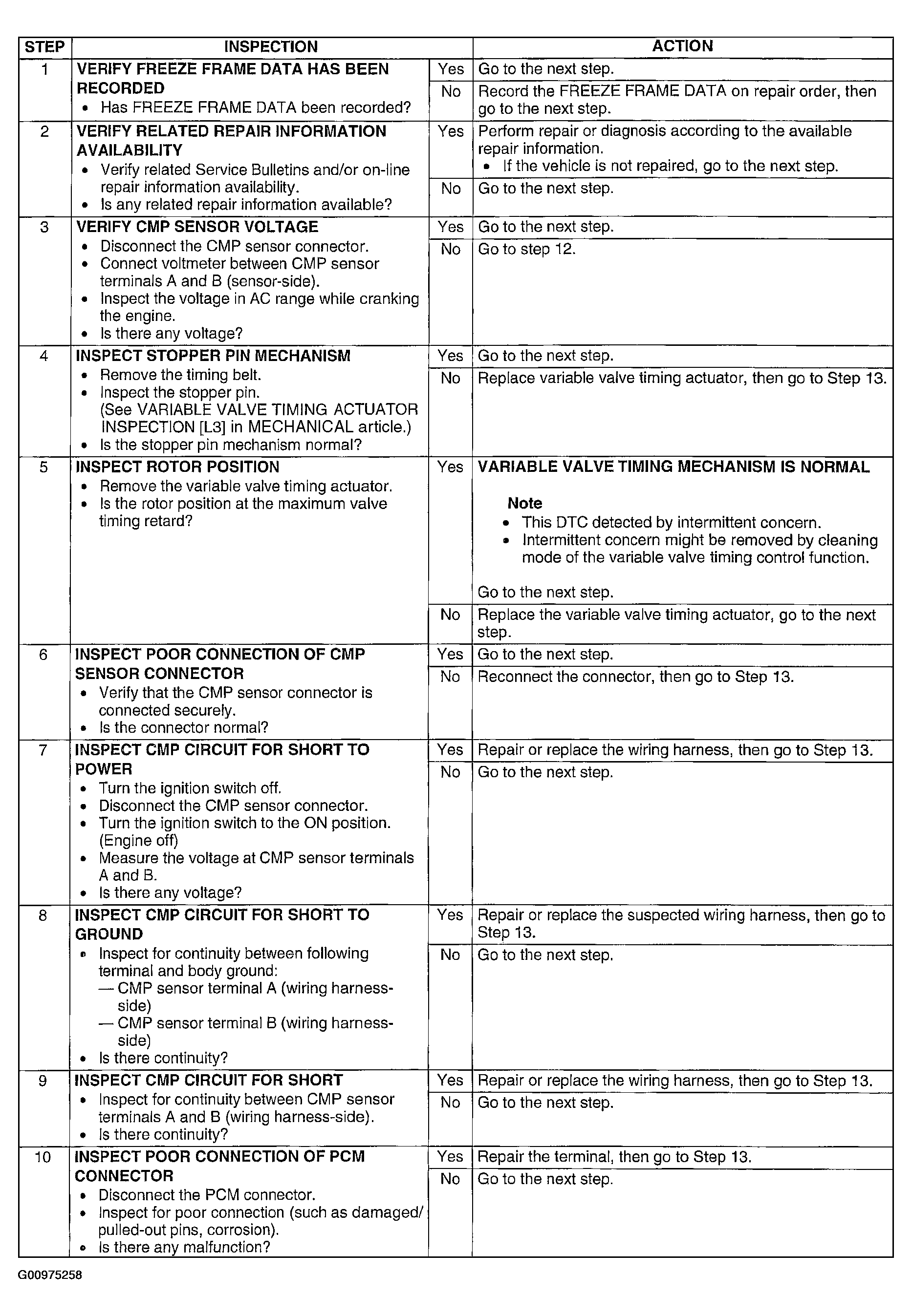

Fig 1: DTC P0340: Diagnostic Procedure Chart (Steps 1-10)
Courtesy of MAZDA MOTORS CORP.

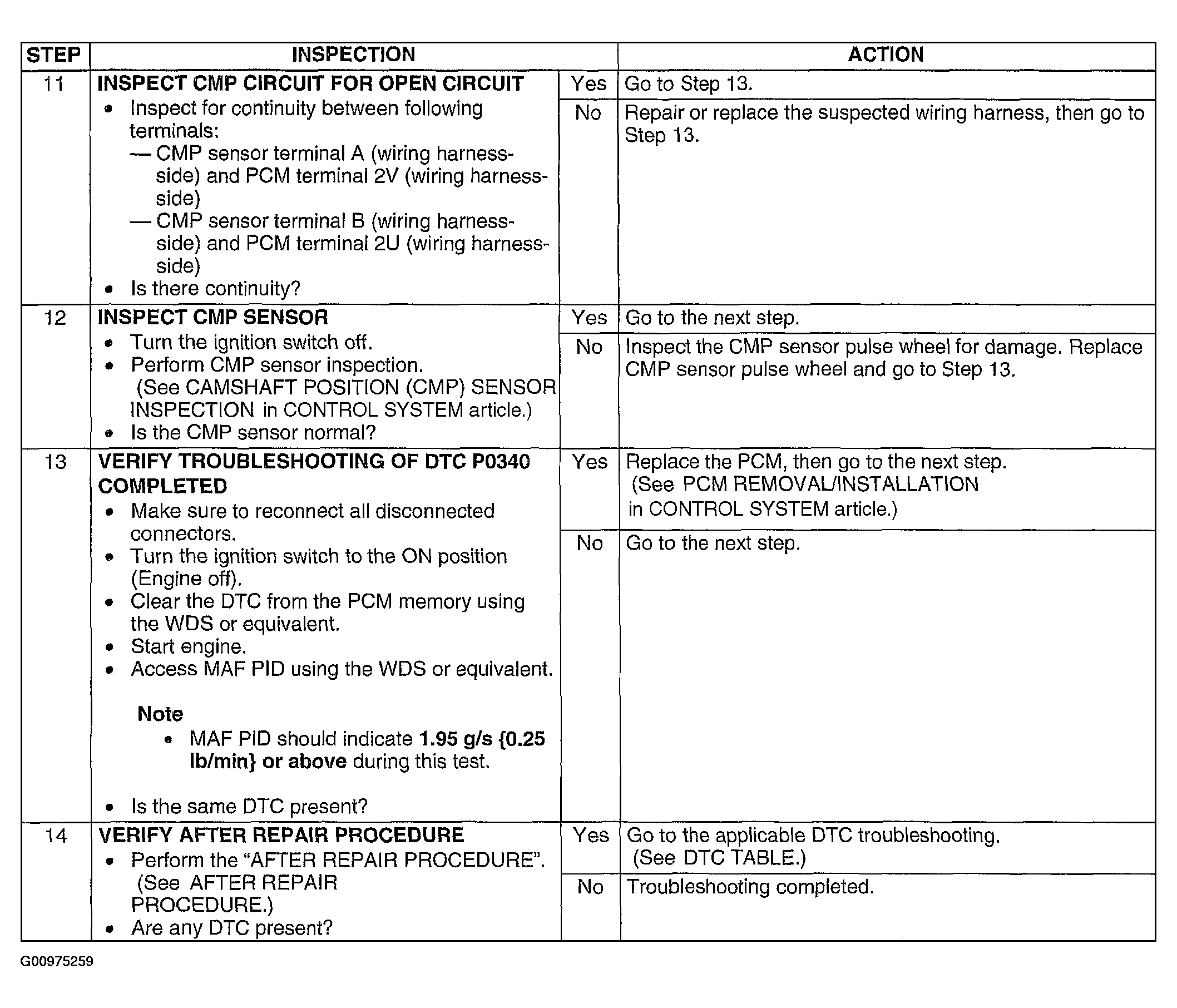

Fig 2: DTC P0340: Diagnostic Procedure Chart (Steps 11-14)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
