DTC P0421: Catalyst System Efficiency Below Threshold
›
Diagnostic procedure
Diagnostic procedure

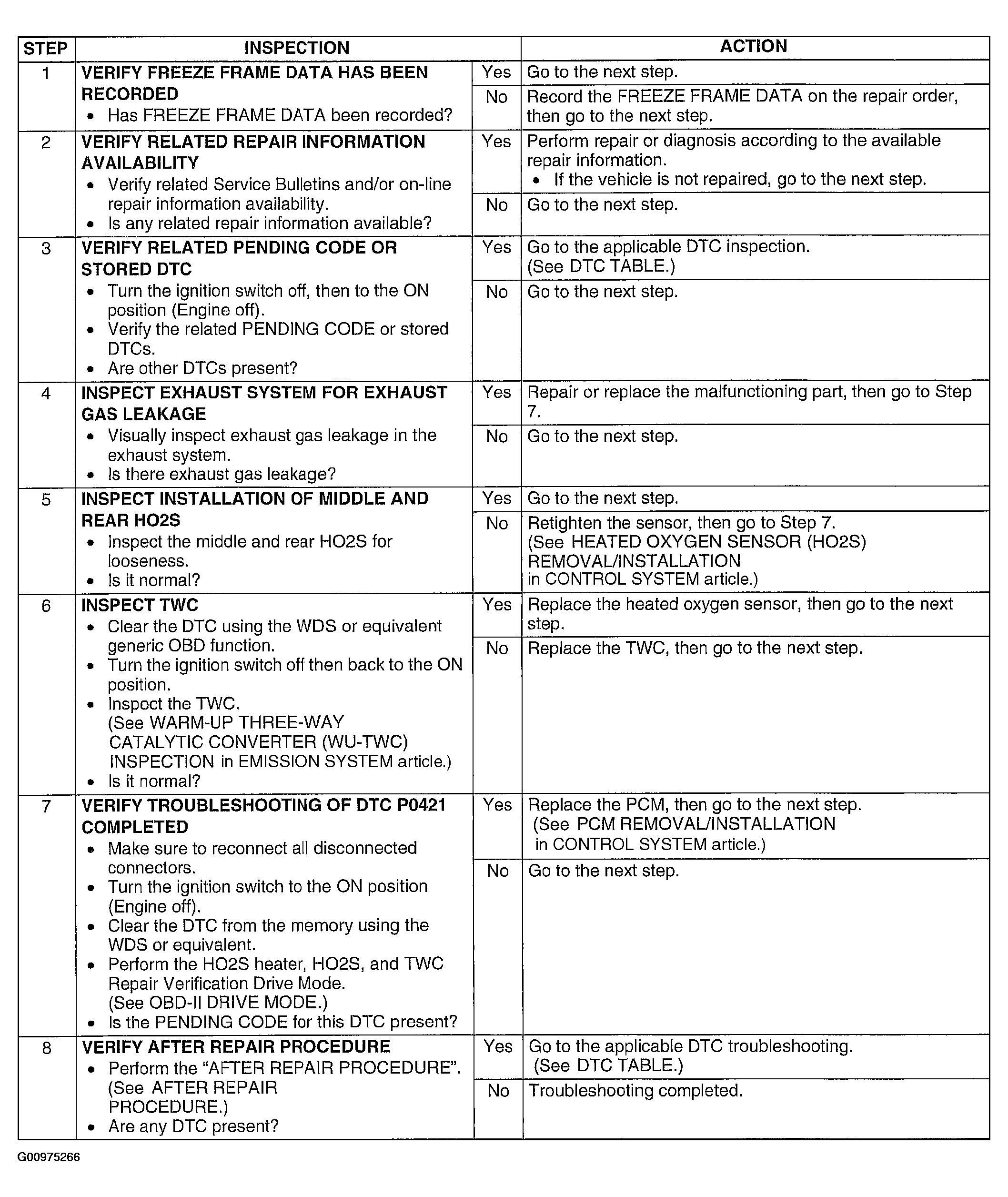

Fig 1: DTC P0421: Diagnostic Procedure Chart (Steps 1-8)
Courtesy of MAZDA MOTORS CORP.

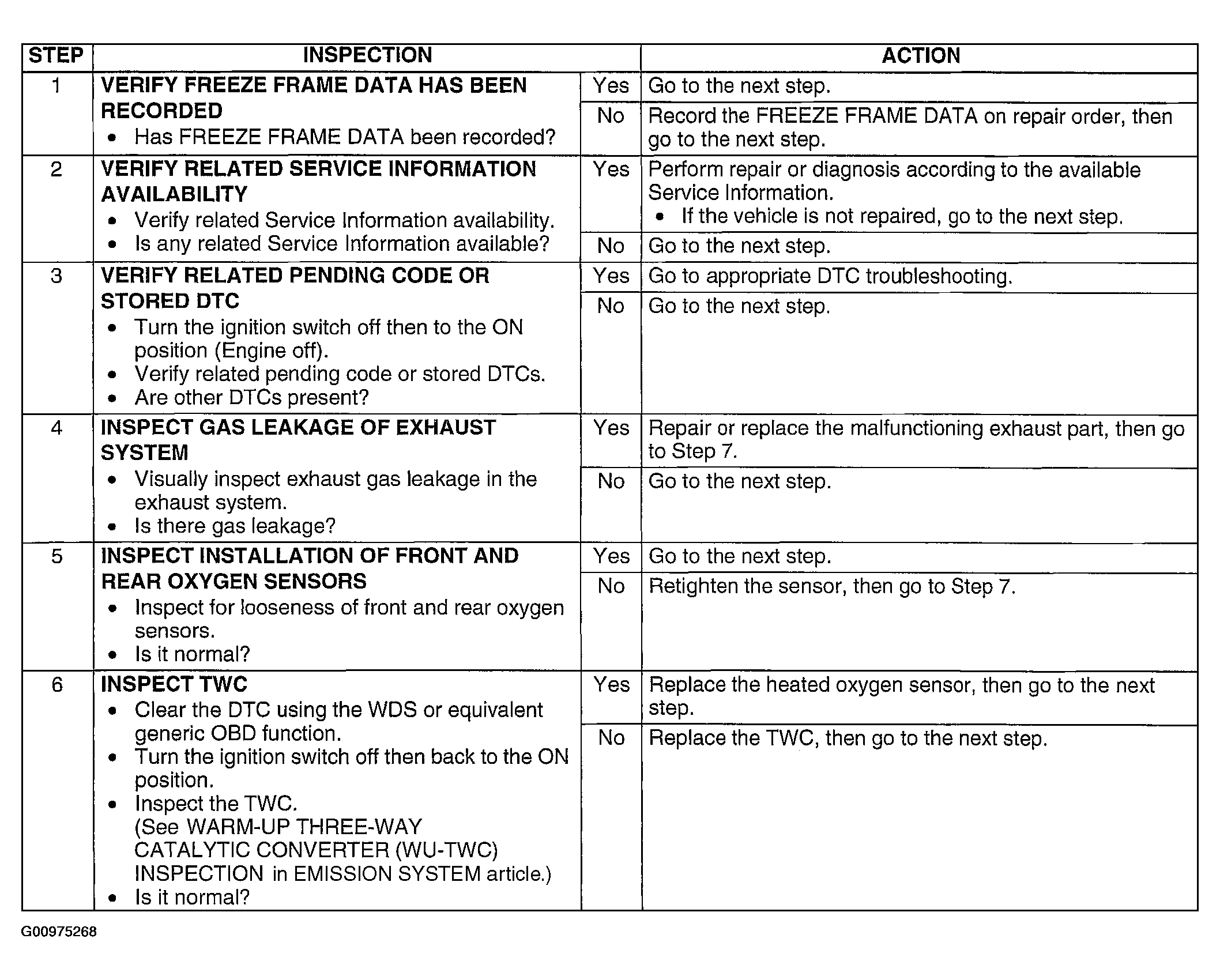

Fig 1: DTC P0421: Diagnostic Procedure Chart (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.

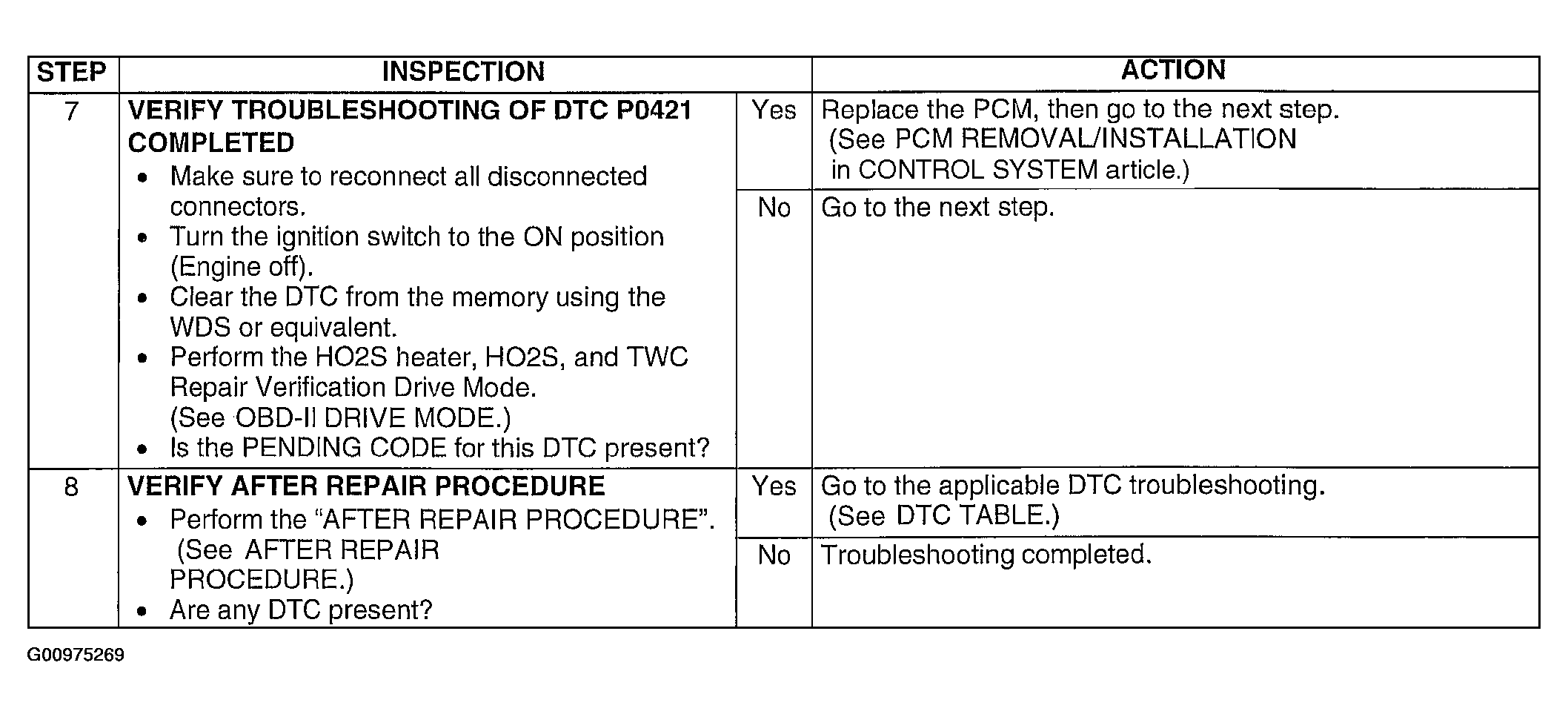

Fig 2: DTC P0421: Diagnostic Procedure Chart (Steps 7 & 8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
