DTC P0480: Fan Control Circuit Problem: Notes

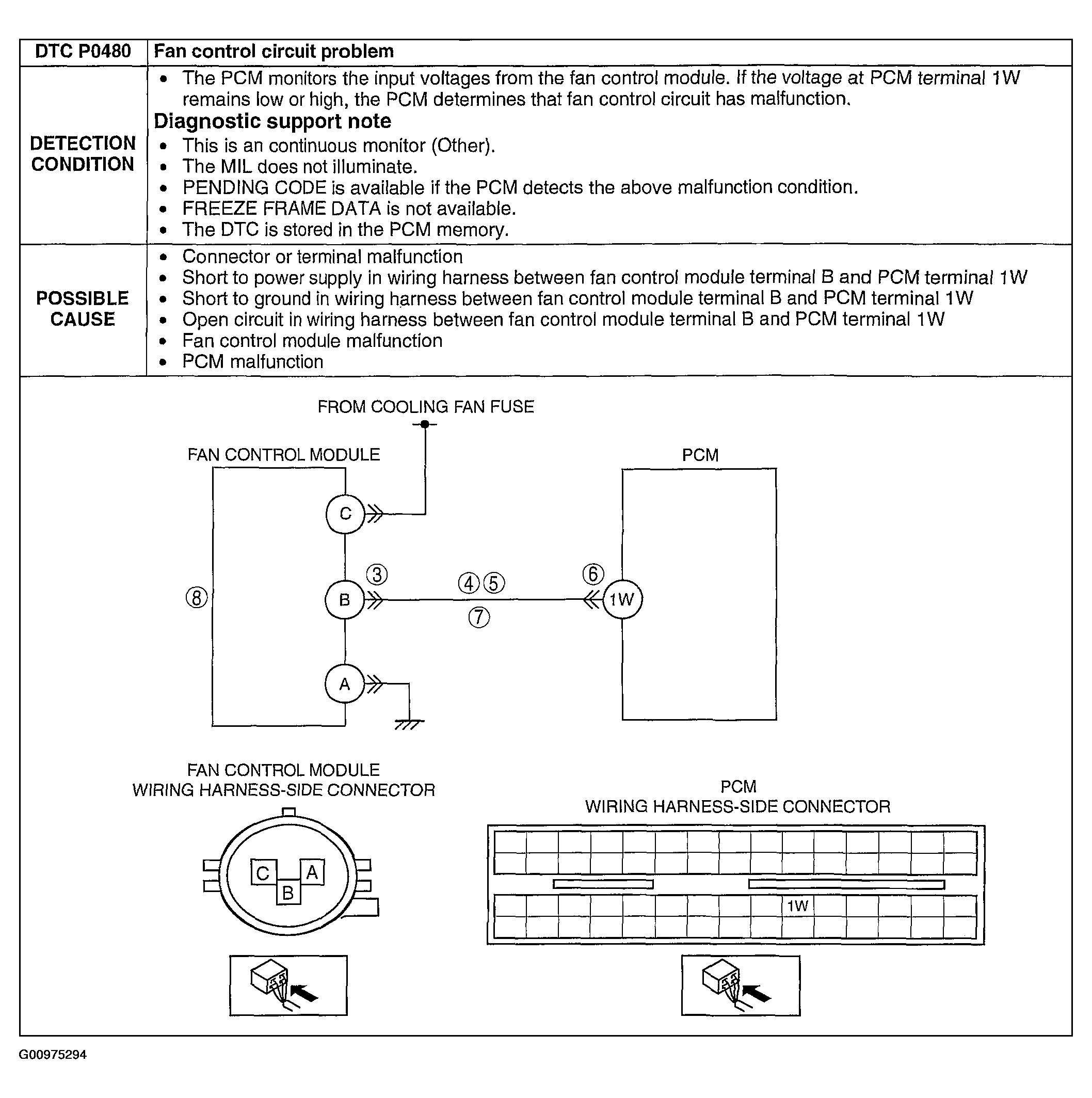

Fig 1: DTC P0480: Detection Condition & Possible Causes Chart
G00975294Courtesy of MAZDA MOTORS CORP.
