DTC P0500: VSS Circuit Problem
›
Diagnostic procedure
Diagnostic procedure

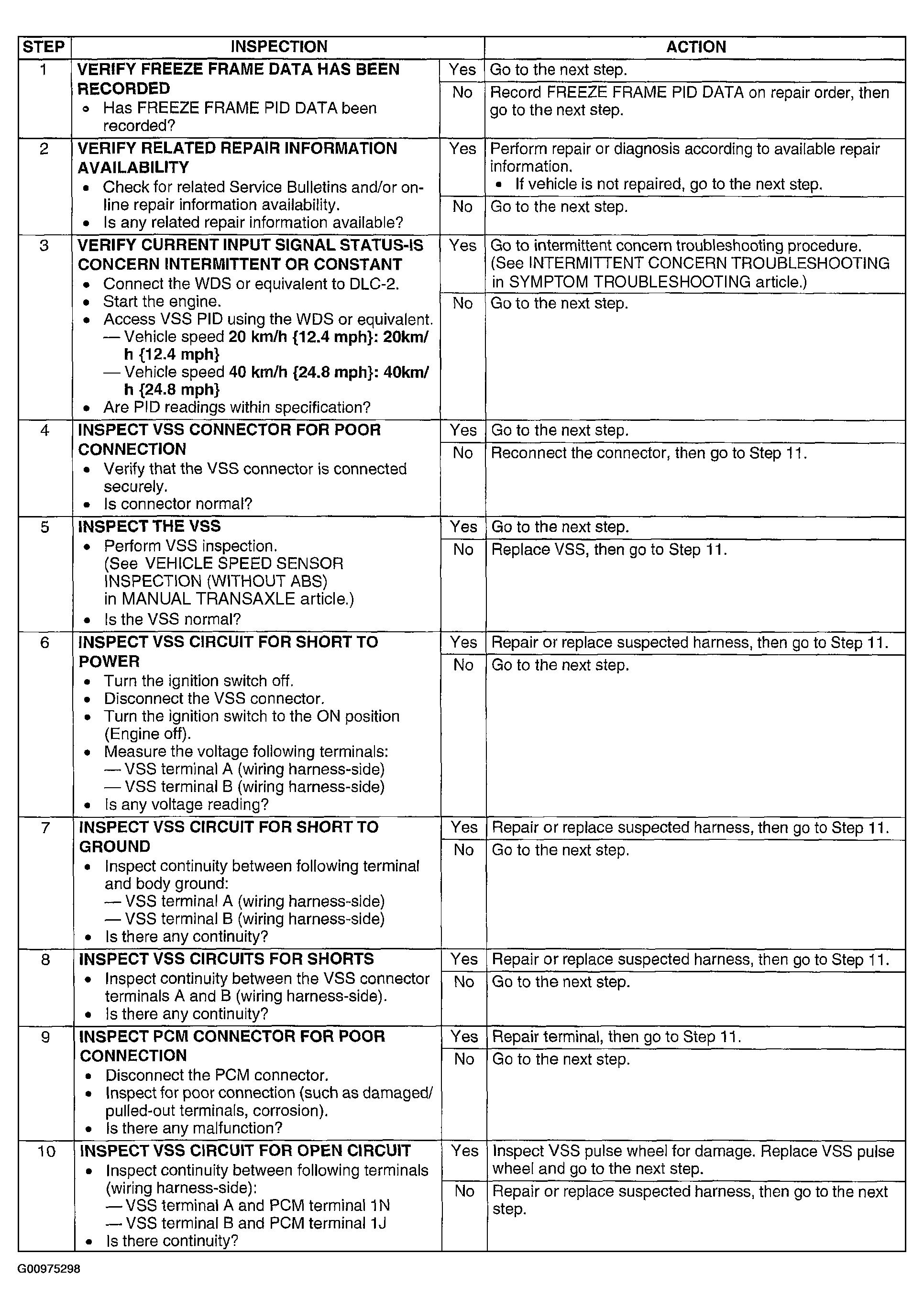

Fig 1: DTC P0500: Diagnostic Procedure Chart (Steps 1-10)
Courtesy of MAZDA MOTORS CORP.

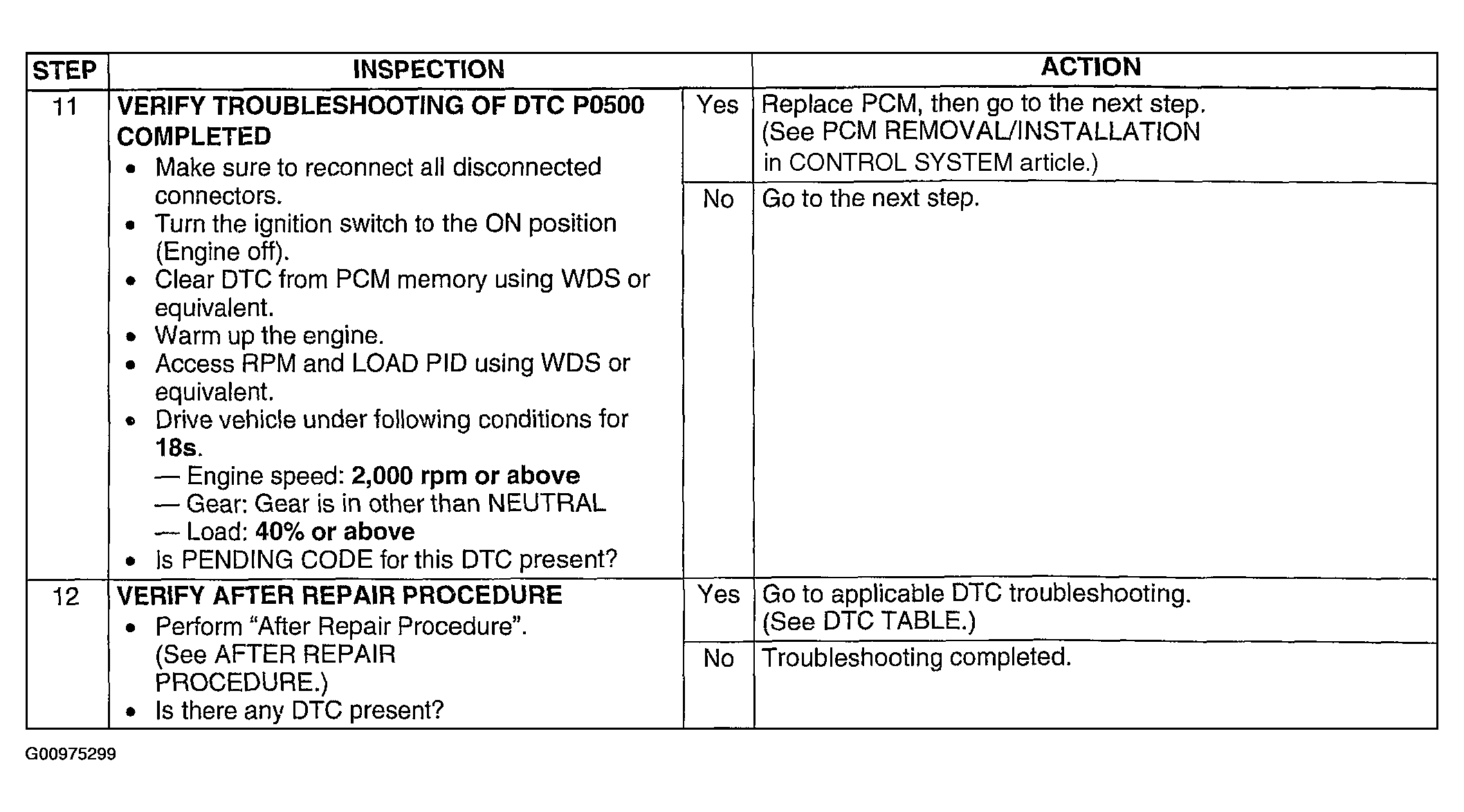

Fig 2: DTC P0500: Diagnostic Procedure Chart (Steps 11 & 12)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
