DTC P0505: IAC System Problem
›
Diagnostic procedure
Diagnostic procedure

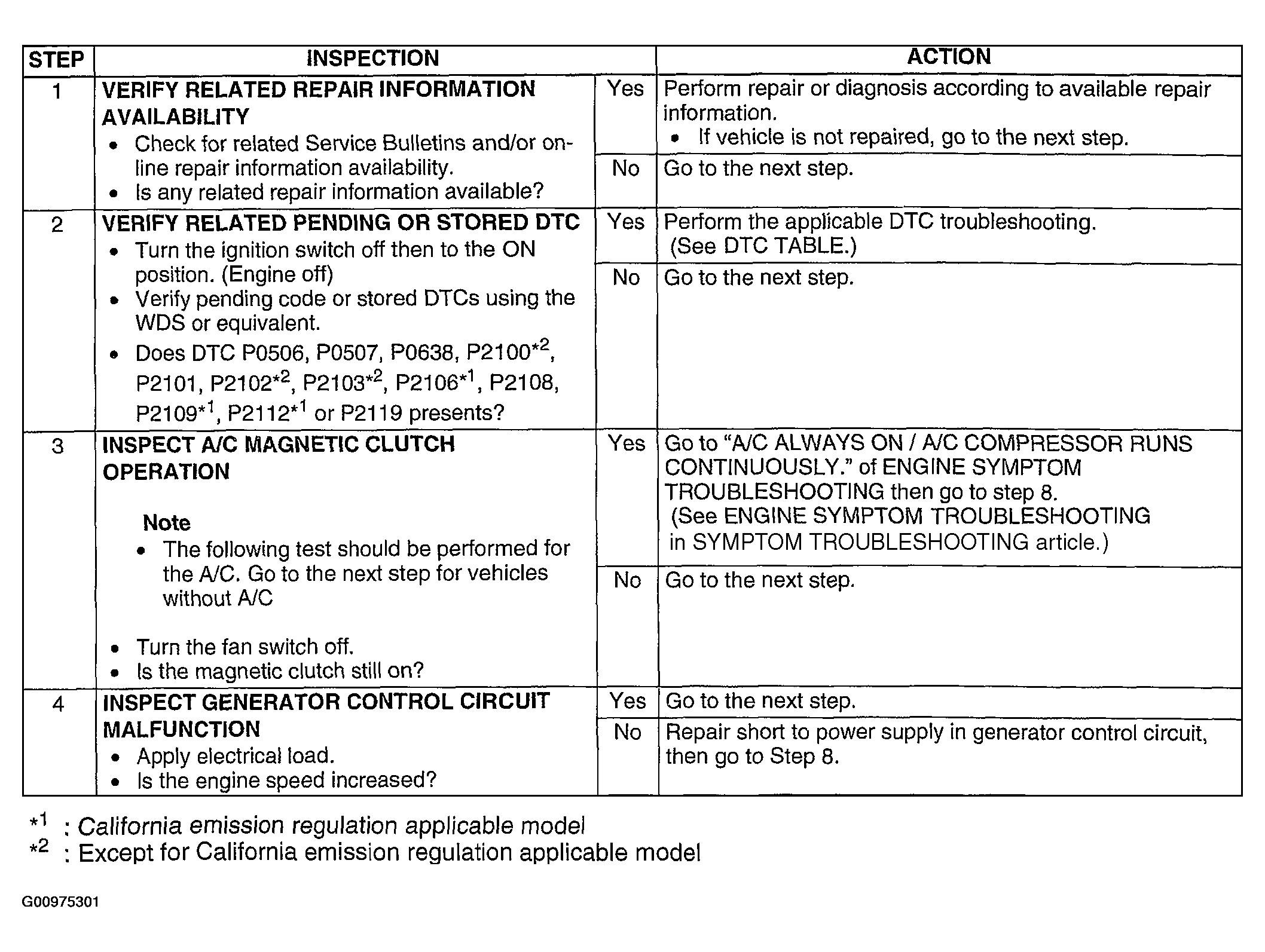

Fig 1: DTC P0505: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

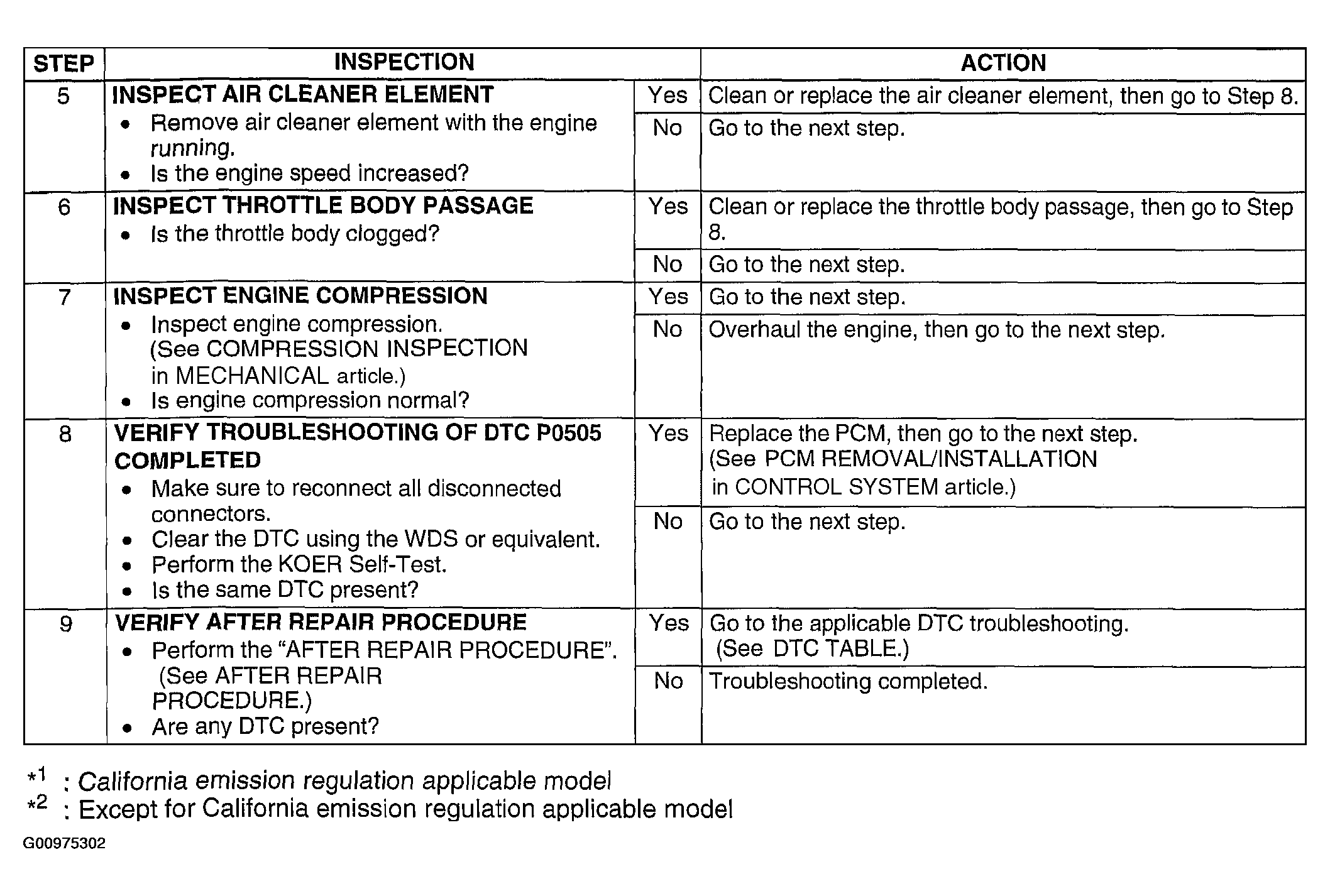

Fig 2: DTC P0505: Diagnostic Procedure Chart (Steps 5-9)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
