DTC P0571: Brake Switch Circuit Problem
›
Diagnostic procedure
Diagnostic procedure

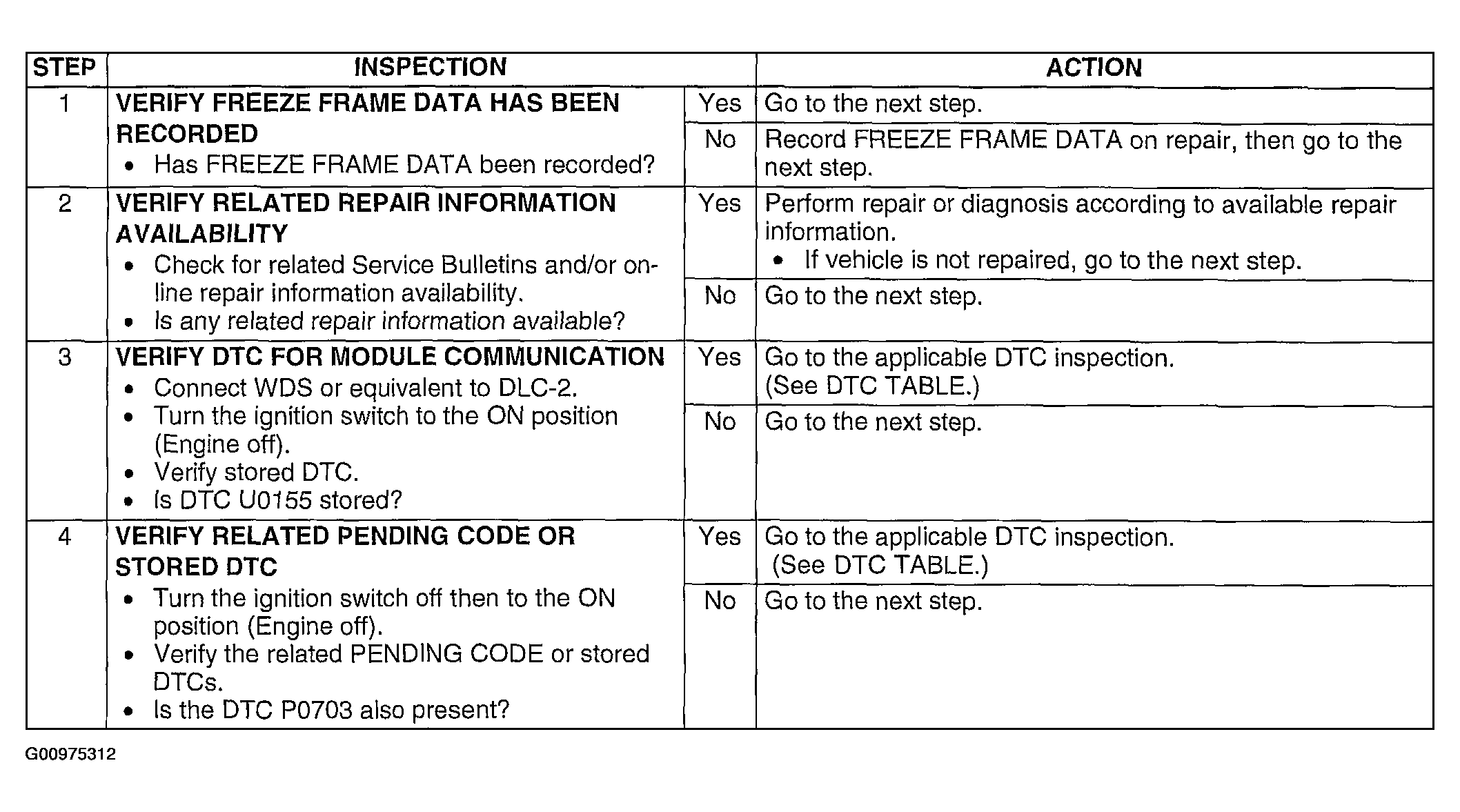

Fig 1: DTC P0571: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

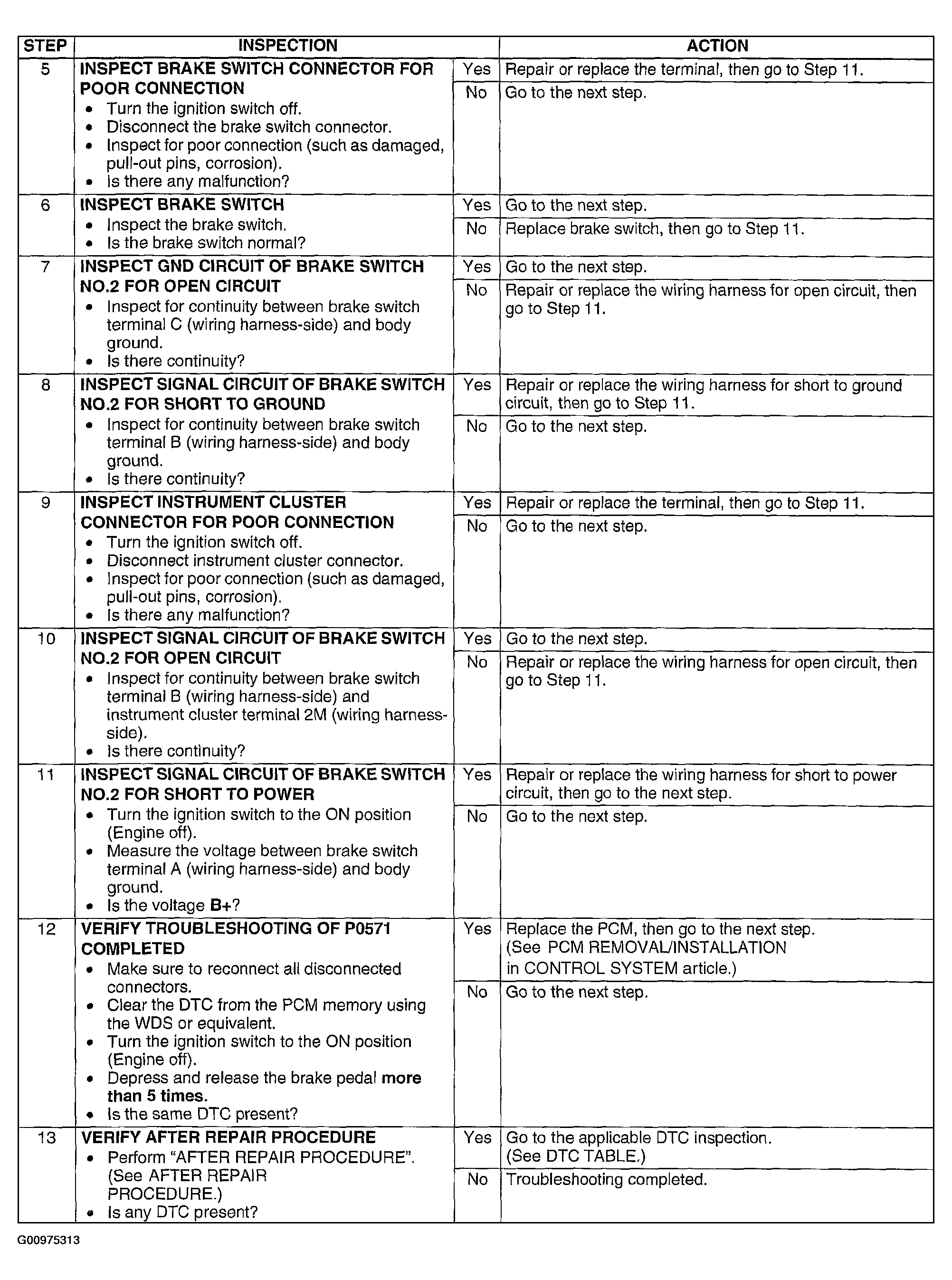

Fig 2: DTC P0571: Diagnostic Procedure Chart (Steps 5-13)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
