DTC P0607: Pcm Performance Problem
›
Diagnostic procedure
Diagnostic procedure

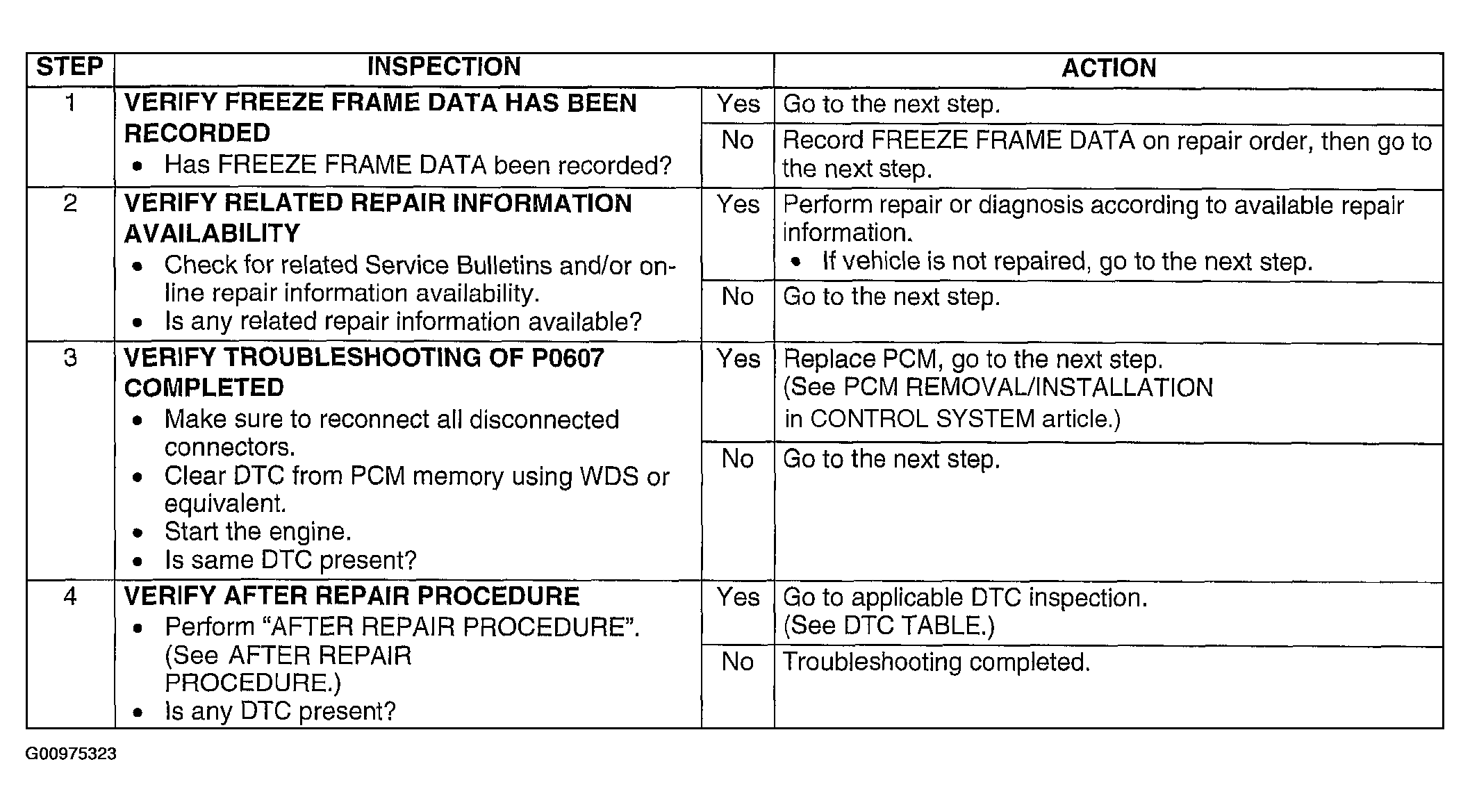

Fig 1: DTC P0607: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
