DTC P1260: Immobilizer System Problem
›
Diagnostic procedure
Diagnostic procedure

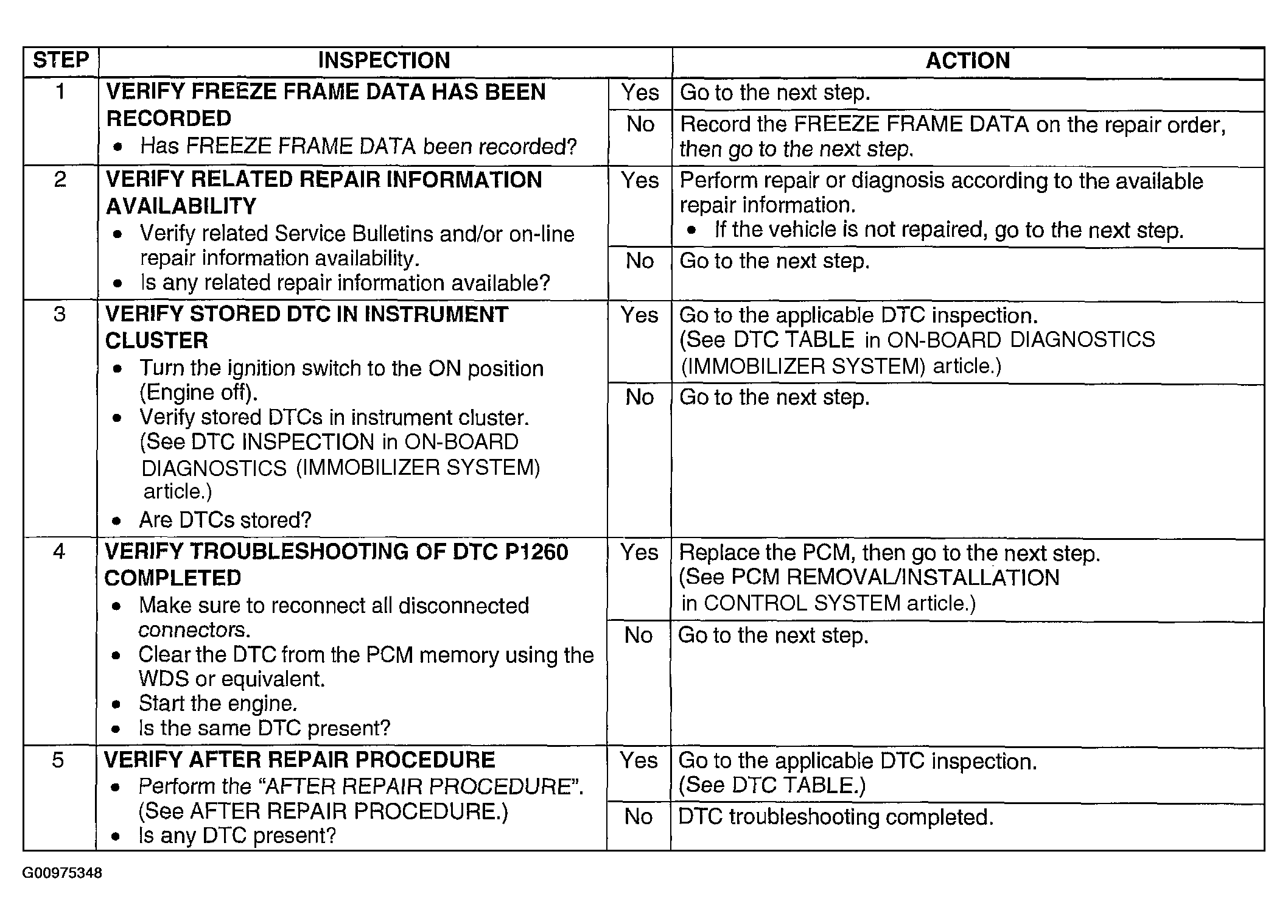

Fig 1: DTC P1260: Diagnostic Procedure Chart (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
