DTC P2009: Variable Tumble Solenoid Valve Circuit Low Input: Notes

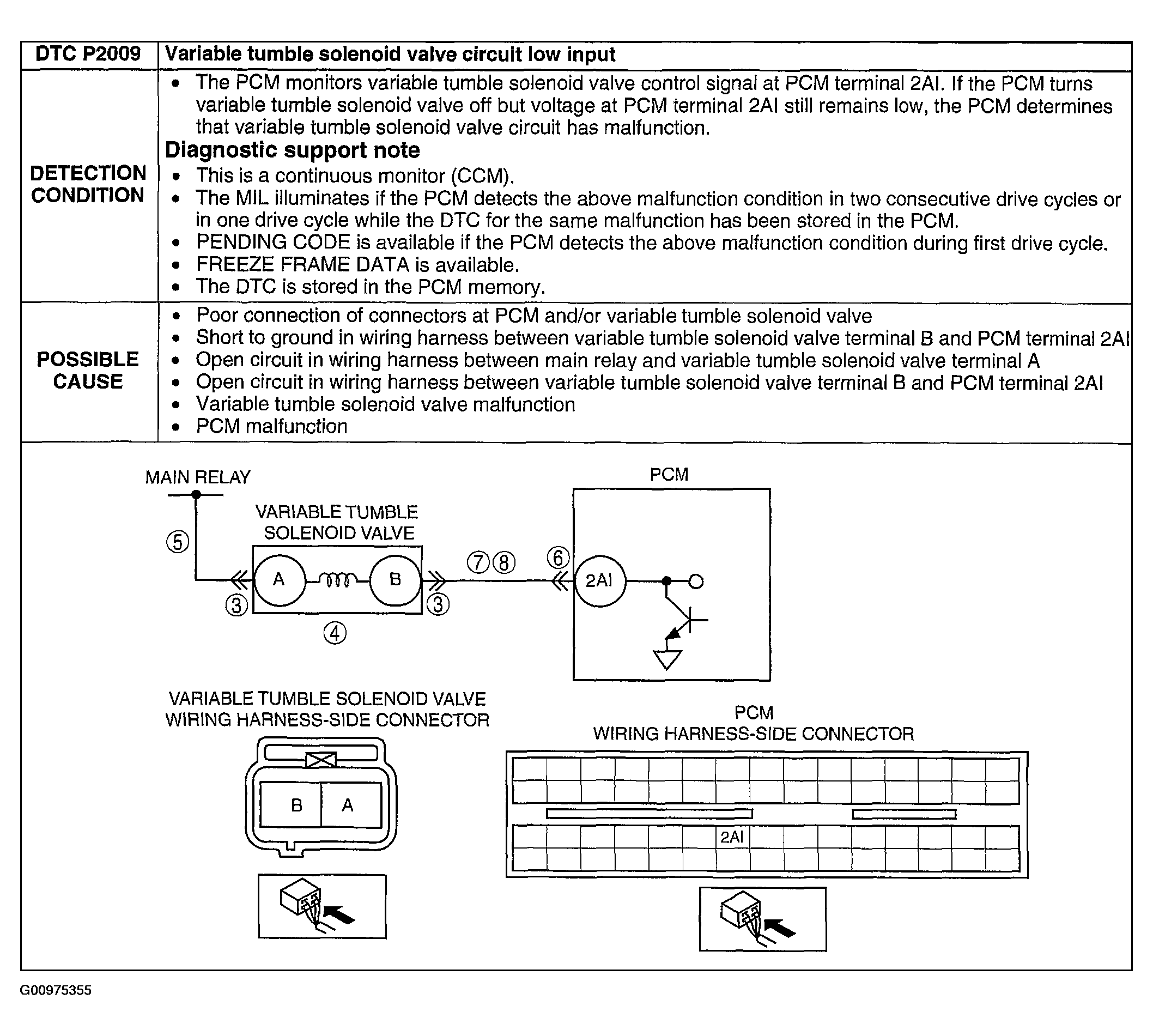

Fig 1: DTC P2009: Detection Condition & Possible Causes Chart
G00975355Courtesy of MAZDA MOTORS CORP.
