Home › Mazda › 2004 › 3 i, Automatic › Repair and Diagnosis › Engine Performance › System › On-Board Diagnostic [Engine Control System] › DTC P2088: Oil Control Valve Circuit Low › Diagnostic procedure

Diagnostic procedure

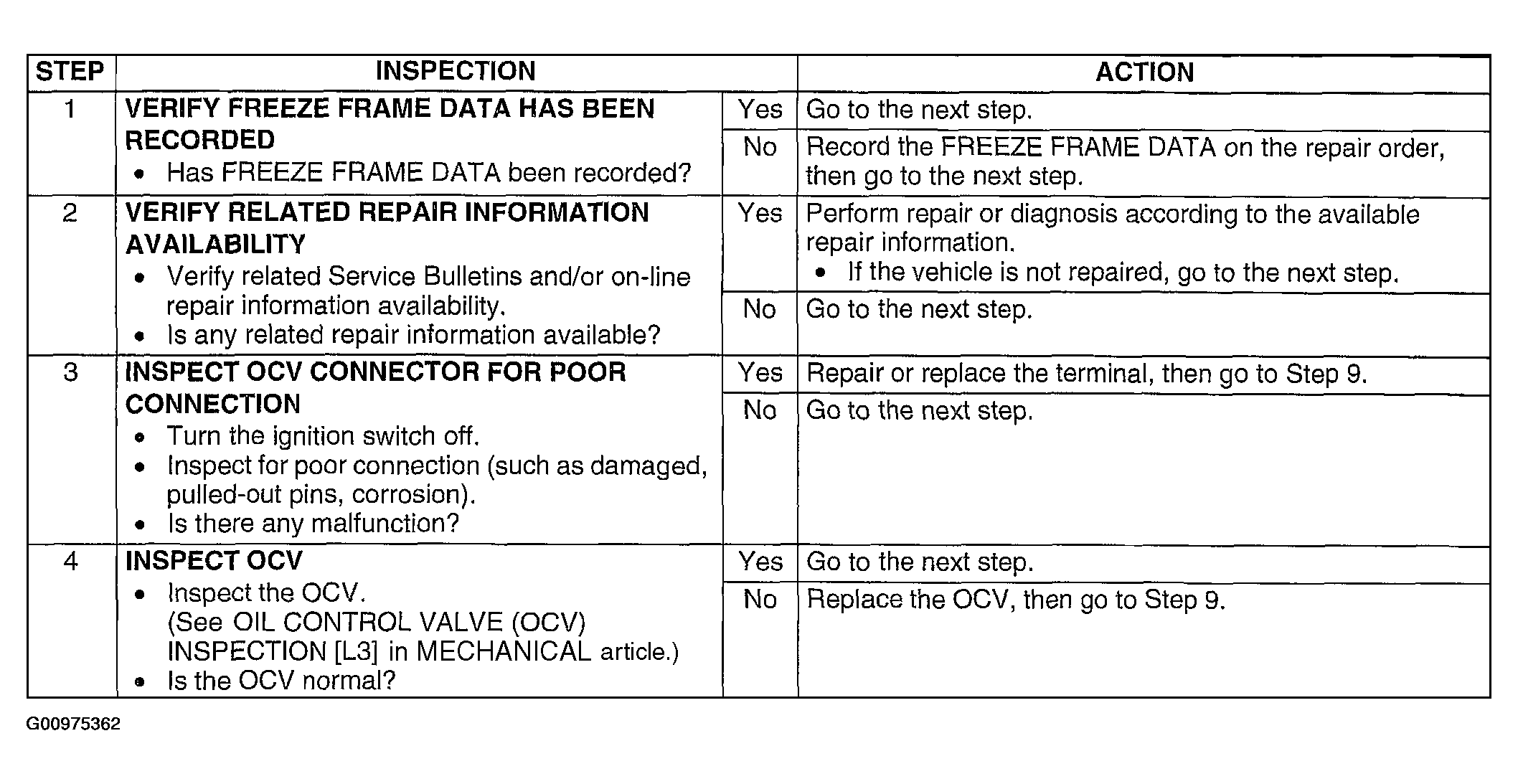

Fig 1: DTC P2088: Diagnostic Procedure Chart (Steps 1-4)
G00975362Courtesy of MAZDA MOTORS CORP.

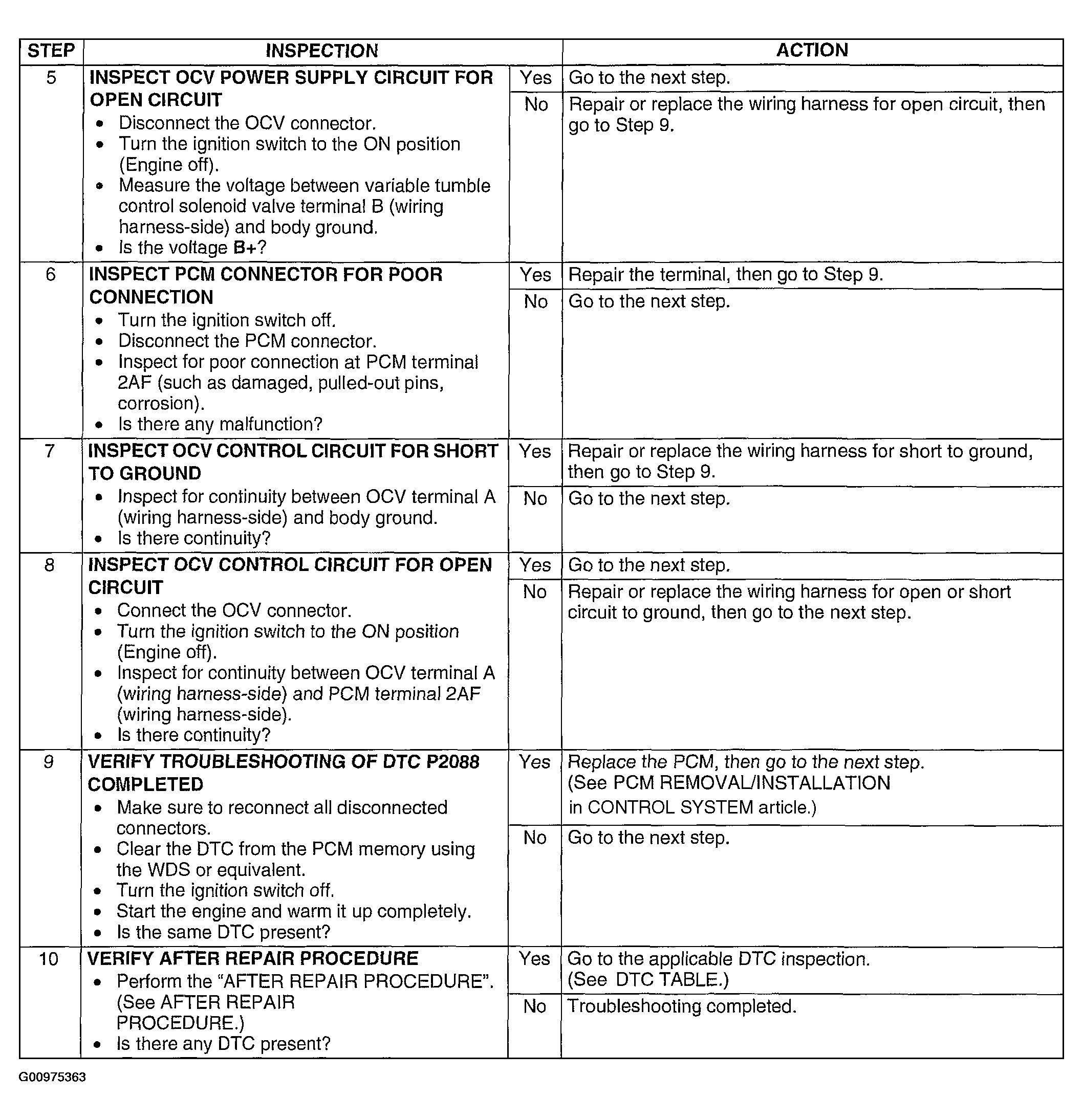

Fig 2: DTC P2088: Diagnostic Procedure Chart (Steps 5-10)
G00975363Courtesy of MAZDA MOTORS CORP.
