DTC P2089: Oil Control Valve Circuit High
›
Diagnostic procedure
Diagnostic procedure

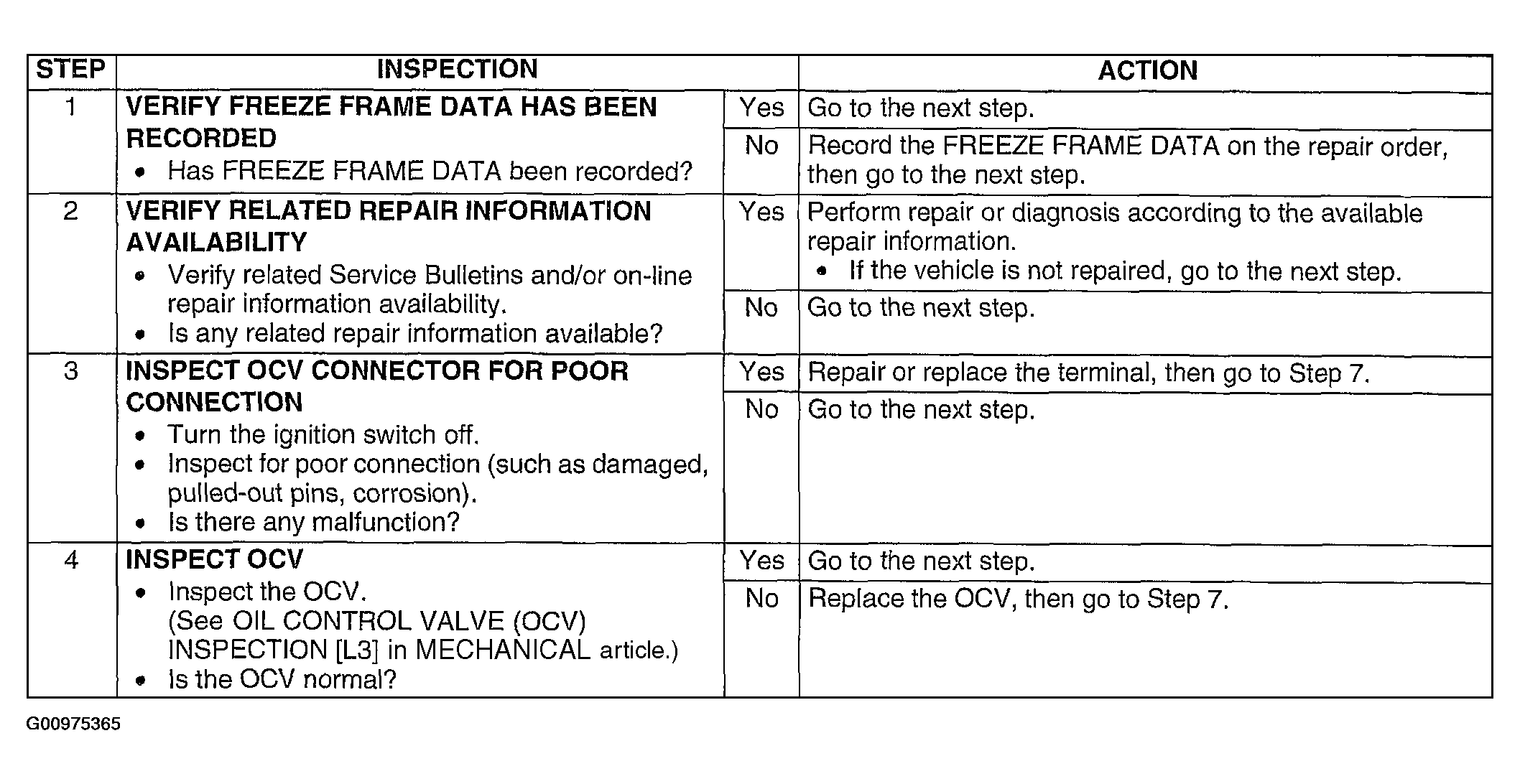

Fig 1: DTC P2089: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

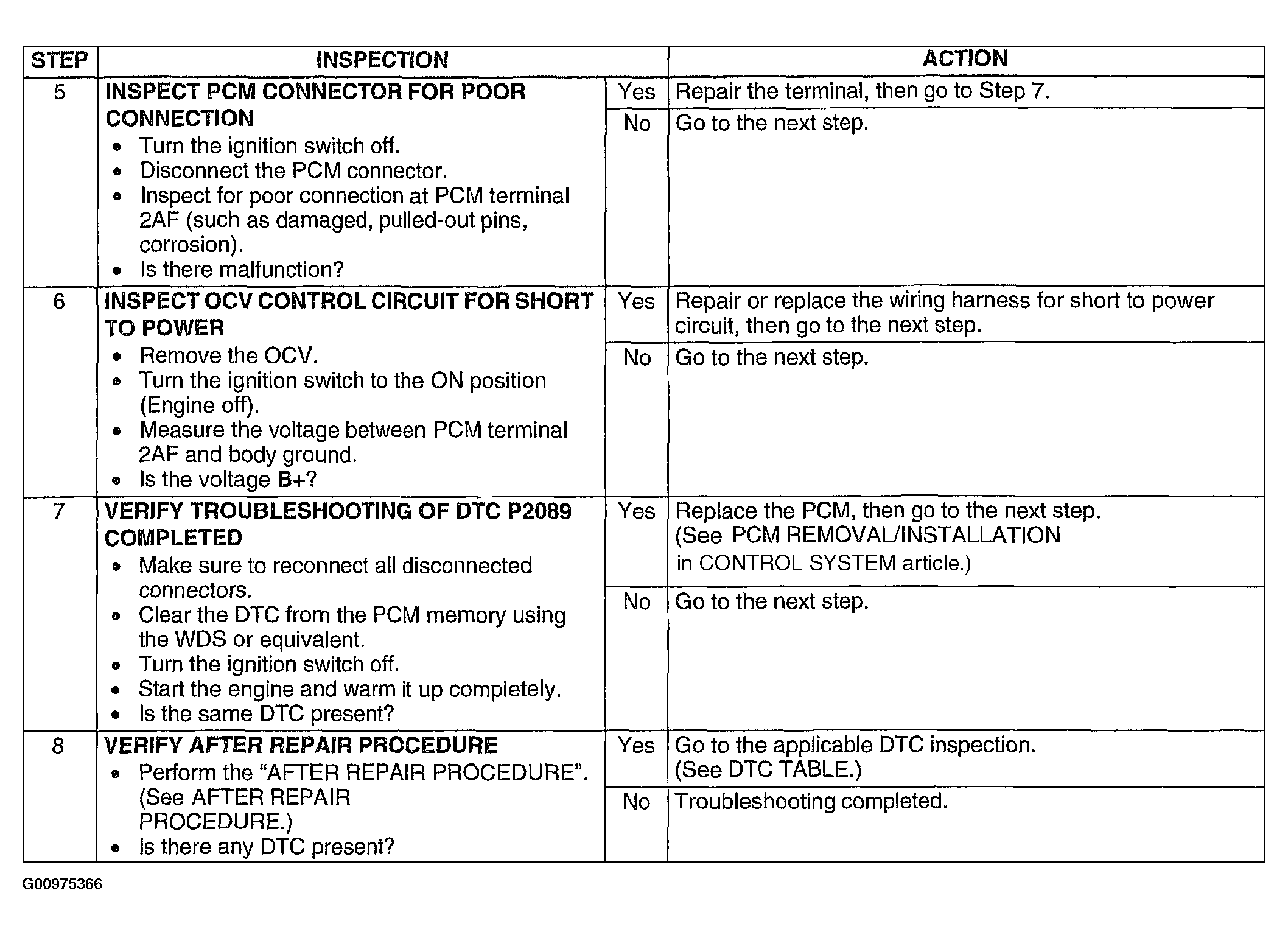

Fig 2: DTC P2089: Diagnostic Procedure Chart (Steps 5-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
