DTC P2123: Accelerator Pedal Position Sensor No. 1 Circuit High Input
›
Diagnostic procedure
Diagnostic procedure

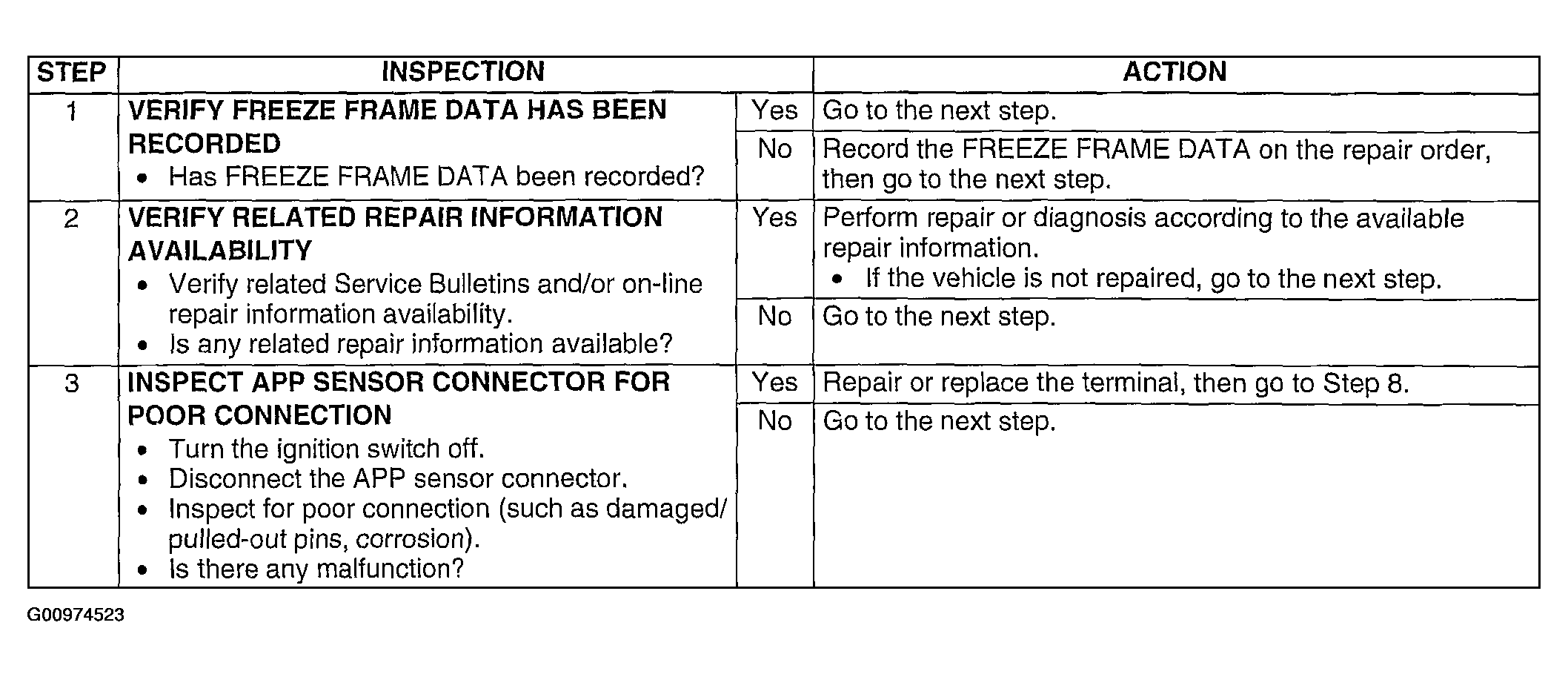

Fig 1: DTC P2123: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

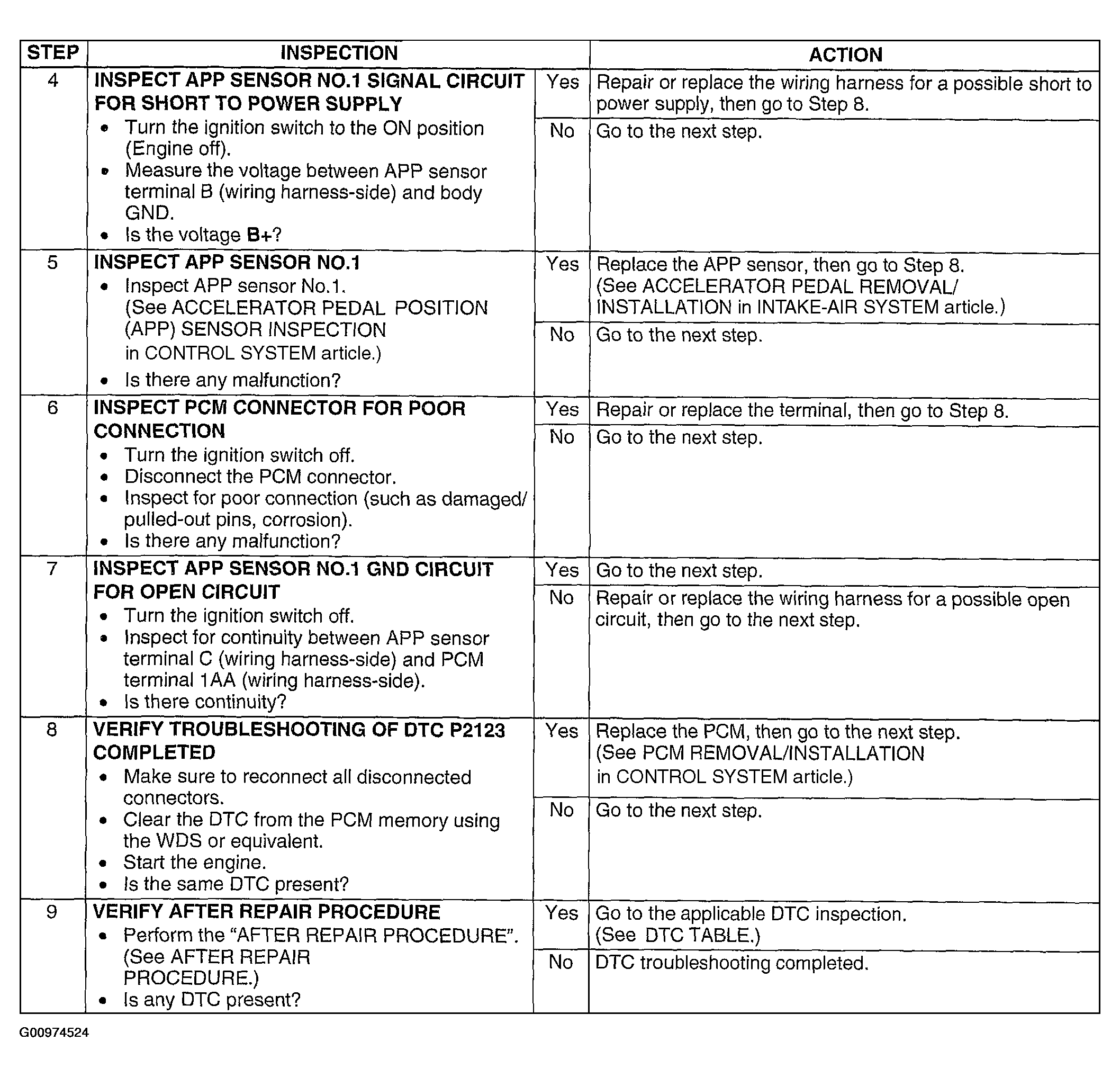

Fig 2: DTC P2123: Diagnostic Procedure Chart (Steps 4-9)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
