DTC P2196: Front Ho2S Signal Stuck Rich
›
California Emission Regulation Applicable Model
California Emission Regulation Applicable Model

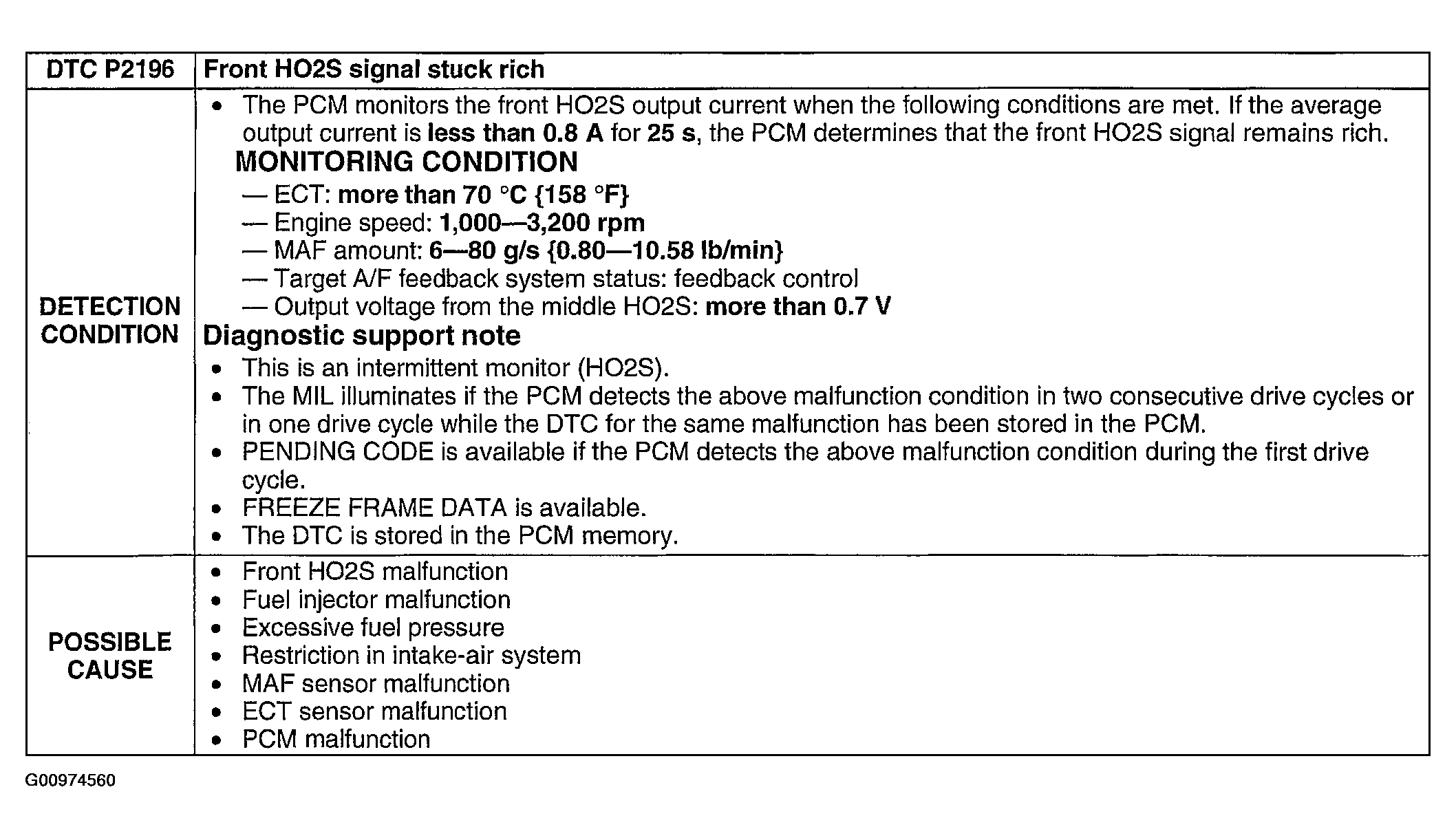

Fig 1: DTC P2196: Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
