DTC P2405: EVAP System Leak Detection Pump Sense Circuit Low Input
›
Diagnostic procedure
Diagnostic procedure

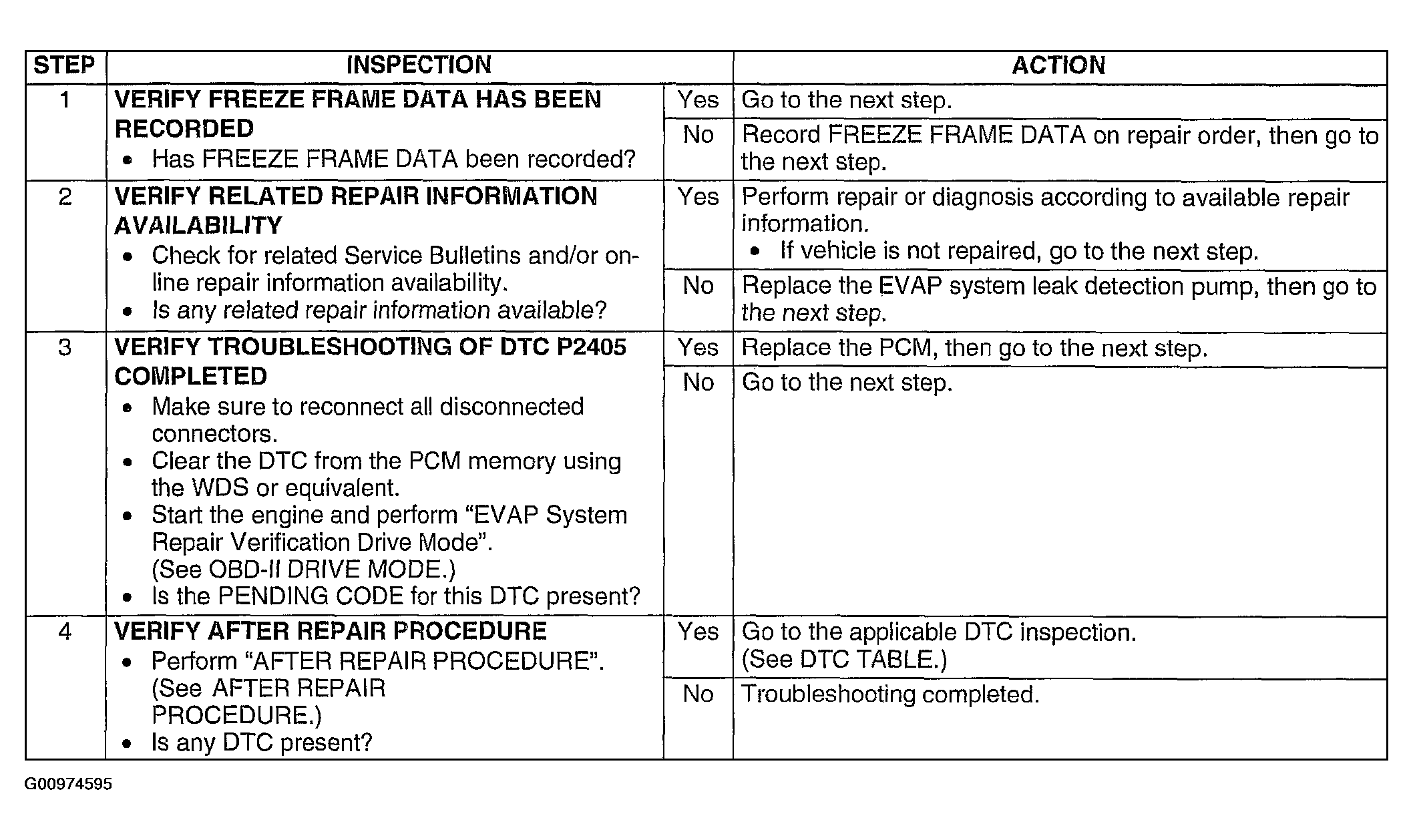

Fig 1: DTC P2405: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
