Section 249 (Instrumentation/Driver Info)
›
Instrument Cluster Input/Output Check Mode
›
Check Code Inspection
›
Check Code 13
Check Code 13
WARNING:
This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

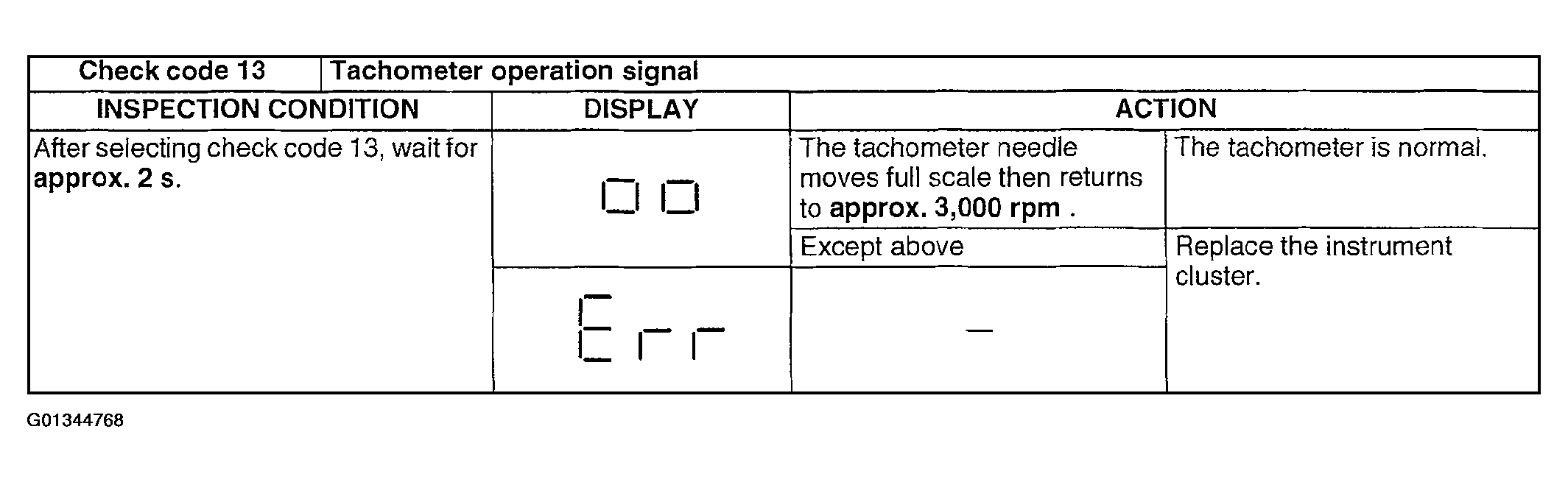

Fig 1: Check Code Inspection - Check Code 13
Courtesy of MAZDA MOTORS CORP.
