Home › Mazda › 2004 › 3 i, Automatic › Repair and Diagnosis › Restraints › Restraints Control Systems › Seat Belt System › Location Index

Location Index

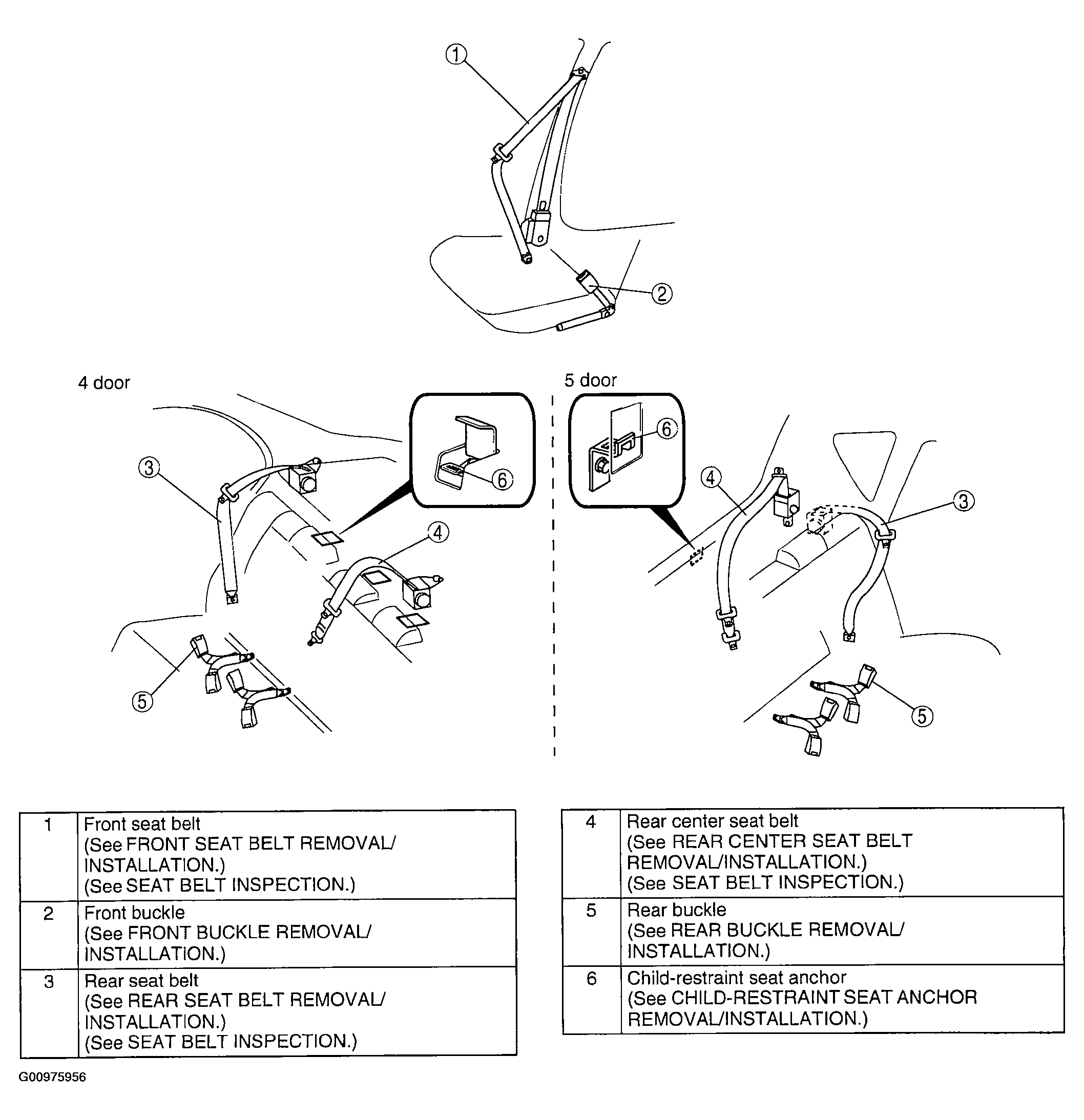

Fig 1: Seat Belt Location Index
G00975956Courtesy of MAZDA MOTORS CORP.
