Specification (Unloaded)

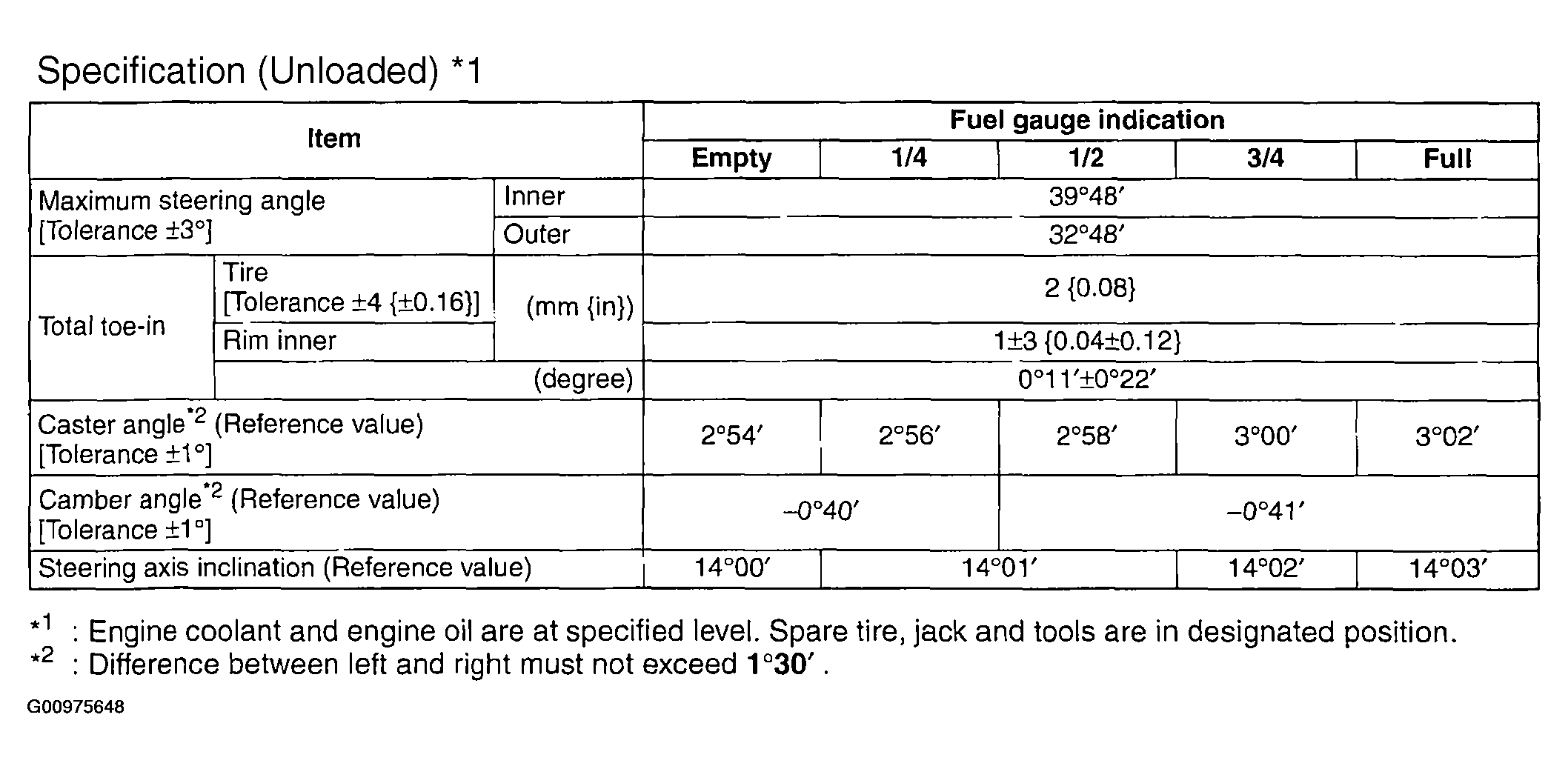

Fig 1: Specification - Front Wheel Alignment
G00975648Courtesy of MAZDA MOTORS CORP.
NOTE: Total toe-in measuring position
Fig 2: Measuring Toe-In
G00975649Courtesy of MAZDA MOTORS CORP.
