Specification (Unloaded)

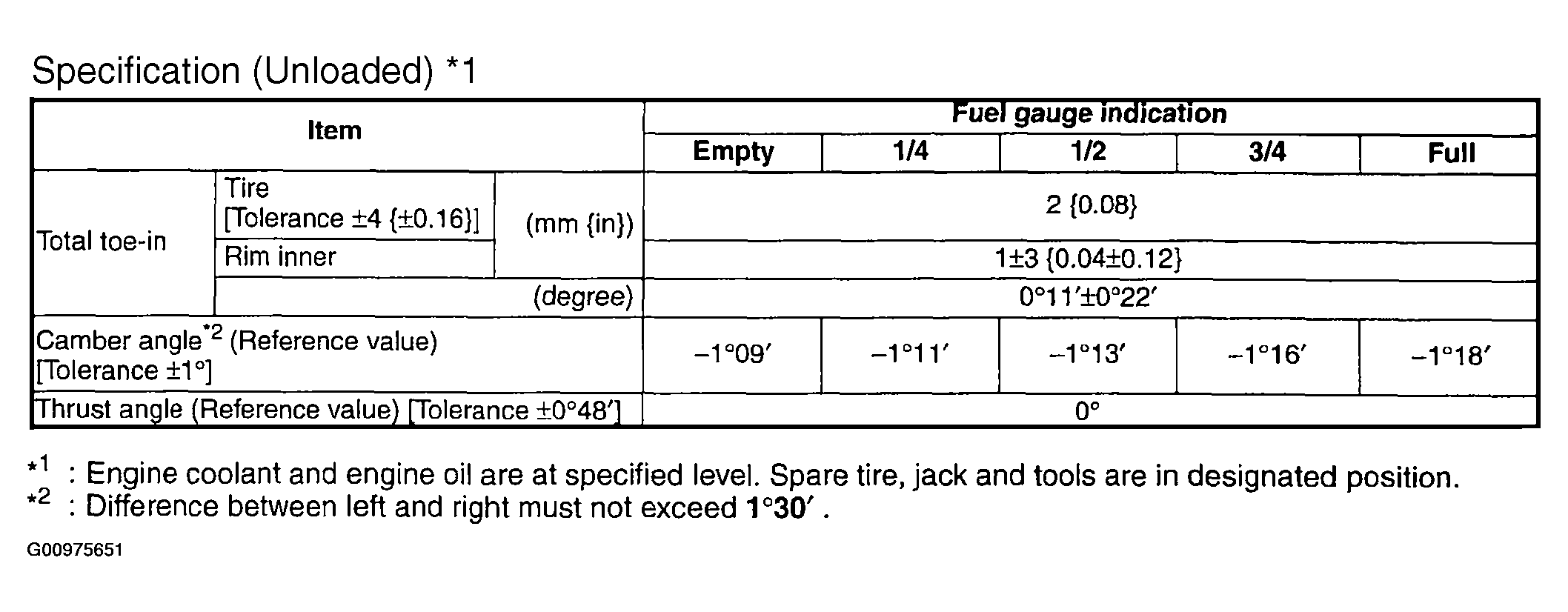

Fig 1: Specification - Rear Wheel Alignment
G00975651Courtesy of MAZDA MOTORS CORP.
NOTE: Total toe-in measuring position
Fig 2: Measuring Toe-In
G00975652Courtesy of MAZDA MOTORS CORP.
